Brand: Infitek | Category: Scientific & Laboratory Equipment

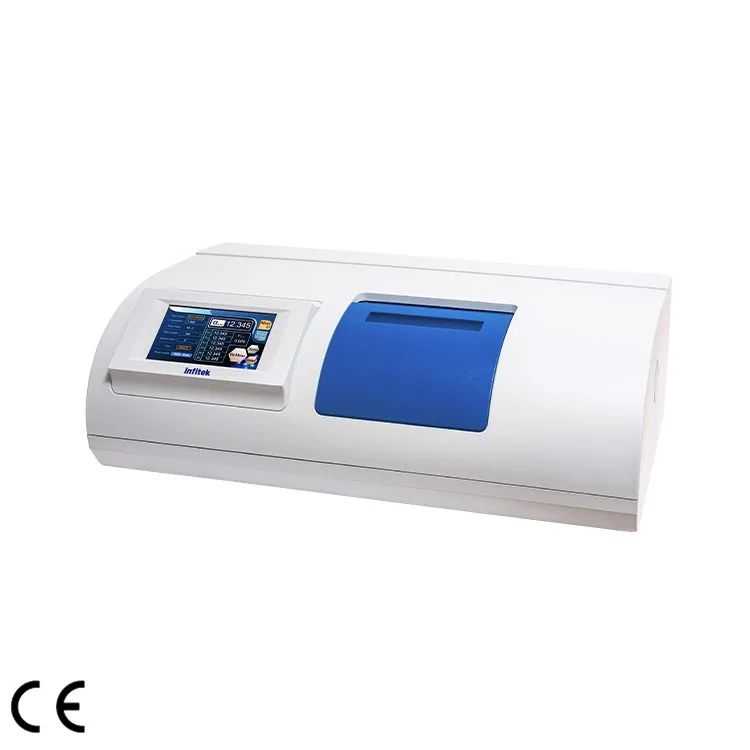

Infitek Automatic Polarimeter, POL Series is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: POL-2P, POL-1P, POL-3, POL-2S, POL-2B. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | |||||
|---|---|---|---|---|---|
| Model | POL-2P | POL-1P | POL-3 | POL-2S | POL-2B |
| Specification | Specification | Specification | Specification | Specification | Specification |
| Measuring scale | Optical Rotation; Specific Rotation; Concentration; International Sugar Scale | Optical Rotation; Specific Rotation; Concentration; International Sugar Scale | Optical Rotation; Specific Rotation; Concentration; International Sugar Scale | Optical Rotation; International Sugar Scale | Optical Rotation |
| Measuring range | ±45° (OR); ±120°Z (ISS) | ±45° (OR); ±120°Z (ISS) | ±45° (OR); ±120°Z (ISS) | ±45° (OR); ±120°Z (ISS) | ±45° (OR) |
| Accuracy | ±0.01° (-15°≤OR≤+15°); ±0.02° (OR<-15° or OR>+15°) | ±0.01° (-15°≤OR≤+15°); ±0.02° (OR<-15° or OR>+15°) | ±(0.01+measuring value×0.05%)° | ±(0.01+measuring valuex0.05%)° (OR); ±(0.03+measuring valuex0.05%)°Z (ISS) | ±(0.01+measuring valuex0.05%)° (OR) |
| Repeatability | ≤0.002° | ≤0.002° | ≤0.003° | ≤0.002° | ≤0.01° |
| Min. transmission | 1% | 1% | 10% | 1% | 10% |
| Resolution | 0.001° (OR); 0.01°Z (ISS) | 0.001° (OR); 0.01°Z (ISS) | 0.001° (OR); 0.001°Z (ISS) | 0.001° (OR); 0.01°Z (ISS) | 0.002° (OR) |
| Available wavelenght | 589nm | 589nm | 589nm | 589nm | 589nm |
| Temperature control range | Peltier temperature control: 15℃ to 30℃ | / | / | / | / |
| Temperature accuracy | ±0.5℃ | / | / | / | / |
| Engineering | Engineering | Engineering | Engineering | Engineering | Engineering |
| Light source | LED (100,000 hours lifespan); Interference filter | LED (100,000 hours lifespan); Interference filter | LED; Interference filter | LED; Interference filter | LED; Interference filter |
| Sample cell length | Standard:; 100mm (regular); 200mm (regular); 100mm (temperature control); Optional:; 50mm (regular); 200mm (temperature control) | Standard:; 100mm (regular); 200mm (regular); Optional:; 50mm (regular) | Standard:; 100mm (regular); 200mm (regular); Optional:; 50mm (regular) | Standard:; 100mm (regular); 200mm (regular); Optional:; 50mm (regular) | Standard:; 100mm (regular); 200mm (regular); Optional:; 50mm (regular) |
| Technical data | Technical data | Technical data | Technical data | Technical data | Technical data |
| Display | 7″ color LCD touchscreen | 7″ color LCD touchscreen | Color LCD touchscreen | 5″ LCD | 5″ LCD |
| Communication interface | RS232, USB | RS232, USB | RS232, USB | RS232 | RS232 |
| Connect PC | Yes | Yes | Yes | / | Yes |
| Printer (Optional) | Thermal printer; Stylus printer | Thermal printer; Stylus printer | Stylus printer | Thermal printer | / |
| Power supply | 220V±22V, 50Hz±1Hz, 200W | 220V±22V, 50Hz±1Hz, 200W | 220V±22V, 50Hz±1Hz, 150W | 220V±22V, 50Hz±1Hz, 150W | 220V±22V, 50Hz±1Hz, 150W |
| Product dimensions (L×W×H) | 710mm×400mm×240mm | 710mm×400mm×240mm | 605mm×370mm×260mm | 605mm×370mm×260mm | 605mm×370mm×260mm |
| Package dimensions (L×W×H) | 840mm×530mm×520mm | 840mm×530mm×520mm | 750mm×510mm×510mm | 750mm×550mm×550mm | 750mm×550mm×550mm |
| Net weight | 28kg | 28kg | 21kg | 21kg | 21kg |
| Gross weight | 43kg | 43kg | 33kg | 34kg | 34kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
