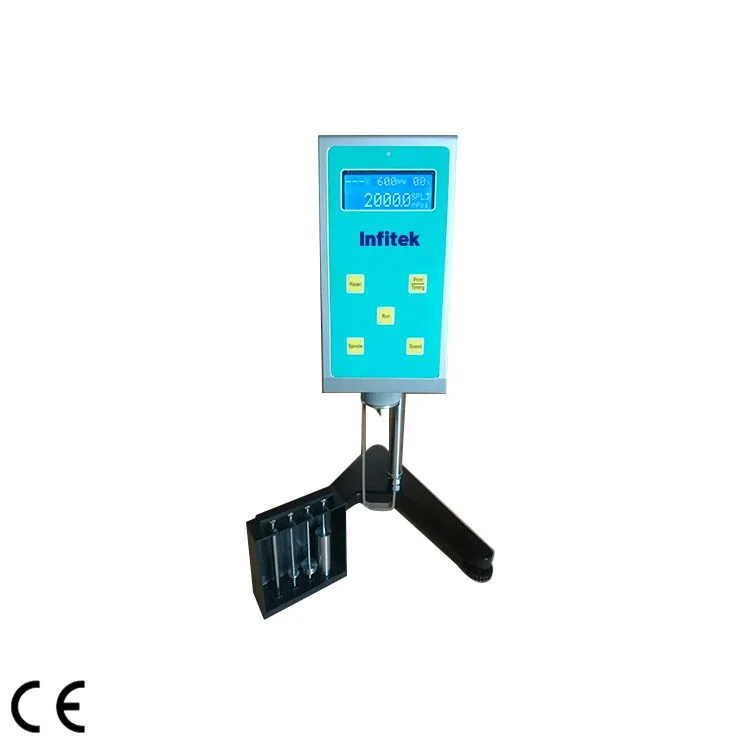

Infitek Digital Viscometer, VSC-N Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Digital Viscometer, VSC-N Series is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: VSC-N4, VSC-N5, VSC-N8. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Optional matching Thermostatic baths A-LC1008 Refrigerant, environmentally friendly R134a; Packing weight: 28kg; Size: 586*485*495mm A-RC0508 Packing weight: 20.5kg; Size: 586*485*495mm |
| Model | VSC-N4 | VSC-N5 | VSC-N8 |
|---|---|---|---|
| Measuring Range（mPa·s） | 20~2,000,000 | 20~100,000 | 20~2,000,000 |
| Rotating Speed(RPM) | Eight adjustable speed:0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | Four adjustable speed:6, 12, 30, 60 | Eight adjustable speed:0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
| Number of Spindles | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code L1, L2, L3, L4) are equipped with the product |
| Accuracy | ±5% relative error | ±1% full scale range in use | ±1% full scale range in use |
| Return Capacity | ±1% relative error | ±0.5% full scale range in use | ±0.5% full scale range in use |
| Power | Power adapter (input: 100-240V，50/60Hz) | Power adapter (input: 100-240V，50/60Hz) | Power adapter (input: 100-240V，50/60Hz) |
| LCD screen display | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. |
| Package Dimension (W*D*H)(mm) | 420*370*400 | 420*370*400 | 420*370*400 |
| Weight | 8kg | 8kg | 8kg |
| digital viscosity meter | 1 pce | ascending and falling rack | 1 set |
|---|---|---|---|
| standard spindle | 1 set | power adapter | 1 pce |
| protective frame of spindle | 1 pce | spanner | 1 pce |
| Seat and leveling feet | 1 set | RS232 standard output interface | 1 pce |
Manufacturer catalogue checked 2026-09-28.
