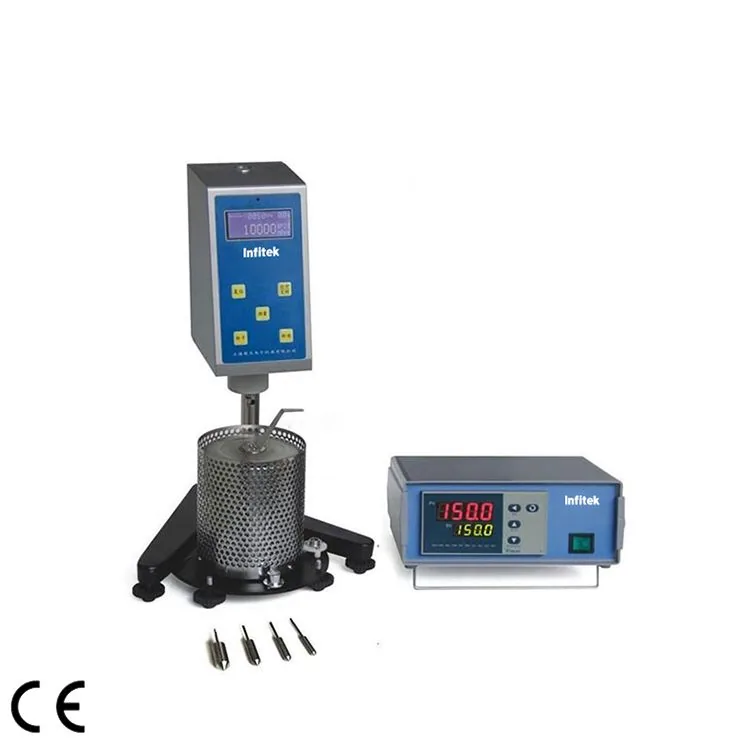

Infitek Digital Viscometer, VSC-H Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Digital Viscometer, VSC-H Series is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: VSC-H, VSC-HA, VSC-H1, VSC-H2, VSC-H1-1, VSC-H1-2. Compare the remaining models in the specification tables. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Optional matching Thermostatic baths A-LC1008 Refrigerant, environmentally friendly R134a; Packing weight: 28kg; Size: 586*485*495mm A-RC0508 Packing weight: 20.5kg; Size: 586*485*495mm |
| Model | VSC-H | VSC-HA | VSC-H1 | VSC-H1 | VSC-H1 | VSC-H2 | VSC-H2 | VSC-H2 |
|---|---|---|---|---|---|---|---|---|
| Model | VSC-H | VSC-HA | VSC-H1-1 | VSC-H1-2 | VSC-H1-3 | VSC-H2-1 | VSC-H2-2 | VSC-H2-3 |
| Measuring Range（mPa·s） | 50～200,000 | 50～10,000,000 | 10～1,000,000 | 100～1,0000,000 | 800～80,000,000 | 5～1,000,000 | 50～10,000,000 | 400～80,000,000 |
| Rotating Speed (RPM) | 5, 10, 20, 50, 100 | 0.1～200 (Stepless Gear) | 0.1～99.9（Stepless Gear） | 0.1～99.9（Stepless Gear） | 0.1～99.9（Stepless Gear） | 0.1～200 (Stepless Gear) | 0.1～200 (Stepless Gear) | 0.1～200 (Stepless Gear) |
| Measuring method | Manual measurement | Manual and automatic measurement | Manual measurement | Manual measurement | Manual measurement | Manual measurement | Manual measurement | Manual measurement |
| Number of Spindles | Spindles (Code21, 27, 28, 29) are equipped with the product | Spindles (Code21, 27, 28, 29) are equipped with the product | Spindles (Code21, 27, 28, 29) are equipped with the product | Spindles (Code21, 27, 28, 29) are equipped with the product | Spindles (Code21, 27, 28, 29) are equipped with the product | Spindles (Code21, 27, 28, 29) are equipped with the product | Spindles (Code21, 27, 28, 29) are equipped with the product | Spindles (Code21, 27, 28, 29) are equipped with the product |
| Accuracy | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use |
| Repeatability | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use |
| Sample capacity(m L) | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 | 10～20 |
| Temperature control range(℃) | 10℃ above ambient～300℃ | 10℃ above ambient～300℃ | 10℃ above ambient～300℃ | 10℃ above ambient～300℃ | 10℃ above ambient～300℃ | 10℃ above ambient～300℃ | 10℃ above ambient～300℃ | 10℃ above ambient～300℃ |
| Power | Power adapter (input: 220V 50Hz) | Power adapter (input: 220V 50Hz) | Power adapter (input: 220V 50Hz) | Power adapter (input: 220V 50Hz) | Power adapter (input: 220V 50Hz) | Power adapter (input: 220V 50Hz) | Power adapter (input: 220V 50Hz) | Power adapter (input: 220V 50Hz) |
| LCD screen display | Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.The temperature controller: Display setting temperature and actual measuring temperature。 | Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.The temperature controller: Display setting temperature and actual measuring temperature。 | Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.The temperature controller: Display setting temperature and actual measuring temperature。 | Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.The temperature controller: Display setting temperature and actual measuring temperature。 | Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.The temperature controller: Display setting temperature and actual measuring temperature。 | Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.The temperature controller: Display setting temperature and actual measuring temperature。 | Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.The temperature controller: Display setting temperature and actual measuring temperature。 | Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.The temperature controller: Display setting temperature and actual measuring temperature。 |
| Pakage Size(mm) | 2 boxes size:400*350*360, 400*350*550 | 2 boxes size:400*350*360, 400*350*550 | 2 boxes size:400*350*360, 400*350*550 | 2 boxes size:400*350*360, 400*350*550 | 2 boxes size:400*350*360, 400*350*550 | 2 boxes size:400*350*360, 400*350*550 | 2 boxes size:400*350*360, 400*350*550 | 2 boxes size:400*350*360, 400*350*550 |
| Total Weight(kg) | 15kg | 15kg | 15kg | 15kg | 15kg | 15kg | 15kg | 15kg |
Manufacturer catalogue checked 2026-09-28.
