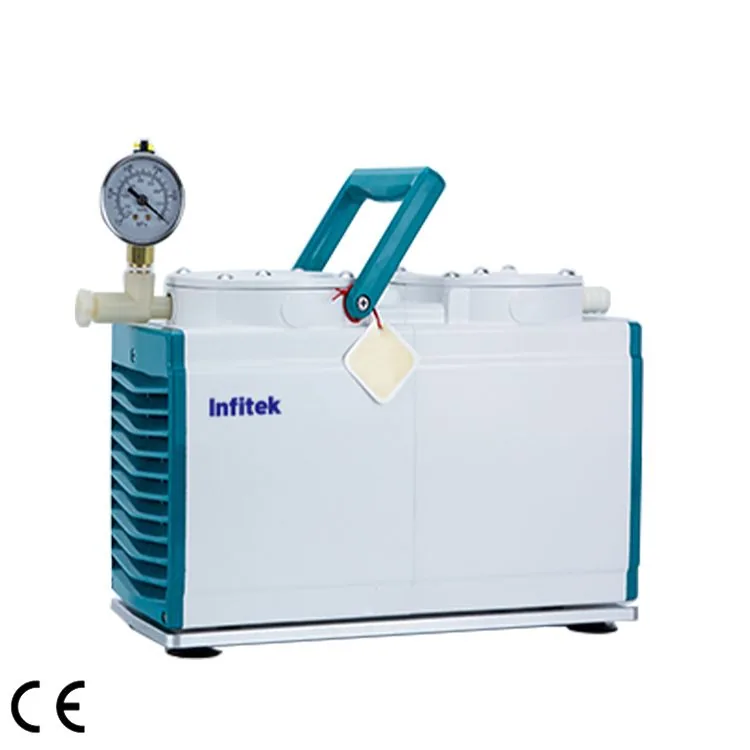

Infitek Diaphragm Vacuum Pump, VACP-D52/D102
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Diaphragm Vacuum Pump, VACP-D52/D102 is listed in VVON's laboratory pumps & gas generators range for Bangladesh. Published models: VACP-D52, VACP-D102. Match flow, pressure or vacuum, purity and connected-instrument requirements. For a quotation, send the connected instrument, flow, pressure or vacuum, purity and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | VACP-D52 | VACP-D102 |
|---|---|---|
| Pumping Speed (L/Min) | 30 | 60 |
| Ultimate Vacuum | 50mbar | 200mbar |
| Voltage | 220Vac,50Hz | 220Vac,50Hz |
| Power | 160W | 160W |
| Positive Pressure | ≥30Psi | |
| Air Inlet (mm) | φ6 | φ6 |
| Air Outlet (mm) | Muffler | φ6 |
| Operating Ambient Temperature(°C) | 7-40 | 7-40 |
| Pump Head | 2 | 2 |
| Pump body Temperature(°C) | <55 | <55 |
| Dimension(L×W×H) (mm) | 350x130x220 | 310x200x210 |
| Weight(Kg) | 10 | 10 |
| Diaphragm | Imported Rubber | Imported Rubber |
| Valve Plate | Imported Rubber | Imported Rubber |
| Noise(BD) | <60 | <60 |
| Note | Positive-negative pressure dual purpose | |
| Optional accessory | Retention bottle | Retention bottle |
Manufacturer catalogue checked 2026-09-28.
