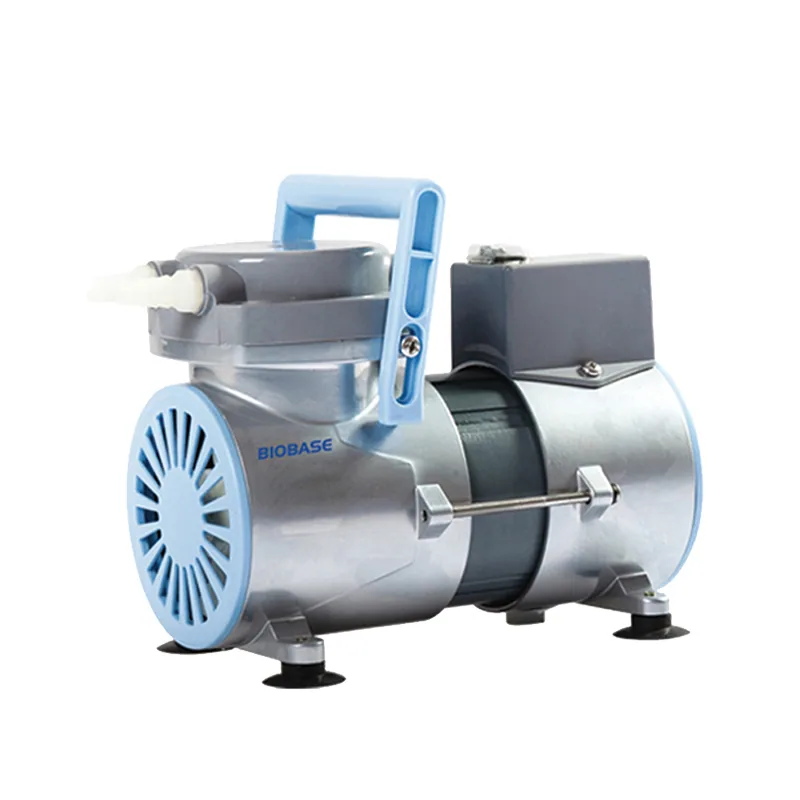

BIOBASE Laboratory Vacuum Pump GM-0.20 GM-0.5II GM-0.5IIP GM-0.5 GM-0.5P GM-0.33II GM-0.33IIP GM-1.0 GM-1.0P
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Laboratory Vacuum Pump GM-0.20 GM-0.5II GM-0.5IIP GM-0.5 GM-0.5P GM-0.33II GM-0.33IIP GM-1.0 GM-1.0P is listed in VVON's laboratory pumps & gas generators range for Bangladesh. Published models: GM-0.2, GM-0.5II GM-0.5IIP, GM-0.5; GM-0.5P, GM-0.33II; GM-0.33IIP, GM-1.0; GM-1.0P. Match flow, pressure or vacuum, purity and connected-instrument requirements. For a quotation, send the connected instrument, flow, pressure or vacuum, purity and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GM-0.2 | GM-0.5II GM-0.5IIP | GM-0.5; GM-0.5P | GM-0.33II; GM-0.33IIP | GM-0.33II; GM-0.33IIP | GM-1.0; GM-1.0P |
|---|---|---|---|---|---|---|
| Pump Head | 1 | 2 | 1 | 1 | 1 | 2 |
| Speed of Evacuation | 15L/Min | 30L/Min | 30L/Min | 20L/Min | 20L/Min | 60L/Min |
| Ultimate Pressure | 0.075Mpa | 0.095Mpa | 0.08Mpa | 0.08Mpa | 0.08Mpa | 0.08Mpa |
| Vacuum | 250mbar | 50mbar | 200mbar | 200mbar | 200mbar | 200mbar |
| Pressure | ≥30psi positive, negative pressure | Negative pressure | ≥30psi positive, negative pressure | Negative pressure | Negative pressure | ≥30psi positive, negative pressure |
| Inlet | φ6mm | φ6mm | φ6mm | φ6mm | φ6mm | φ6mm |
| Outlet | φ6mm | Silencer | φ6mm | Silencer | Silencer | φ6mm |
| Working Temp. | 7~40℃ | 7~40℃ | 7~40℃ | 7~40℃ | 7~40℃ | 7~40℃ |
| Body Temp. | <40℃ | <40℃ | <40℃ | <40℃ | <40℃ | <40℃ |
| Noise Level | <60dB | <60dB | <60dB | <60dB | <60dB | <60dB |
| Motor Power | 75W | 160W | 160W | 160W | 160W | 160W |
| Power Consumption | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| Diaphragm | / | Imported rubber | Imported rubber | Imported rubber | Imported rubber | Imported rubber |
| Valves | / | Imported rubber | Imported rubber | Imported rubber | Imported rubber | Imported rubber |
| Net Weight(kg) | 4 | 9 | 7 | 6.6 | 6.6 | 9 |
| Gross Weight(kg) | 4.44 | 10.25 | 8.4 | 8.17 | 8.17 | 10.38 |
| External Size(W*D*H)mm | 245*120*160 | 350*130*215 | 230*170*260 | 270*130*200 | 270*130*200 | 310*10*215 |
| Package Size(W*D*H)mm | 325*210*230 | 410*230*345 | 400*220*330 | 355*215*375 | 355*215*375 | 415*255*340 |
Manufacturer catalogue checked 2026-09-28.
