Brand: Infitek | Category: Scientific & Laboratory Equipment

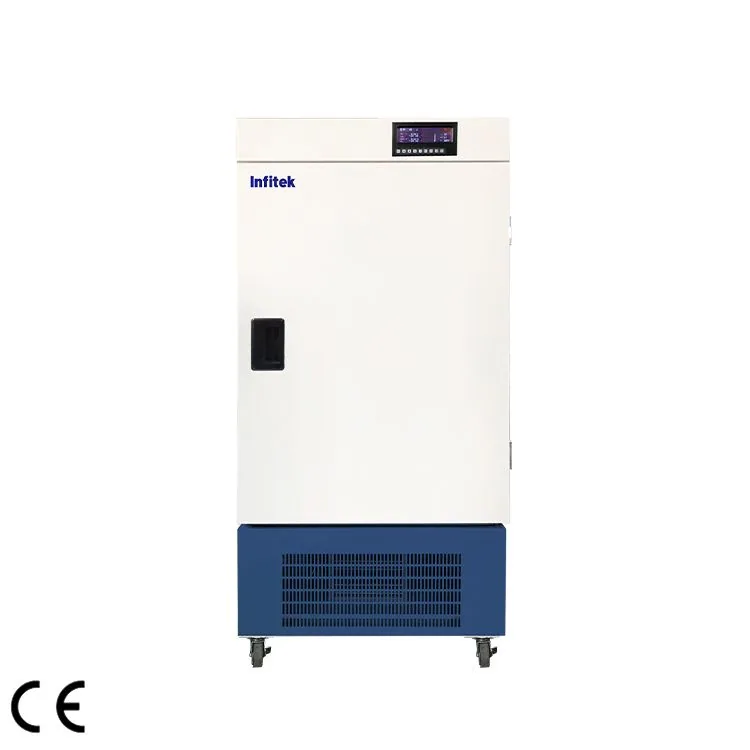

Infitek Cooling Biochemical Incubator, ICB-B-YB/YL Series is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-B103YB, ICB-B152YB, ICB-B253YB, ICB-B412YB, ICB-B722YB, ICB-B1022YB. Compare the remaining models in the specification tables. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-B103YB | ICB-B103YB | ICB-B152YB | ICB-B152YB | ICB-B253YB | ICB-B412YB | ICB-B412YB | ICB-B722YB | ICB-B722YB | ICB-B1022YB | ICB-B1022YB |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | ICB-B103YL | ICB-B103YL | ICB-B152YL | ICB-B152YL | ICB-B253YL | ICB-B412YL | ICB-B412YL | ICB-B722YL | ICB-B722YL | ICB-B1022YL | ICB-B1022YL |
| Capacity (L) | 103 | 103 | 152 | 152 | 253 | 412 | 412 | 722 | 722 | 1022 | 1022 |
| Circulation Mode | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) |
| Dimension (W*D*H) / Internal (mm) | 480*390*550 | 480*390*550 | 500*460*660 | 500*460*660 | 640*460*860 | 560*530*1390 | 560*530*1390 | 980*530*1390 | 980*530*1390 | 980*750*1390 | 980*750*1390 |
| Dimension (W*D*H) / External (mm) | 645*700*1255 | 645*700*1255 | 665*780*1360 | 665*780*1360 | 800*780*1570 | 1025*810*1735 | 1025*810*1735 | 1445*810*1735 | 1445*810*1735 | 1445*1030*1735 | 1445*1030*1735 |
| Temperature / Range (℃) | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; | YB Series: 0~65; YL Series: -10~65; |
| Temperature / Resolution (℃) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Fluctuation (℃) | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.3℃, Low temperature ±0.5℃ | High temperature ±0.5℃, Low temperature ±1℃ |
| Temperature / Uniformity (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±1 |
| Operating Ambient Temperature (℃) | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 |
| Shelves (Standard) | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Test Hole (mm) | φ40 | φ40 | φ40 | φ40 | φ40 | φ40 | φ40 | φ40 | φ40 | φ40 | φ40 |
| Electricity / Voltage/Frequency | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz |
| Electricity / Consumption (W) | 780 | 840 | 840 | 1200 | 1200 | 1200 | 1500 | 1500 | 2100 | 2100 | 2550 |
| Safety Protection / Refrigeration System | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. |
| Safety Protection / Others | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection. |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
