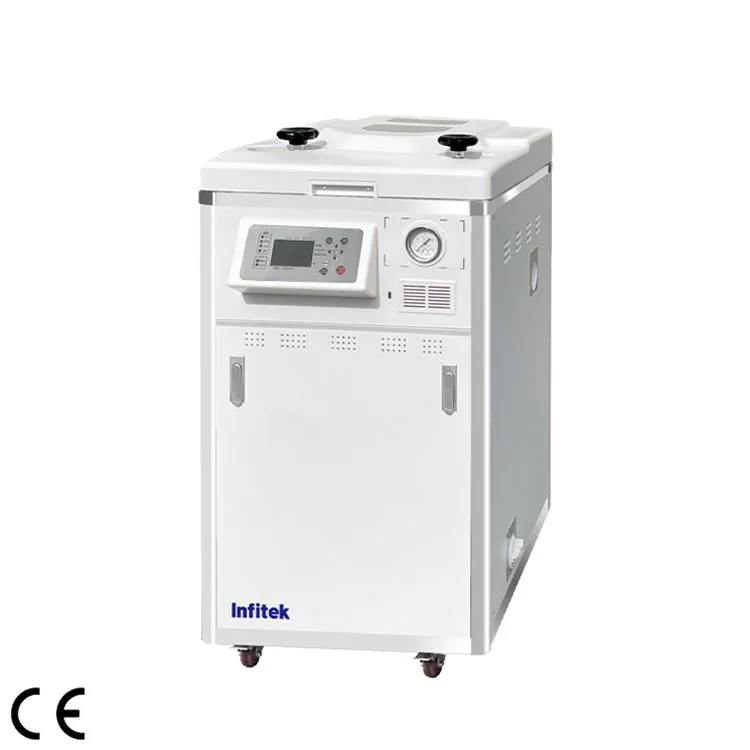

Infitek Class N Autoclave, STV-JL Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Class N Autoclave, STV-JL Series is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: STV-J60L, STV-J80L. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | STV-J60L | STV-J80L |
|---|---|---|
| Volume | 60L | 80L |
| Configuration | Standard | Standard |
| Sterilization Chamber Dimension | φ355*550mm | φ355*700mm |
| Basket Dimension | 335*360mm | 330*190mm, 330*360mm |
| Pot Wall Thickness | 2.0mm (Reference) | 2.0mm (Reference) |
| Temp. Setting Range | 50~134℃ | 50~134℃ |
| Time Setting Range | 0-99h | 0-99h |
| Max. Design Temperature | 138℃ | 138℃ |
| Rated Working Pressure | 0.217MPa | 0.217MPa |
| Design Pressure | 0.24MPa | 0.24MPa |
| Electricity | 220V/50Hz | 220V/50Hz |
| Power | 3.5kW | 3.5kW |
| External Dimension | 530*620*1005 mm | 530*620*1155mm |
| Gross Weight | 98kg | 110kg |
| Package Dimension | 790*670*1160 mm | 790*670*1320mm |
Manufacturer catalogue checked 2026-09-28.
