Brand: EDIBON | Category: Scientific & Laboratory Equipment

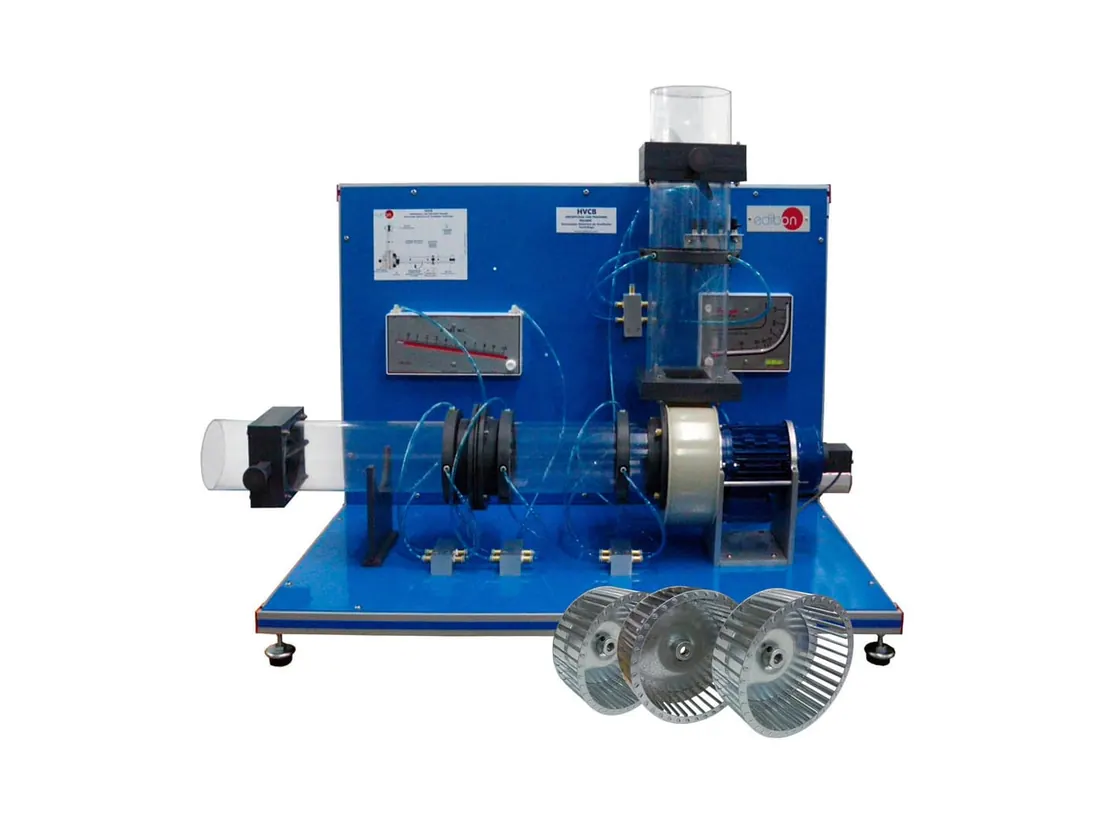

HVCB is a test bench for a centrifugal fan. Air flow, pressure rise, speed and power are measured across a throttled outlet so the fan characteristic and efficiency curves can be plotted. A computer controlled version, HVCC, is also published.
| Parameter | Value |
|---|---|
| Dimensions | 1200 x 600 x 700 mm approx |
| Weight | 60 kg approx |
| Centrifugal fan with speed regulation, speed range | 0 to 3000 rpm |
| Aspiration transparent duct inner diameter | 114 mm |
| Discharge transparent duct inner diameter | 144 mm |
| Manometer to measure the differential pressure between inlet and outlet, range | 0 to 3 inches H2O (0 to 76 mm H2O) |
