FME03 — Bernoulli's Theorem Demonstration

Brand: EDIBON | Category: Scientific & Laboratory

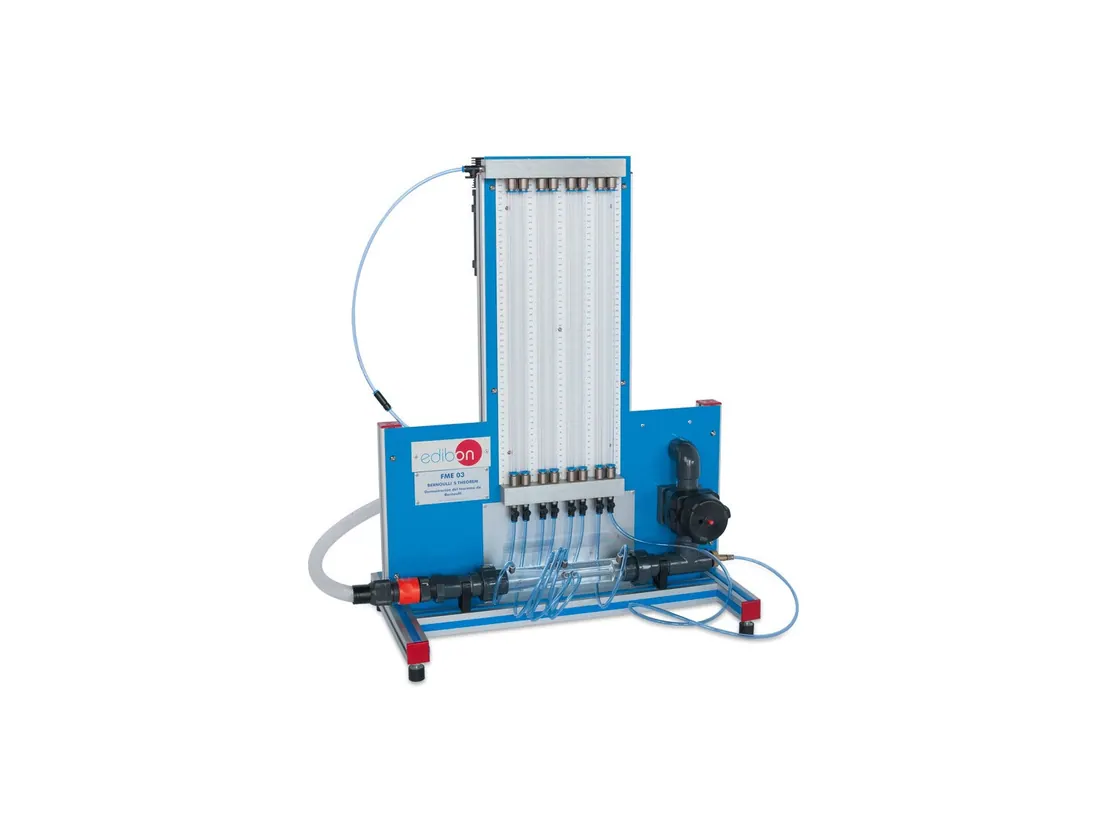

The EDIBON FME03 Bernoulli's Theorem Demonstration unit consists of a transparent circular-section pipe shaped as a truncated cone with seven pressure taps connected to a water manometer. A movable Pitot tube probe traverses the full length of the conduit to measure dynamic pressure at each section. The unit can be reversed to study both convergent-to-divergent and divergent-to-convergent flow configurations. A control valve at the outlet adjusts flow rate and pressure. The unit mounts directly on the FME00 Hydraulics Bench via quick-coupling inlet fitting and adjustable levelling legs.

Technical Specifications

Parameter	Value
Product code	FME03
Pipe shape	Truncated cone (Venturi profile)
Pressure taps	7 taps connected to water manometer
Probe	Pitot tube (movable along conduit length)
Flow configurations	Convergent-divergent and divergent-convergent (reversible ends)
Flow control	Control valve at outlet
Mounting	Mounts on FME00 Hydraulics Bench
Levelling	Adjustable legs
Certification	CE marked

Key Features

• Transparent pipe for direct visual observation of flow behaviour
• Seven simultaneous pressure readings along the Venturi profile
• Pitot tube probe for dynamic pressure measurement at each section
• Reversible end caps for convergent and divergent flow studies
• Adjustable outlet valve for flow rate and pressure control
• Quick-coupling inlet for tool-free mounting on FME00 bench

Applications

• Demonstration of Bernoulli's theorem and energy conservation in fluids
• Determination of Venturi tube cross-sections and velocity profiles
• Comparison of static and total pressure along a flow path
• Fluid mechanics laboratory courses (mechanical and civil engineering)
• Calibration of flow measurement devices
