Brand: EDIBON | Category: Scientific & Laboratory Equipment

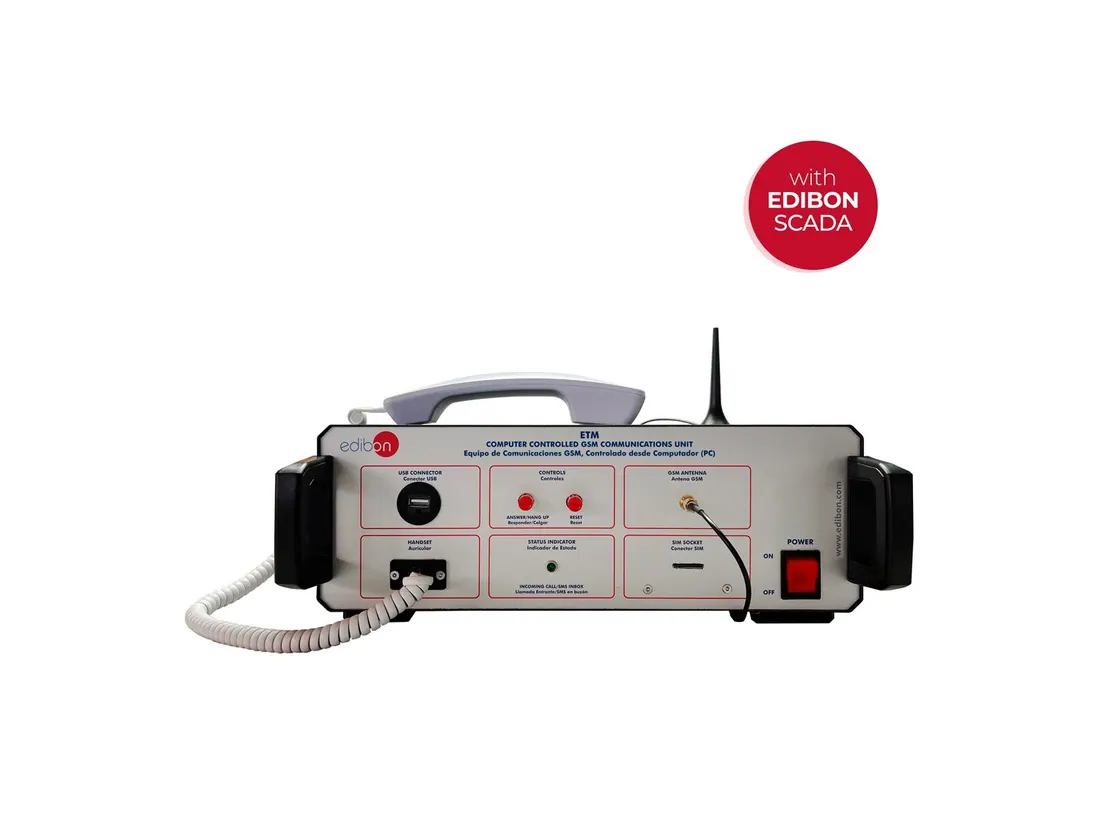

A cellular mobile trainer that works with a computer through a USB connection. Students see the AT commands exchanged with the SIM card as each mobile service is used, and study how SIM memory is managed for the SMS inbox and phonebook.
| Parameter | Value |
|---|---|
| Specification | GSM transceiver at 850 MHz and 900 MHz, E-GSM, output power class 4 (2 W) |
| Specification | GSM transceiver at 1800 MHz and 1900 MHz, output power class 1 (1 W) |
| Specification | Fully compliant with ETSI GSM phase 2 plus normal MS |
| Specification | GPRS class 10, SIM interface 1.8 V and 3 V |
| Specification | GSM 900 and 1800 antenna with 2.6 m cable, SMA connector |
| Specification | Telephone handset with RJ-11 connector, two control buttons and status LED |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
A computer controlled trainer for satellite telecommunication systems. Three blocks reproduce the ground transmitter station, the active satellite repeater and the ground receiver station, so students can follow the uplink and downlink signal chain and insert faults.
A unit for studying digital switching in telephony networks. It reproduces a time switch with one inlet and one outlet PCM path, so students can follow connection set up, channel assignment and traffic management in a digital exchange.
A working radar teaching system with interface unit, rotating antenna, GPS module, tripod and mobile cart for outdoor practicals. Students measure range and bearing of static and moving objects and work with operating modes, sensitivity control, clutter suppression and guard zones.
