Brand: EDIBON | Category: Scientific & Laboratory Equipment

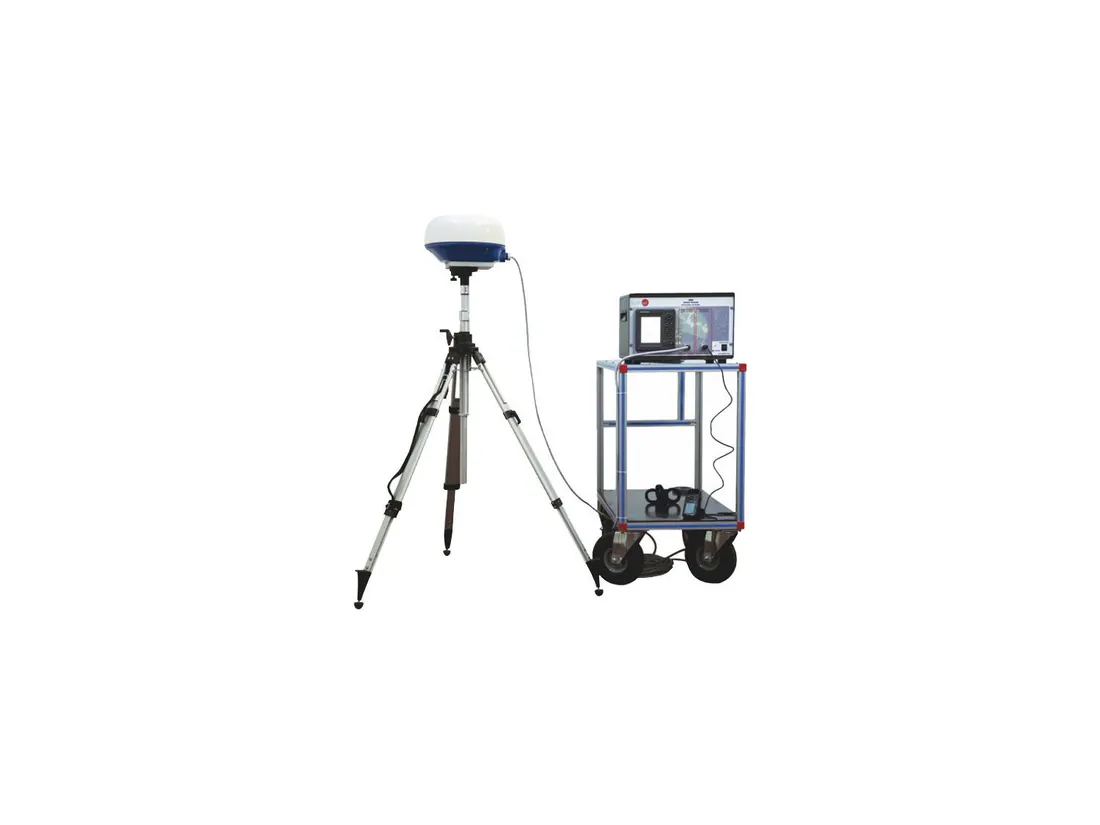

A working radar teaching system with interface unit, rotating antenna, GPS module, tripod and mobile cart for outdoor practicals. Students measure range and bearing of static and moving objects and work with operating modes, sensitivity control, clutter suppression and guard zones.
| Parameter | Value |
|---|---|
| Specification | Directional micro-strip patch array antenna, horizontal polarisation, frequency 9.4 GHz (X band) |
| Specification | Antenna rotation speed 24, 31 or 41 rpm nominal, auto selected according to range |
| Specification | Horizontal beamwidth less than 6.2 degrees, vertical beamwidth 25 degrees |
| Display unit | 6 inch monochrome LCD, resolution 240 x 320 pixels |
| Battery system | nominal voltage 12 VDC, capacity 24 Ah, with charger inside the interface unit |
| Specification | GPS module accuracy 15 m, DGPS (WAAS) accuracy 3 m |
