Brand: EDIBON | Category: Scientific & Laboratory Equipment

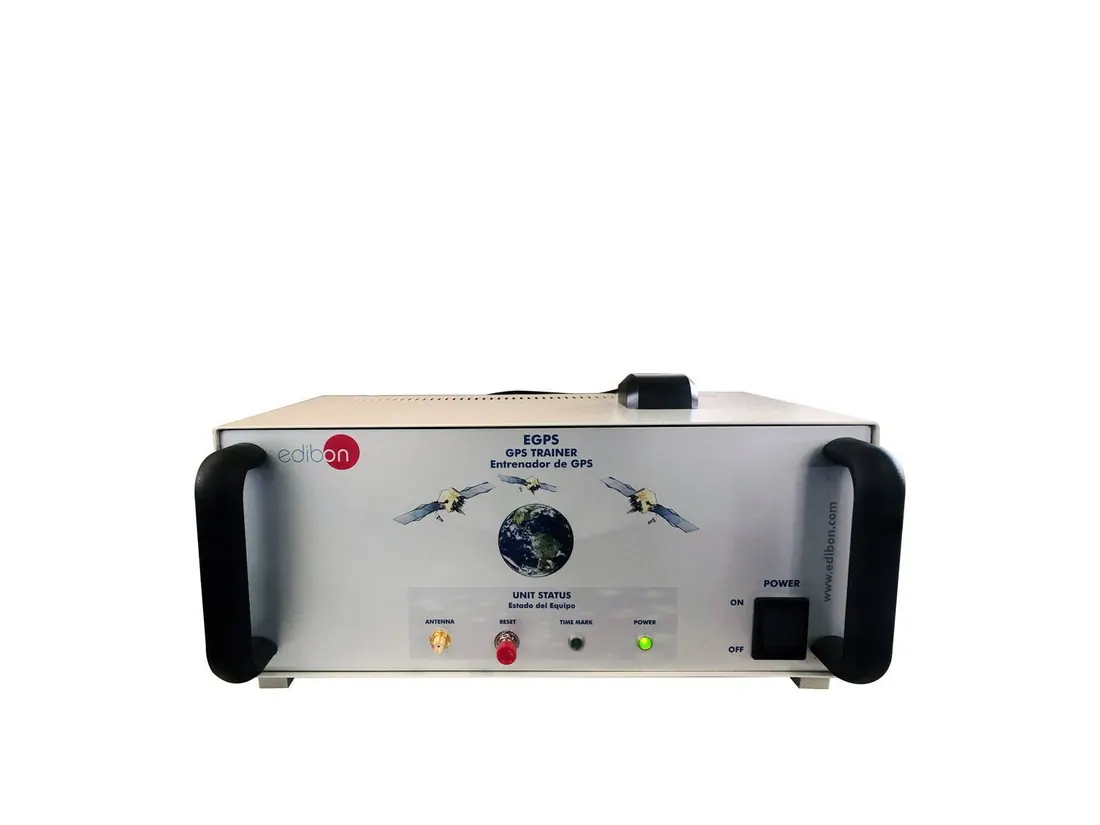

A unit for studying global positioning systems. It pairs a GPS receiver interface with status indicators and an active antenna, connects to a computer over USB, and lets students work through trilateration, receiver start modes and geographical azimuth.
| Parameter | Value |
|---|---|
| Specification | Receiver with 48 channels on the L1 band at 1575.42 MHz |
| Reception sensitivity | autonomous acquisition -148 dBm, navigation -163 dBm, tracking -165 dBm |
| Acquisition times | hot start TTFF under 1 s, warm and cold start TTFF under 35 s |
| Specification | Autonomous positional error 2.5 m |
| Specification | Active antenna with built in amplifier and magnetic base, 50 ohm, gain 28 dB |
| Specification | Computer control software using NMEA serial protocol version 1.83 |
