Brand: EDIBON | Category: Scientific & Laboratory Equipment

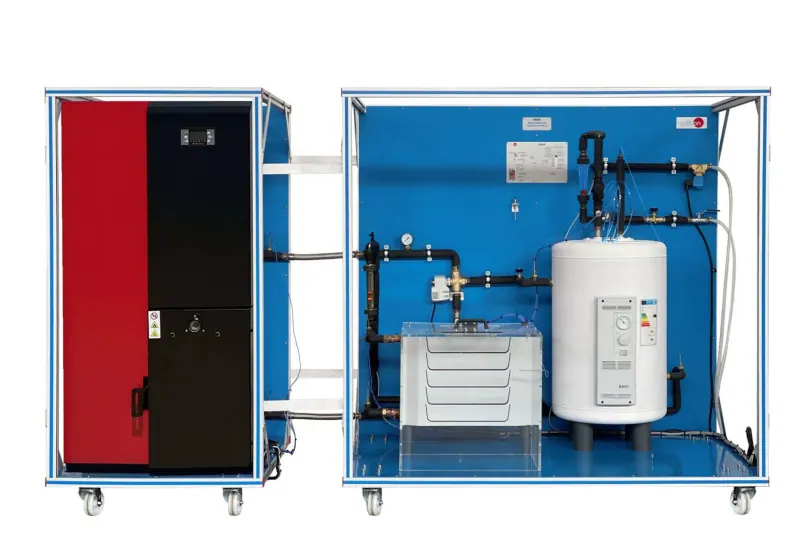

Pellet fired biomass boiler feeding two primary circuits, one to a domestic hot water tank and one to an air heater inside a methacrylate room. It shows how a solid biofuel installation produces both hot water and space heating.
| Parameter | Value |
|---|---|
| Specification | Biomass boiler of 16 kW working with pellet and other granulated fuels |
| Specification | Boiler body made of steel with a thickness of 5 mm |
| Specification | Burner in high temperature stainless steel with self-cleaning system |
| Specification | Ash extraction boxes and accessible cleaning and maintenance areas |
| Specification | Storage tank of 60 l capacity in AISI 316 Ti stainless steel with double jacket |
| Specification | Three way solenoid valve distributes heated water between the tank and the air heater |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
Anaerobic digestion unit with two packed digesters that can be run in one stage or in two, separating hydrolysis and acidogenesis from methanogenesis. Volumetric tanks and a methane sensor determine the quantity and quality of the biogas produced.
Designed by EDIBON, the Computer Controlled Biomass Process Unit "EBMC" allows the user to study heating systems and how to obtain domestic hot water using a biomass boiler.
Unit that converts the fatty acids of vegetable oils into biodiesel in two stages, mixing with stirring and then separating and washing the products. A balance and titration kit allow the yield and the quality of the biodiesel to be assessed.
