Brand: EDIBON | Category: Scientific & Laboratory Equipment

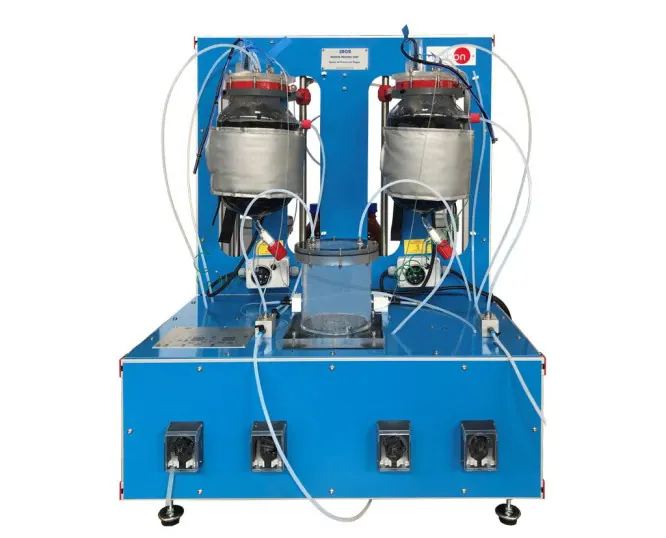

Anaerobic digestion unit with two packed digesters that can be run in one stage or in two, separating hydrolysis and acidogenesis from methanogenesis. Volumetric tanks and a methane sensor determine the quantity and quality of the biogas produced.
| Parameter | Value |
|---|---|
| Specification | Two packed anaerobic digesters for one stage or two stage operation |
| Specification | Heating blankets allow psychrophilic, mesophilic around 35 C and thermophilic around 55 C ranges |
| Specification | Four peristaltic pumps for feed, acid and base dosing and transfer between digesters |
| Specification | Two volumetric tanks measure the biogas produced by water displacement |
| Specification | Temperature sensor and pH meter in each digester |
| Specification | Methane sensor determines the methane concentration in the biogas |
