Brand: EDIBON | Category: Scientific & Laboratory Equipment

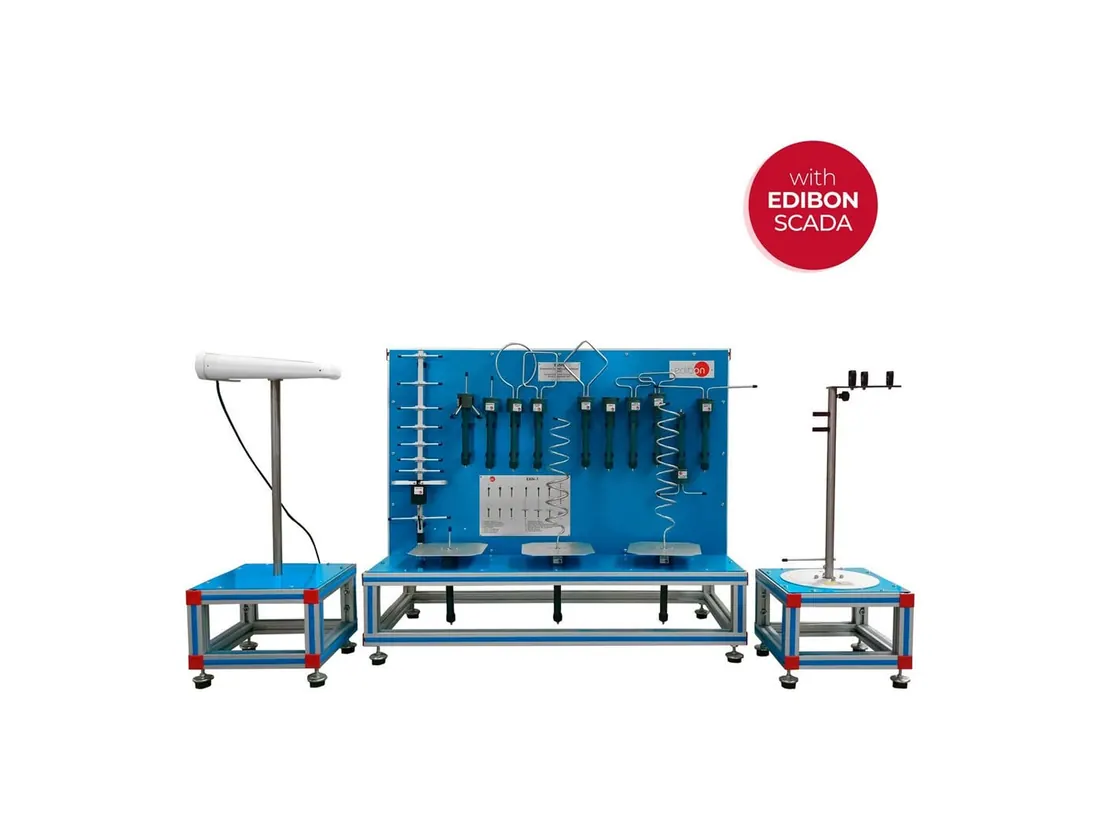

A computer controlled antenna measurement system with automatic 360 degree rotation of the transmitter tower. Students plot radiation patterns in azimuth and elevation and measure signal level, standing wave ratio, bandwidth, directivity and antenna gain from the computer.
| Parameter | Value |
|---|---|
| Specification | RF generator based on a voltage controlled oscillator, 600 MHz to 1700 MHz |
| SWR meter | frequency range 600 MHz to 2.5 GHz, insertion loss 0.1 dB |
| Spectrum analyser | frequency range 50 MHz to 6 GHz, level range -40 dBm to +23 dBm |
| Specification | Spectrum analyser accuracy +/- 0.18 dB at measurements below +18 dBm |
| Specification | Stepper motor controller for full automatic 360 degree rotation of the transmitter antenna |
| Specification | 50 ohm nominal impedance, SMA connectors to transmitter and receiver antennas |
