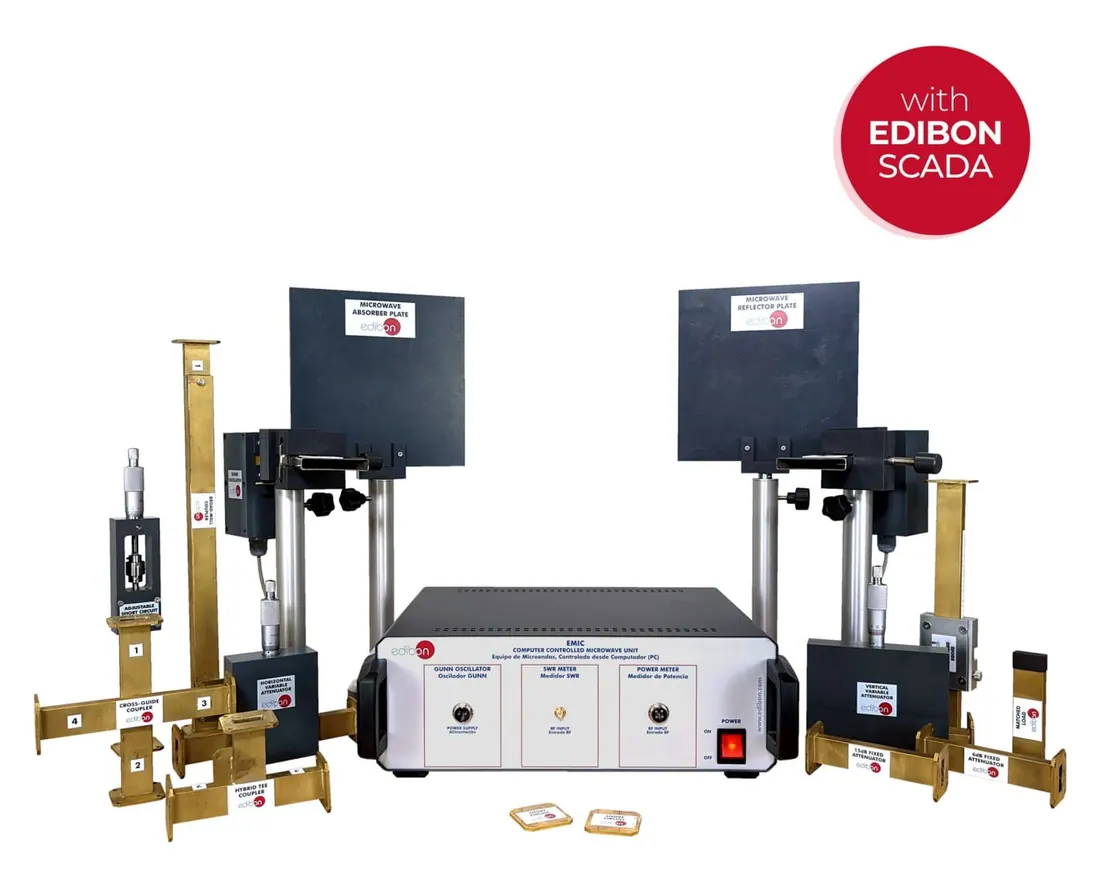

A computer controlled microwave test bench built from standard WR-90 waveguide components. Students measure power emission, attenuation, matched and mismatched loads, horn antenna gain, frequency, wavelength, standing wave ratio and impedance using the Smith chart.
| Parameter | Value |
|---|---|
| Specification | Power meter based on thermistor, frequency range 10 to 12000 MHz, level range -55 dBm to 18 dBm |
| Gunn oscillator | X band fixed at 10.525 GHz, power output 17 dBm |
| Slotted line | frequency range 2 to 18 GHz, maximum input power 100 mW, VSWR max 3.5:1 |
| Specification | Waveguide components in standard size WR-90, designed for 8.2 to 12.4 GHz (X band) |
| Directional couplers | broad wall three port and cross guide four port |
| Specification | Hybrid Tee 3 dB coupler plus 6 dB and 15 dB fixed attenuators |
