Brand: CH Instruments | Category: Nanotechnology

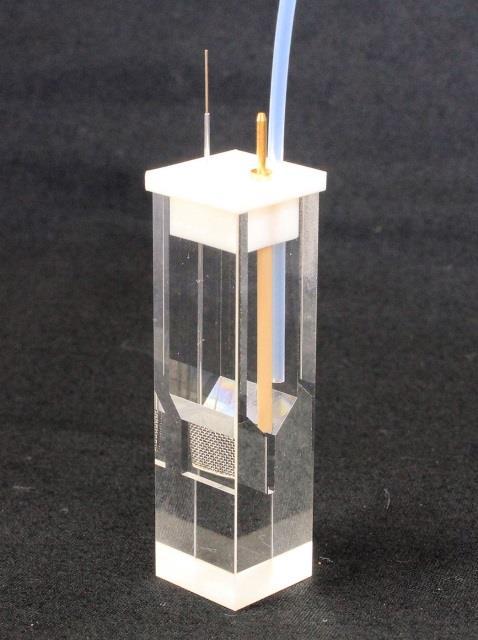

CHI140A is the spectroelectrochemical cell kit in the CH Instruments range, built around a thin layer quartz glass cell. The published kit sheet lists a platinum gauze working electrode, a platinum counter electrode, a Teflon cap and a 10 cm ETFE purge tube alongside the cell body. No reference electrode is included: CH Instruments name 012167 for aqueous Ag/AgCl work and 012171 for non-aqueous Ag/Ag+ work as the options.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about CH Instruments equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
Published in full as the CHI150 Saturated Calomel Electrode (SCE), this reference electrode works on Hg2Cl2 + 2e = 2Hg + 2Cl- and is quoted at 0.241 V against NHE at 25 C. Its saturated KCl filling solution meets the test solution through a ceramic liquid junction, and the published drawing gives a 9.0 mm diameter upper chamber 37 mm long over a 5.3 mm diameter lower stem 50 mm long. CH Instruments instruct users to top up with saturated KCl when the level falls and to store the electrode dipped in saturated KCl after use.
CHI135 is the 25 mm spacer CH Instruments publish for the CHI130 thin layer flow cell. It is the only accessory in this group listed in packs, the published unit being four per pack.
The CHI151 is the mercury / mercurous sulfate reference electrode in the CH Instruments range, running on Hg2SO4 + 2e = 2Hg + SO4 2- at a published 0.64 V against NHE at 25 C. Saturated K2SO4 is the filling solution and a ceramic liquid junction carries the contact, with the published drawing showing a 9.0 mm diameter chamber 37 mm long above a 5.3 mm diameter stem 50 mm long. CH Instruments direct users to refill with saturated K2SO4 and to store the electrode standing in the same solution.
