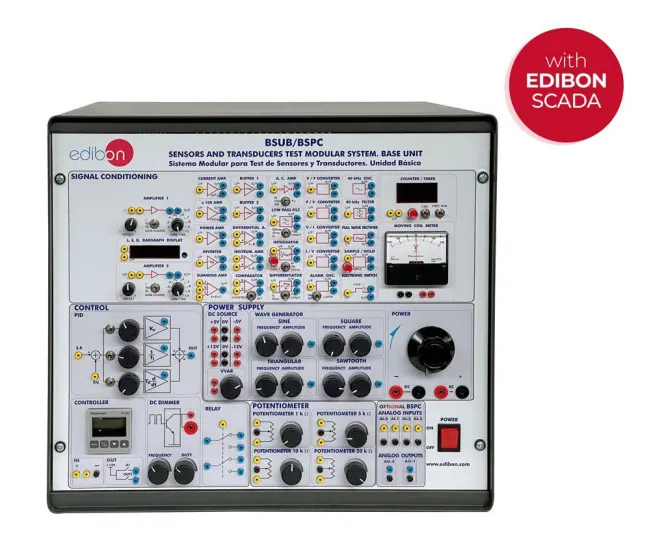

BSPC: Computer Controlled Base Unit for BS
Brand: EDIBON | Category: Scientific & Laboratory Equipment
The computer controlled base unit for the BS sensor modules. It provides the differential and instrumentation amplifier stages needed to condition transducer outputs before a data acquisition system can capture the signal accurately.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 490 x 450 x 470 mm |
| Weight | 30 Kg approx |
| Input voltage | 12 V max |
| Amplitude range | Adjustable +/- 10V |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
