Brand: EDIBON | Category: Scientific & Laboratory Equipment

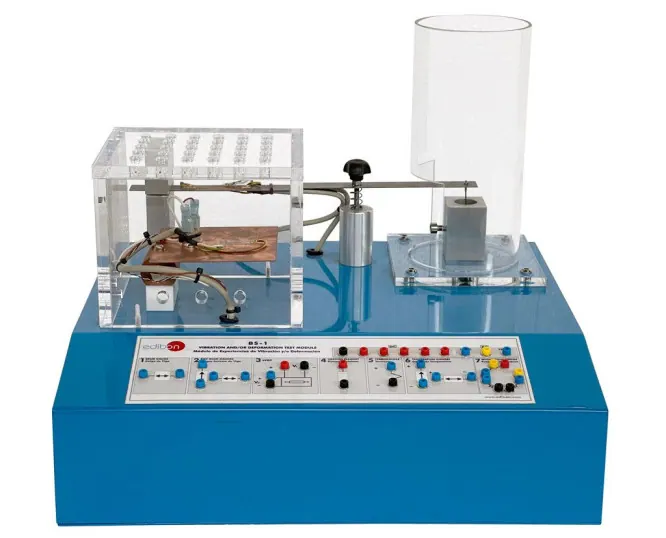

Teaches measurement of mechanical vibration and displacement. An elastic vibrating beam on the upper face of the module carries the sensors, so students excite the beam and record how each transducer responds to the movement.
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 405 x 300 x 470 mm |
| Weight | 7.5 Kg approx |
| Input voltage range | 10 to 24 VDC |
