Brand: BIOBASE | Category: Scientific & Laboratory Equipment

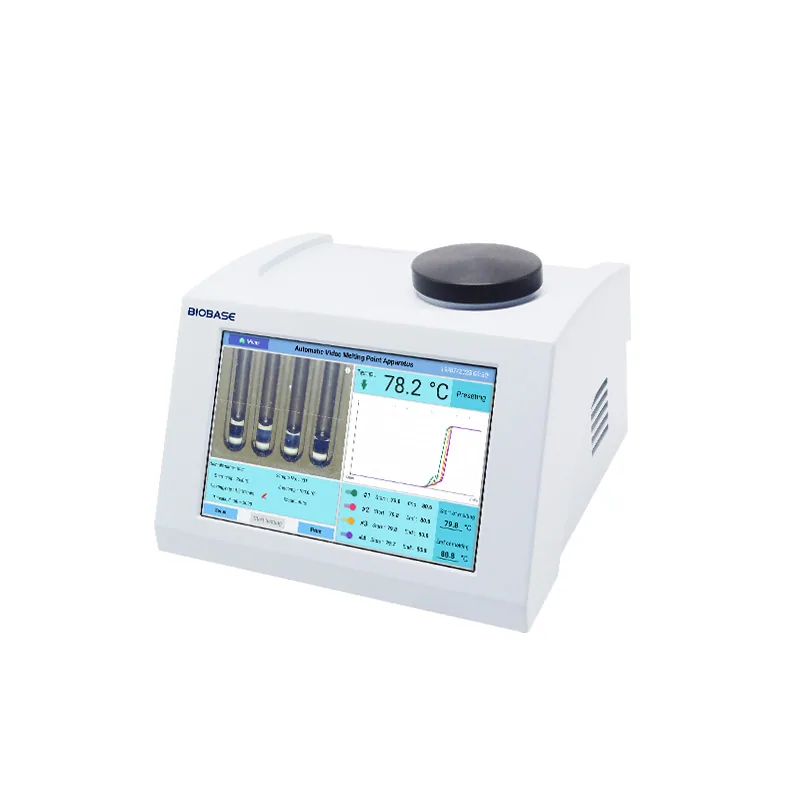

BIOBASE Video Melting Point Apparatus BK-P685 BK-P682 is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: BK-P685, BK-P682. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-P685 | BK-P682 |
|---|---|---|
| Measurement Range | R.T.~400℃ | R.T.~360℃ |
| Measurement Mode | Automatic/visual(high-definition camera, video caplure, playback monitoring) | Automatic/visual(high-definition camera, video caplure, playback monitoring) |
| Measurement Methods | 200 | 150 |
| Number of Users | 200 | 150 |
| Audit Trail | Optional(FDA) | Optional(FDA) |
| Electronic Signature | YES | YES |
| Resolution | 0.01℃ | 0.01℃ |
| Linear Heating-up Rate | 0.1℃/min~20℃/min | 0.1℃/min~20℃/min |
| Accuracy | ≤200℃±0.3℃; >200℃±0.5℃ | ≤200℃±0.3℃; >200℃±0.5℃ |
| Repeatability | 0.3℃(heating rate: 1.0℃/min) | 0.3℃(heating rate: 1.0℃/min) |
| Linear Heating Rate Error | ±5% | ±5% |
| Number of Capillary | 4 | 4 |
| Capillary Dimensions | Outer diameter: Φ1.4mm, inner diameter: Φ1.0mm, length: 90mm | Outer diameter: Φ1.4mm, inner diameter: Φ1.0mm, length: 90mm |
| Height of Sample | 3mm | 3mm |
| Operation System | Android | Android |
| Data Storage | 128G | 64G |
| Display | 10.1 inches touch screen | 10.1 inches touch screen |
| Graph Storage | 40000 | 20000 |
| Interface | 1*RS232, 3*USB, 1*RJ-45, WIFI | 1*RS232, 3*USB, 1*RJ-45, WIFI |
| Power Supply | AC 100~240V, 50/60Hz, 150W | AC 100~240V, 50/60Hz, 150W |
| Package Size(W*D*H) | 490*490*345mm | 490*490*345mm |
| Gross Weight | 7kg | 7kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
