Brand: BIOBASE | Category: Scientific & Laboratory Equipment

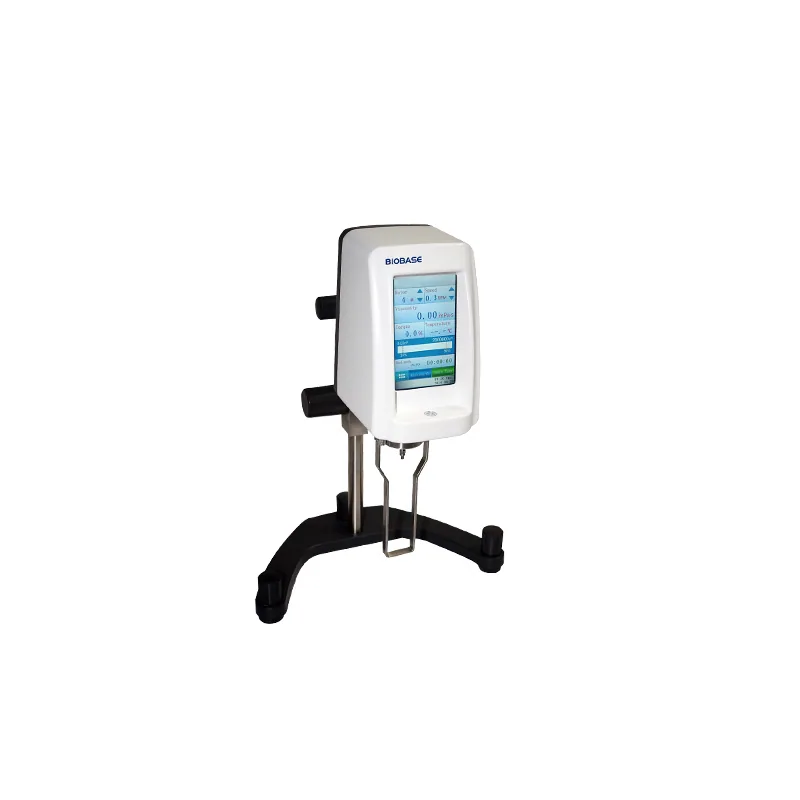

BIOBASE Touch Screen Digital Display Viscometer is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: BDV-5SC, BDV-8SC, BDV-9SC. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDV-5SC | BDV-8SC | BDV-9SC |
|---|---|---|---|
| Measured Range | 1~1*10^5mpa.s | 1~2*10^6mpa.s | 1~6*10^6mpa.s |
| Measurement Accuracy | ±2%(FS)(Newtonian liquid) | ±2%(FS)(Newtonian liquid) | ±2%(FS)(Newtonian liquid) |
| Repetitive Error | 1%(FS)(Newtonian liquid) | 1%(FS)(Newtonian liquid) | 1%(FS)(Newtonian liquid) |
| Display Accuracy | 0.01mpa.s | 0.01mpa.s | 0.01mpa.s |
| Single Measurement Automatic | When the measurement result is stable, the rotor stops automatically | When the measurement result is stable, the rotor stops automatically | When the measurement result is stable, the rotor stops automatically |
| Rotor Specification | Standard: 1#, 2#, 3#, 4# Optional: 0# | Standard: 1#, 2#, 3#, 4# Optional: 0# | Standard: 1#, 2#, 3#, 4# Optional: 0# |
| Rotor Speed(rpm) | 6, 12, 30, 60 | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | 0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
| Standard Accessory | Temperature sensor interface, computer USB interface, RS232 interface | Temperature sensor interface, computer USB interface, RS232 interface | Temperature sensor interface, computer USB interface, RS232 interface |
| Work Environment | Temperature: 5~35℃ Relative Humidity: ≤80% | Temperature: 5~35℃ Relative Humidity: ≤80% | Temperature: 5~35℃ Relative Humidity: ≤80% |
| Power Supply | AC110~240V, 50/60Hz, DC 12V | AC110~240V, 50/60Hz, DC 12V | AC110~240V, 50/60Hz, DC 12V |
| Package Size(W*D*H) | 200*440*480mm | 200*440*480mm | 200*440*480mm |
| Net Weight | 6.3kg | 6.3kg | 6.3kg |
| Gross Weight | 10.6kg | 10.6kg | 10.6kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
