Brand: BIOBASE | Category: Scientific & Laboratory Equipment

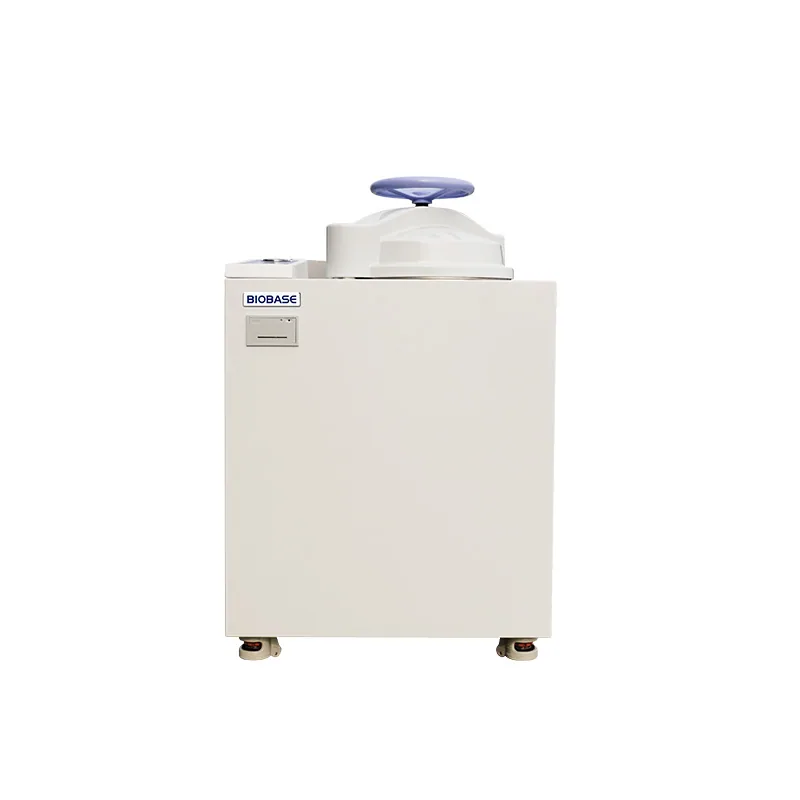

BIOBASE Vertical Pulse Vacuum Autoclave 50L 75L 100L is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BKQ-B50V, BKQ-B75V, BKQ-B100V. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKQ-B50V | BKQ-B75V | BKQ-B100V |
|---|---|---|---|
| Capacity | 50L | 75L | 100L |
| Designed Pressure | -0.1/0.28MPa | -0.1/0.28MPa | -0.1/0.28MPa |
| Working pressure | 0.23MPa | 0.23MPa | 0.23MPa |
| Designed Temp. | 150℃ | 150℃ | 150℃ |
| Working Temp. | 105~134℃ | 105~134℃ | 105~134℃ |
| Temp. Precision | 0.1℃ | 0.1℃ | 0.1℃ |
| Chamber Material | S30408 | S30408 | S30408 |
| Chamber Size | φ386*490mm | φ386*670mm | φ386*900mm |
| Basket | φ360*260mm, 1pc | φ360*360mm, 1pc | φ360*330mm, 2pc |
| Vacuum System | Eject vacuum system | Eject vacuum system | Eject vacuum system |
| Noise | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) |
| Altitude | ≤2000m, could be customized at 2000~3000m | ≤2000m, could be customized at 2000~3000m | ≤2000m, could be customized at 2000~3000m |
| Standard Accessories | Printer, mesh bottom basket | Printer, mesh bottom basket | Printer, mesh bottom basket |
| Consumption | 5.5KW | 5.5KW | 6.2KW |
| Power Supply | AC220V, 50Hz or 60Hz（Standard） AC110V, 60Hz（Optional） Wiring method：Air switch | AC220V, 50Hz or 60Hz（Standard） AC110V, 60Hz（Optional） Wiring method：Air switch | AC220V, 50Hz or 60Hz（Standard） AC110V, 60Hz（Optional） Wiring method：Air switch |
| External Size(W*D*H) | 700*610*1070mm | 700*610*1070mm | 700*610*1300mm |
| Net Weight | 127kg | 130kg | 150kg |
| Package Size(W*D*H) | 820*740*1380mm | 820*740*1380mm | 820*740*1530mm |
| Gross Weight | 142kg | 145kg | 170kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
