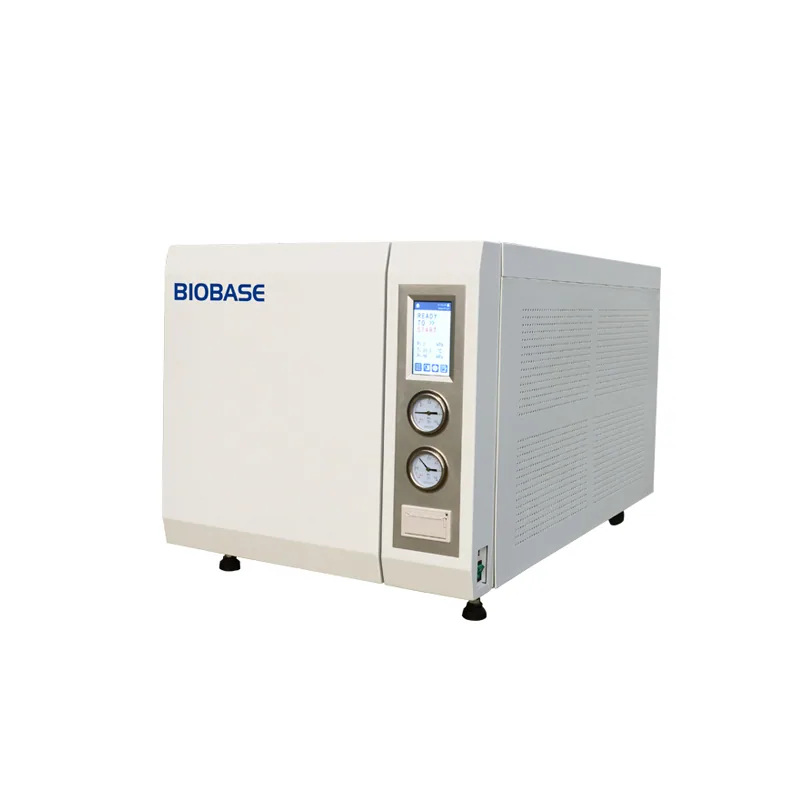

BIOBASE Table Top Class B Autoclave 45l 60l 80l BKM-Z45B BKM-Z60B BKM-Z80B
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Table Top Class B Autoclave 45l 60l 80l BKM-Z45B BKM-Z60B BKM-Z80B is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BKM-Z45B, BKM-Z60B, BKM-Z80B. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKM-Z45B | BKM-Z60B | BKM-Z60B | BKM-Z80B |
|---|---|---|---|---|
| Capacity | 45L | 60L | 60L | 80L |
| Door | Automatic | Automatic | Automatic | Automatic |
| Display | 5-inch LCD touch screen | 7-inch LCD touch screen | 7-inch LCD touch screen | 7-inch LCD touch screen |
| Designed Pressure | -0.1/0.3MPa | -0.1/0.3MPa | -0.1/0.3MPa | -0.1/0.3MPa |
| Working Pressure | 0.23Mpa | 0.23Mpa | 0.23Mpa | 0.23Mpa |
| Max Designed Temp. | 150℃ | 150℃ | 150℃ | 150℃ |
| Working Temp. | 105~134℃ | 105~134℃ | 105~134℃ | 105~134℃ |
| Temp. Precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Sterilization Time | 1~99min | 1~99min | 1~99min | 1~99min |
| Drying Time | 1~99min | 1~99min | 1~99min | 1~99min |
| Water Tank Capacity | 14L | 14L | 14L | 14L |
| Vacuum System | The high-pressure water pump is combined with the ejector for vacuum extraction, which utilizes the Venturi principle. | The high-pressure water pump is combined with the ejector for vacuum extraction, which utilizes the Venturi principle. | The high-pressure water pump is combined with the ejector for vacuum extraction, which utilizes the Venturi principle. | The high-pressure water pump is combined with the ejector for vacuum extraction, which utilizes the Venturi principle. |
| Chamber Material | S30408 | S30408 | S30408 | S30408 |
| Chamber Size | φ316*621mm | φ386*520mm | φ386*520mm | φ386*692mm |
| Altitude | ≤2000m; could be customized@ 2000~3000m | ≤2000m; could be customized@ 2000~3000m | ≤2000m; could be customized@ 2000~3000m | ≤2000m; could be customized@ 2000~3000m |
| Rack | 1 rack with 3 trays | 1 rack with 3 trays | 1 rack with 3 trays | 1 rack with 3 trays |
| Standard Accessories | Stainless Steel Tray, USB, printer, mobile sensor | Stainless Steel Tray, USB, printer, mobile sensor | Stainless Steel Tray, USB, printer, mobile sensor | Stainless Steel Tray, USB, printer, mobile sensor |
| Consumption | 5.8KW | 5.8KW | 6.2KW | 6.2KW |
| Power Supply | AC220V, 50/60Hz (Standard); AC110V, 50/60Hz(Optional) Wiring Method: Air switch | AC220V, 50/60Hz (Standard); AC110V, 50/60Hz(Optional) Wiring Method: Air switch | AC220V, 50/60Hz (Standard); AC110V, 50/60Hz(Optional) Wiring Method: Air switch | AC220V, 50/60Hz (Standard); AC110V, 50/60Hz(Optional) Wiring Method: Air switch |
| External Size(W*D*H) | 610*1020*610mm | 805*940*700mm | 805*940*700mm | 805*1140*700mm |
| Net Weight | 128kg | 175kg | 175kg | 185kg |
| Package Size(W*D*H) | 750*1200*880 mm | 960*1130*940mm | 960*1130*940mm | 960*1330*940mm |
| Gross Weight | 165kg | 215kg | 215kg | 230kg |
Manufacturer catalogue checked 2026-09-28.
