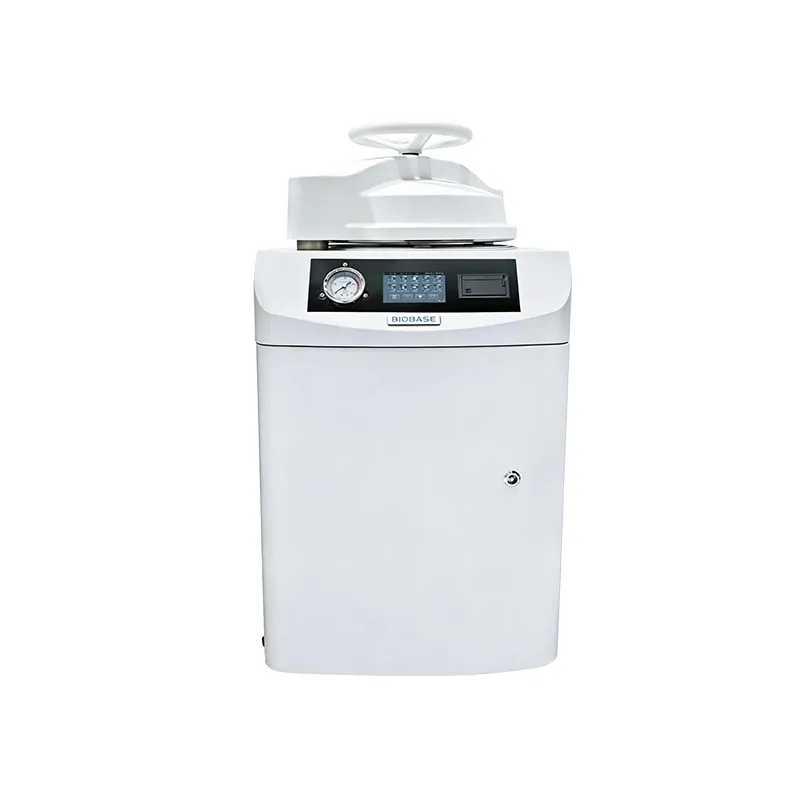

BIOBASE Vertical Autoclave
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Vertical Autoclave is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BKQ-L60, BKQ-L80, BKQ-L100, BKQ-L120. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKQ-L60 | BKQ-L80 | BKQ-L100 | BKQ-L120 |
|---|---|---|---|---|
| Capacity | 60L | 80L | 100L | 120L |
| Designed Pressure | 0.32Mpa | 0.32Mpa | 0.32Mpa | 0.32Mpa |
| Working Pressure | 0.23Mpa | 0.23Mpa | 0.23Mpa | 0.23Mpa |
| Designed Temp. | 150℃ | 150℃ | 150℃ | 150℃ |
| Working Temp. | 40~138℃ ; | 40~138℃ ; | 40~138℃ ; | 40~138℃ ; |
| Temp. Precision | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±0.1℃ |
| Chamber Material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Chamber Size | Φ386*517mm | Φ386*697mm | Φ386*877mm | Φ386*1057mm |
| Basket | Φ365*360mm, 1pc | Φ365*265mm, 2pcs | Φ365*360mm, 2pcs | Φ365*265mm, 1pc；; Φ365*265mm, 2pcs |
| Noise | ≤65dB | ≤65dB | ≤65dB | ≤65dB |
| Altitude | ≤3000m | ≤3000m | ≤3000m | ≤3000m |
| Standard Accessories | Basket, printer, USB, mobile temperature sensor | Basket, printer, USB, mobile temperature sensor | Basket, printer, USB, mobile temperature sensor | Basket, printer, USB, mobile temperature sensor |
| Optional Accessory | Bucket | Bucket | Bucket | Bucket |
| Consumption | 4.4KW | 4.7KW | 5.2KW | 5.2KW |
| Power Supply | AC220V, 50/60Hz(Standard);; AC110V, 50/60Hz(Optional); Wiring method: air switch | AC220V, 50/60Hz(Standard);; AC110V, 50/60Hz(Optional); Wiring method: air switch | AC220V, 50/60Hz(Standard);; AC110V, 50/60Hz(Optional); Wiring method: air switch | AC220V, 50/60Hz(Standard);; AC110V, 50/60Hz(Optional); Wiring method: air switch |
| External Size(W*D*H) | 505*750*870mm | 505*750*1050mm | 505*750*1230mm | 505*750*1430mm |
| Net Weight | 87kg | 93kg | 103kg | 110kg |
| Package Size(W*D*H) | 620*850*1070mm | 620*850*1250mm | 620*850*1430mm | 620*850*1610mm |
| Gross Weight | 103kg | 111kg | 121kg | 131kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
