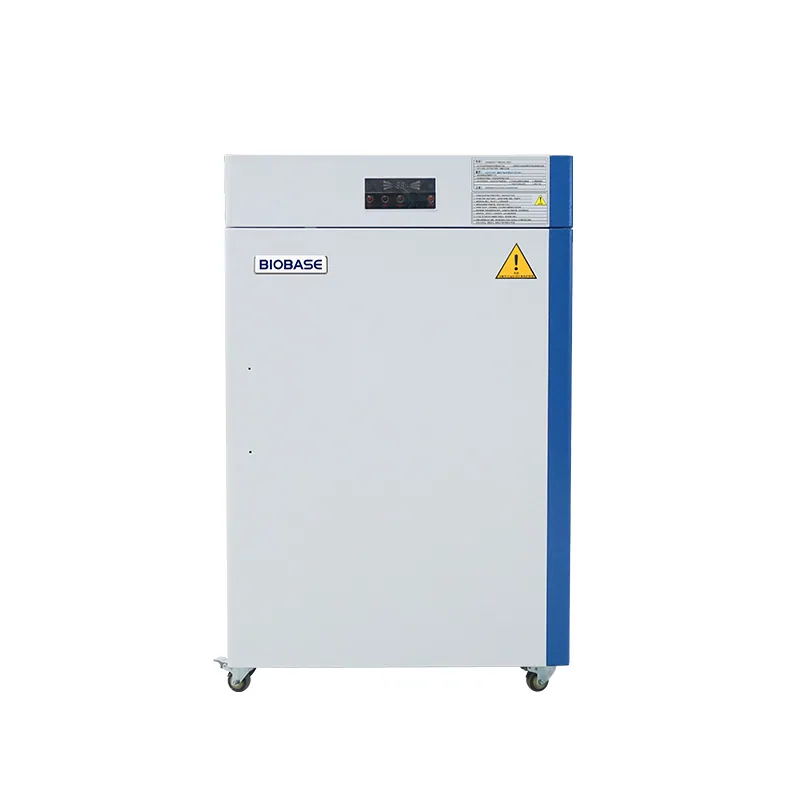

BIOBASE UV Sterilization Cabinet
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE UV Sterilization Cabinet is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BJPX-SVO200, BJPX-SV200. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-SVO200 | BJPX-SV200 |
|---|---|---|
| Capacity | 200L | 200L |
| Type | With ozone | Without ozone |
| UV Ray Wavelength | 253.7/184.9nm | 253.7nm |
| Sterilization Way | 2 sides of UV ray+1 side of ozone | 3 sides of UVC UV ray |
| UV Lamp Material | Quartz glass | Quartz glass |
| Altitude | ＜2000m | ＜2000m |
| Shelf | 500*520mm, standard 2pcs, can be optional | 500*520mm, standard 2pcs, can be optional |
| Standard Accessories | Shelf*2,doorknob*1, UV lamp*4，Ozone UV lamp*2 | Shelf*2,doorknob*1, UV lamp*6 |
| Consumption | 120W; | 120W; |
| Power Supply | AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional, external transformer) | AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional, external transformer) |
| Internal Size; | 518*523*778mm; | 518*523*778mm; |
| External Size(W*D*H) | 750*663*1200mm | 750*663*1200mm |
| Net Weight | 81kg; | 81kg; |
| Package Size(W*D*H) | 875*788*1365mm | 875*788*1365mm |
| Gross Weight | 100kg | 100kg |
| Microorganism Species | Exposure Dose | Exposure Time |
|---|---|---|
| Bacterial Propagules | ≥10000μW.s/cm2 | 10min |
| Bacterial Spores | ≥100000μW.s/cm2 | 10min |
| Virus | 10000μW.s/cm2≤Exposure Dose≤100000μW.s/cm2 | 10min |
| Fungal Spores | General Exposure Dose≤100000μW.s/cm2 Special Exposure Dose up to 600000μW.s/cm2 | 60min |
| When the target microorganism is unknown | ≥100000μW.s/cm2 | 10min |
Manufacturer catalogue checked 2026-09-28.
