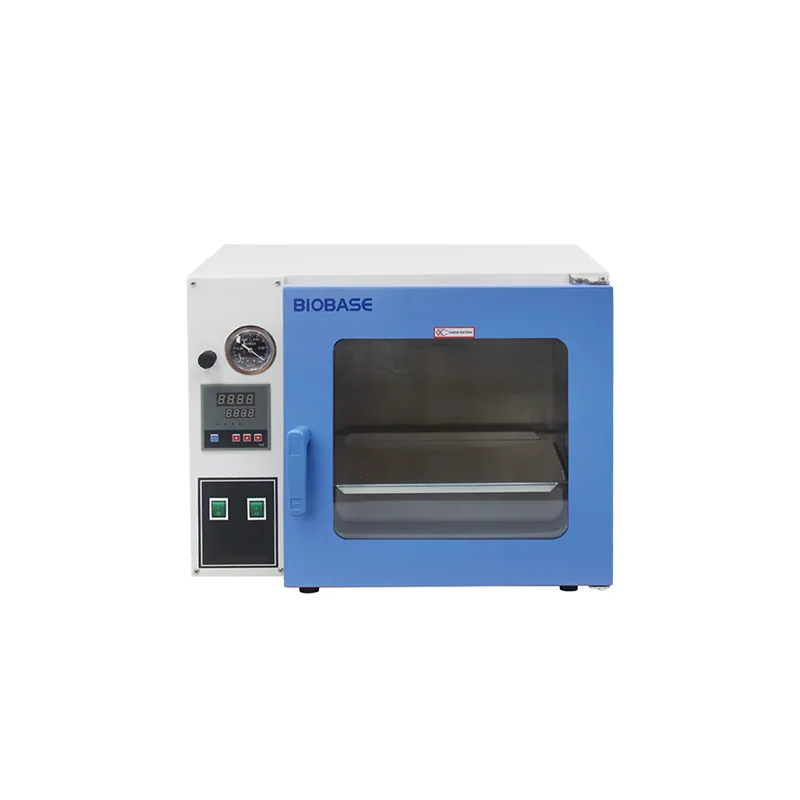

BIOBASE Vacuum Drying Oven(BOV-V/VL)
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Vacuum Drying Oven(BOV-V/VL) is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: BOV-30V, BOV-50V, BOV-90V, BOV-215V, BOV-90VL, BOV-215VL. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BOV-30V | BOV-50V | BOV-90V | BOV-90V | BOV-215V | BOV-90VL | BOV-215VL |
|---|---|---|---|---|---|---|---|
| Capacity | 23L | 53L | 91L | 91L | 213L | 91L | 213L |
| Temp. Range | RT+10~200℃ | RT+10~250℃ | RT+10~200℃ | RT+10~200℃ | RT+10~200℃ | RT+10~200℃ | RT+10~200℃ |
| Temp. Fluctuation | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Vacuum Degree | ＜133Pa | ＜133Pa | ＜133Pa | ＜133Pa | ＜133Pa | ＜133Pa | ＜133Pa |
| Vacuum Display | Pointer-type vacuum pressure gauge | Pointer-type vacuum pressure gauge | Pointer-type differential pressure vacuum gauge with rotatable vacuum value | Pointer-type differential pressure vacuum gauge with rotatable vacuum value | Pointer-type differential pressure vacuum gauge with rotatable vacuum value | LED digital display, push button input of the vacuum value | LED digital display, push button input of the vacuum value |
| Vacuum Control | Manual control | Manual control | Automatic differential pressure control | Automatic differential pressure control | Automatic differential pressure control | Pressure sensor+deviation control | Pressure sensor+deviation control |
| Timing Range | 0~9999min | 0~9999min | 0~9999min | 0~9999min | 0~9999min | 0~9999min | 0~9999min |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) (External transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) (External transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) (External transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) (External transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) (External transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) (External transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) (External transformer) |
| Consumption | 500W | 1400W | 1600W | 1600W | 2200W | 1600W | 2200W |
| Shelf | Aluminum shelf*1 | Aluminum shelf*2 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 |
| Standard Accessories | Shelves | Shelves | Shelves, vacuum pump, vacuum tube | Shelves, vacuum pump, vacuum tube | Shelves, vacuum pump, vacuum tube | Shelves, vacuum pump, vacuum tube | Shelves, vacuum pump, vacuum tube |
| Optional Accessories | Vacuum pump: 2XZ-2(AC 220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube, external temperature protection device, LCD temperature controller+RS485, LCD temperature controller+mini dot matrix printer, RS485 to USB converter | Vacuum pump: 2XZ-2(AC 220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube, external temperature protection device, LCD temperature controller+RS485, LCD temperature controller+mini dot matrix printer, RS485 to USB converter | Vacuum pump: 2XZ-2(AC 220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube, external temperature protection device, LCD temperature controller+RS485, LCD temperature controller+mini dot matrix printer, RS485 to USB converter | External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series); External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) | External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series); External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) | External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series); External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) | External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series); External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) |
| Internal Size(W*D*H) | 296*300*270mm | 416*370*346mm | 450*450*450mm | 450*450*450mm | 556*600*640mm | 450*450*450mm | 556*600*640mm |
| External Size(W*D*H) | 590*492*468mm | 710*562*544mm | 611*641*1398mm | 611*641*1398mm | 721*794*1638mm | 611*641*1398mm | 721*794*1638mm |
| Package Size(W*D*H) | 670*610*600mm | 790*660*670mm | 710*710*1550mm | 710*710*1550mm | 940*810*1800mm | 710*710*1550mm | 940*810*1800mm |
| Package Size(W*D*H) | 2XZ-2: 580*215*367mm | 2XZ-2: 580*215*367mm | 710*710*1550mm | 710*710*1550mm | 940*810*1800mm | 710*710*1550mm | 940*810*1800mm |
| Net Weight | 55kg | 67kg | 145kg | 145kg | 208kg | 143kg | 207kg |
| Gross Weight | 65kg | 79kg | 171kg | 171kg | 245kg | 168kg | 244kg |
| Gross Weight | 2XZ-2: 23kg | 2XZ-2: 23kg | 171kg | 171kg | 245kg | 168kg | 244kg |
Manufacturer catalogue checked 2026-09-28.
