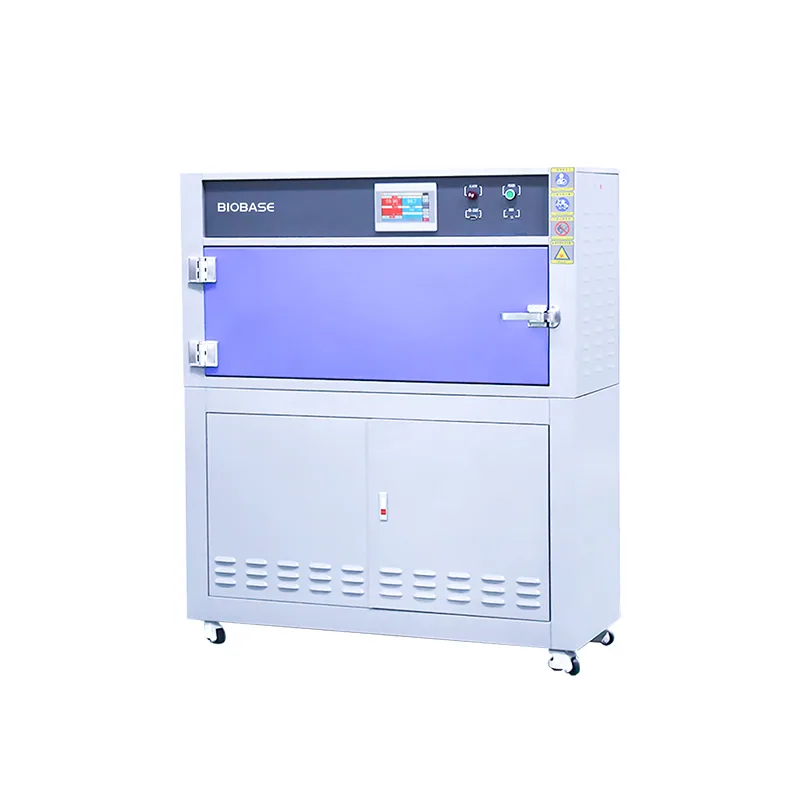

BIOBASE UV Aging Test Chamber
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE UV Aging Test Chamber is listed in VVON's environmental & ageing test chambers range for Bangladesh. Published models: BJPX-UATC1, BJPX-UATC2, BJPX-UATC3. Match specimen dimensions, test method, exposure conditions and duration. For a quotation, send the specimen, test method, chamber dimensions, temperature and humidity range. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-UATC1 | BJPX-UATC2 | BJPX-UATC3 |
|---|---|---|---|
| Function | Lighting | Lighting+condensation | Lighting+condensation+raining |
| Lighting Temp. Range | 50~70℃(Temp. deviation: ±3℃) | 50~70℃(Temp. deviation: ±3℃) | 50~70℃(Temp. deviation: ±3℃) |
| Condensation | 40~60℃(Temp. deviation: ±3℃) | 40~60℃(Temp. deviation: ±3℃) | 40~60℃(Temp. deviation: ±3℃) |
| Blackboard Temp. Range | 30~80℃(Temp. deviation: ±1℃) | 30~80℃(Temp. deviation: ±1℃) | 30~80℃(Temp. deviation: ±1℃) |
| Center Distance of Light | 70mm | 70mm | 70mm |
| Distance | 50mm(The closest parallel distance between the specimen and the lamp surface) | 50mm(The closest parallel distance between the specimen and the lamp surface) | 50mm(The closest parallel distance between the specimen and the lamp surface) |
| Wavelength Range | UVA-340: 315~400nm UVB-313: 280~320nm | UVA-340: 315~400nm UVB-313: 280~320nm | UVA-340: 315~400nm UVB-313: 280~320nm |
| Max. Radiation Intensity | Within 1.2W/m2/340nm adjustable | Within 1.2W/m2/340nm adjustable | Within 1.2W/m2/340nm adjustable |
| Indication Resolution | 0.1℃ | 0.1℃ | 0.1℃ |
| Tank | Water depth ≤25mm, with automatically feed water controller | Water depth ≤25mm, with automatically feed water controller | Water depth ≤25mm, with automatically feed water controller |
| Lamp Life | About 1800~2500h(Depends on actual usage time) | About 1800~2500h(Depends on actual usage time) | About 1800~2500h(Depends on actual usage time) |
| Power Supply | AC380V, 50/60Hz; 220V, 50/60Hz; 110V, 50/60Hz(Standard) | AC380V, 50/60Hz; 220V, 50/60Hz; 110V, 50/60Hz(Standard) | AC380V, 50/60Hz; 220V, 50/60Hz; 110V, 50/60Hz(Standard) |
| Inner Size(W*D*H) | 1130*500*400mm | 1130*500*400mm | 1130*500*400mm |
| External Size(W*D*H) | 1300*700*1700mm | 1300*700*1700mm | 1300*700*1700mm |
| Package Size(W*D*H) | 1600*1000*2000mm | 1600*1000*2000mm | 1600*1000*2000mm |
| Net Weight | 150kg | 150kg | 150kg |
| Gross Weight | 170kg | 170kg | 170kg |
Manufacturer catalogue checked 2026-09-28.
