Brand: BIOBASE | Category: Scientific & Laboratory Equipment

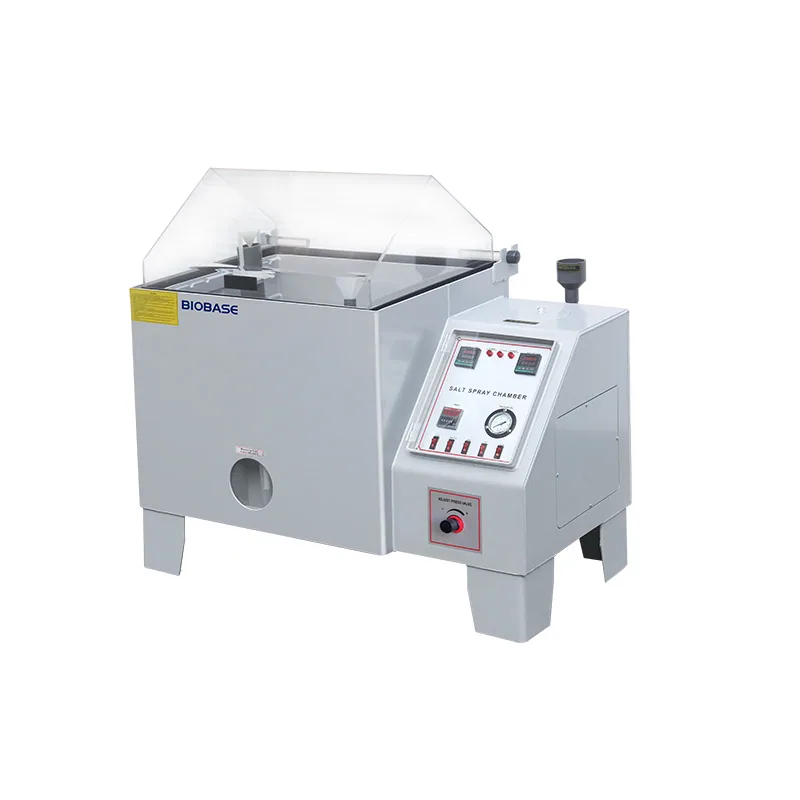

BIOBASE Salt Spray Test Machine is listed in VVON's environmental & ageing test chambers range for Bangladesh. Published models: BJPX-SS60A, BJPX-SS90A, BJPX-SS120A, BJPX-SS160A. Match specimen dimensions, test method, exposure conditions and duration. For a quotation, send the specimen, test method, chamber dimensions, temperature and humidity range. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-SS60A | BJPX-SS90A | BJPX-SS120A | BJPX-SS160A |
|---|---|---|---|---|
| Test Chamber Capacity | 108L | 216L | 600L | 800L |
| Salt Tank Capacity | 15L | 25L | 40L | 40L |
| Temp. Requirement | Test chamber: 35±1℃(Salt spray test: NSS, AASS); 50±1℃(Corrosion resistance test: CASS); Saturated air barrel: 47±1℃(Salt spray test: NSS, AASS); 63±1℃(Corrosion resistance test: CASS) | Test chamber: 35±1℃(Salt spray test: NSS, AASS); 50±1℃(Corrosion resistance test: CASS); Saturated air barrel: 47±1℃(Salt spray test: NSS, AASS); 63±1℃(Corrosion resistance test: CASS) | Test chamber: 35±1℃(Salt spray test: NSS, AASS); 50±1℃(Corrosion resistance test: CASS); Saturated air barrel: 47±1℃(Salt spray test: NSS, AASS); 63±1℃(Corrosion resistance test: CASS) | Test chamber: 35±1℃(Salt spray test: NSS, AASS); 50±1℃(Corrosion resistance test: CASS); Saturated air barrel: 47±1℃(Salt spray test: NSS, AASS); 63±1℃(Corrosion resistance test: CASS) |
| Temp. Fluctuation | ≤±0.5℃(Test chamber) | ≤±0.5℃(Test chamber) | ≤±0.5℃(Test chamber) | ≤±0.5℃(Test chamber) |
| Temp. Uniformity | ≤2℃(Test chamber) | ≤2℃(Test chamber) | ≤2℃(Test chamber) | ≤2℃(Test chamber) |
| Test Chamber Humidity | ＞85% | ＞85% | ＞85% | ＞85% |
| Salt Water Temp. Requirement | 35±1℃(NSS ACSS); 50±1℃(CASS) | 35±1℃(NSS ACSS); 50±1℃(CASS) | 35±1℃(NSS ACSS); 50±1℃(CASS) | 35±1℃(NSS ACSS); 50±1℃(CASS) |
| Brine Concentration | 5% NaCl solution or 0.26g CuCl_(2) was added to 5% NaCl solution per liter | 5% NaCl solution or 0.26g CuCl_(2) was added to 5% NaCl solution per liter | 5% NaCl solution or 0.26g CuCl_(2) was added to 5% NaCl solution per liter | 5% NaCl solution or 0.26g CuCl_(2) was added to 5% NaCl solution per liter |
| Saturated Air Pressure | 1.00±0.01kgf/cm^(2) | 1.00±0.01kgf/cm^(2) | 1.00±0.01kgf/cm^(2) | 1.00±0.01kgf/cm^(2) |
| Spray | 1.0~2.0ml/80cm^(2)/h(The samples were collected for at least 16 hours and averaged) | 1.0~2.0ml/80cm^(2)/h(The samples were collected for at least 16 hours and averaged) | 1.0~2.0ml/80cm^(2)/h(The samples were collected for at least 16 hours and averaged) | 1.0~2.0ml/80cm^(2)/h(The samples were collected for at least 16 hours and averaged) |
| Standard Accessory | Test rack, graduated cylinder, collection cup, humidity cup, nozzle tower, 5L plastic beaker, salinometer, glass nozzle, saltwater filter | Test rack, graduated cylinder, collection cup, humidity cup, nozzle tower, 5L plastic beaker, salinometer, glass nozzle, saltwater filter | Test rack, graduated cylinder, collection cup, humidity cup, nozzle tower, 5L plastic beaker, salinometer, glass nozzle, saltwater filter | Test rack, graduated cylinder, collection cup, humidity cup, nozzle tower, 5L plastic beaker, salinometer, glass nozzle, saltwater filter |
| Optional Accessory | Touch screen, dual-timing function | Touch screen, dual-timing function | Touch screen, dual-timing function | Touch screen, dual-timing function |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) |
| Internal Size(W*D*H) | 600*450*400mm | 900*600*400mm | 1200*1000*500mm | 1600*1000*500mm |
| External Size(W*D*H) | 1025*650*990mm | 1348*810*1250mm | 1860*1260*1250mm | 2280*1260*1250mm |
| Package Size(W*D*H) | 1100*700*1180mm | 1430*850*1250mm | 1920*1330*1420mm | 2330*1320*1440mm |
| Net Weight | 47kg | 68kg | 150kg | 234kg |
| Gross Weight | 88kg | 125kg | 310kg | 410kg |
Manufacturer catalogue checked 2026-09-28.
