Brand: BIOBASE | Category: Scientific & Laboratory Equipment

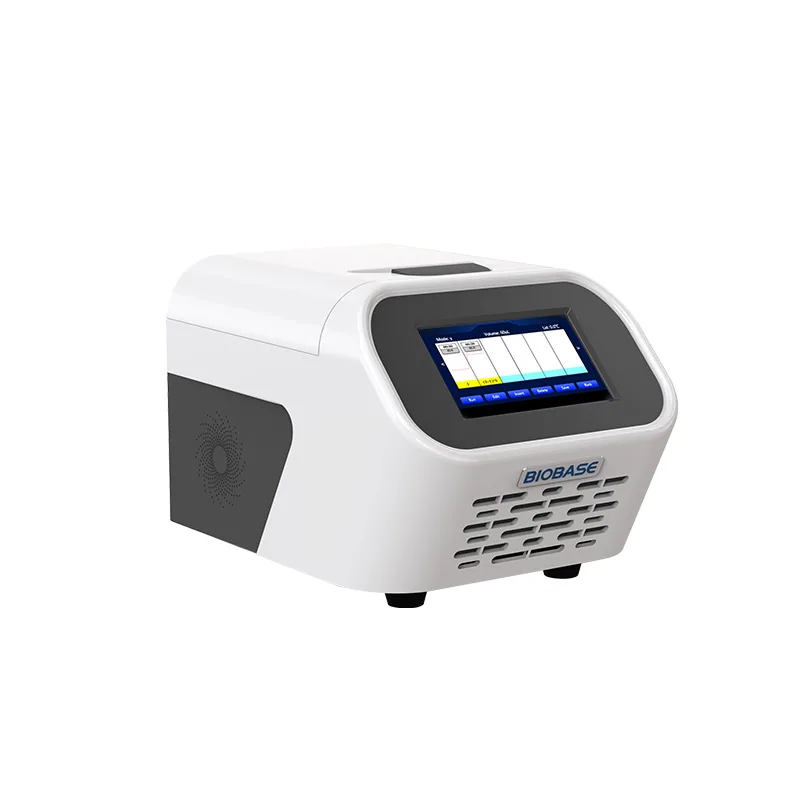

BIOBASE Thermal Cycler is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: TEC01, TEC03. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | TEC01 | TEC03 |
|---|---|---|
| Capacity | 96 | 3*32 |
| Reaction Volume | 10~200μl | 10~200μl |
| Tube Type | 96*0.2ml PCR plate; 8*0.2ml PCR tube; 0.2ml single PCR tube | 8*0.2ml PCR tube; 0.2ml single PCR tube |
| Block Temperature Range | 4~105℃ | 4~105℃ |
| Heat Lid Temperature Range | 30~110℃ | 30~110℃ |
| Max Heating Rate | 4.0℃/s | 7.7℃/s |
| Max Cooling Rate | 3℃/s | 4.6℃/s |
| Display Resolution | 0.1℃ | 0.1℃ |
| Temperature Accuracy | ±0.3℃ | ±0.3℃ |
| Temperature Uniformity | ±0.3℃ | ±0.3℃ |
| Block Material | Aluminum | Aluminum |
| Gradient Range | 30~99℃ | 30~105℃ |
| Temperature Differential Range | 1~42℃ | 1~25℃ |
| Program | A single program can be up to 30 steps, 99 cycles | A single program can be up to 99+ steps, 120 cycles |
| Display | 7" LCD | 10.1" LCD |
| Power Supply | AC 110V~220V, 50/60Hz ; | AC 110V~220V, 50/60Hz ; |
| External Size(W*D*H) | 398*280*257mm | 445*340*240mm |
| Net Weight | 11kg | 15kg |
| Package Size(W*D*H) | 495*380*380mm | 560*450*440mm |
| Gross Weight | 17kg | 27.2kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
