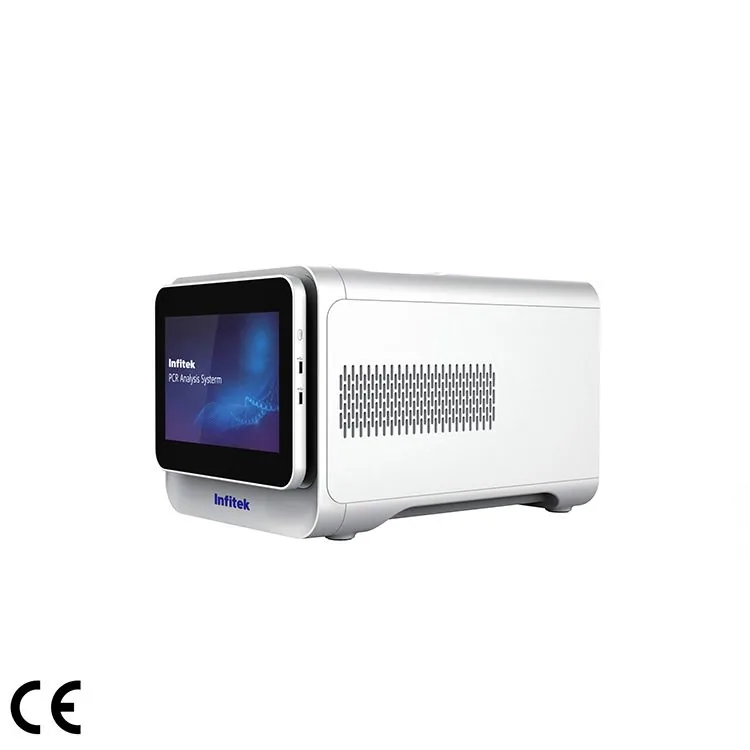

Infitek Real-time PCR System, PCR-Q96-6P
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Real-time PCR System, PCR-Q96-6P is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: PCR-Q96-6P. Published details include Sample Capacity: 96-well plate, 12*8 strips, 96*0.2ml single tubes; Reaction Volume: 10~100μL. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | PCR-Q96-6P |
|---|---|
| Sample Capacity | 96-well plate, 12*8 strips, 96*0.2ml single tubes |
| Consumables | 0.1/0.2ml tubes, 0.1/0.2ml 8-tube strips, 0.1/0.2ml skirtless and semi-skirted 96-well plates (0.2 ml recommended) |
| Reaction Volume | 10~100μL |
| Temperature Range | 0~100°C (Resolution: 0.1°C) |
| Max. Ramp Rate | 8.0°C/s |
| Temp. Control Accuracy | ±0.1°C |
| Uniformity | ±0.20°C |
| Accuracy | ±0.20°C |
| Gradient Spread | 0.1~42°C |
| Hot Lid Temperature | 30~115°C (Adjustable, default 105°C) |
| Lid Operation | Automatic hot lid |
| Temperature Control | Block/Tube |
| Excitation Wavelength | 300nm~810nm |
| Emission Wavelength | 500nm~810nm |
| Detection Channels | 6 channels |
| Detection Method | Simultaneous scanning of all channels |
| Scan Period | 5 seconds for full 96-well scan |
| Factory Calibrated Dyes | F1: FAM/SYBR Green/ EvaGreen; |
| Factory Calibrated Dyes | F2: HEX/VIC/JOE/TET/YELLOW; |
| Factory Calibrated Dyes | F3: ROX/Texas Red; |
| Factory Calibrated Dyes | F4: Cy5; |
| Factory Calibrated Dyes | F5: Cy5.5; |
| Factory Calibrated Dyes | F6: Cy3 (customized) |
| Excitation | Long-life LED |
| Detection | High-sensitivity photoelectric detector |
| Dynamic Range | 1–10^(10) copies |
| Sensitivity | 1 copy |
| Software Functions | Qualitative/absolute quantification, relative quantification, genotyping, HRM, melting curve, standard curve, allele identification, temperature gradient, etc. |
| Remote Monitoring | Can be connected to laboratory management system |
| Automation Platform | Can be used with automated workstations |
| Data Export Formats | Excel, CSV, TXT, PDF |
| Printing | Direct report printing supported |
| Control Method | 12.1-inch color touchscreen; PC control supported |
| Communication | USB 2.0, RS 232 |
| Electricity | 100~240 VAC, 50~60 Hz |
| Power | 1500W |
| Dimensions (L*W*H) | 520*350*330mm |
| Weight | 32kg |
Manufacturer catalogue checked 2026-09-28.
