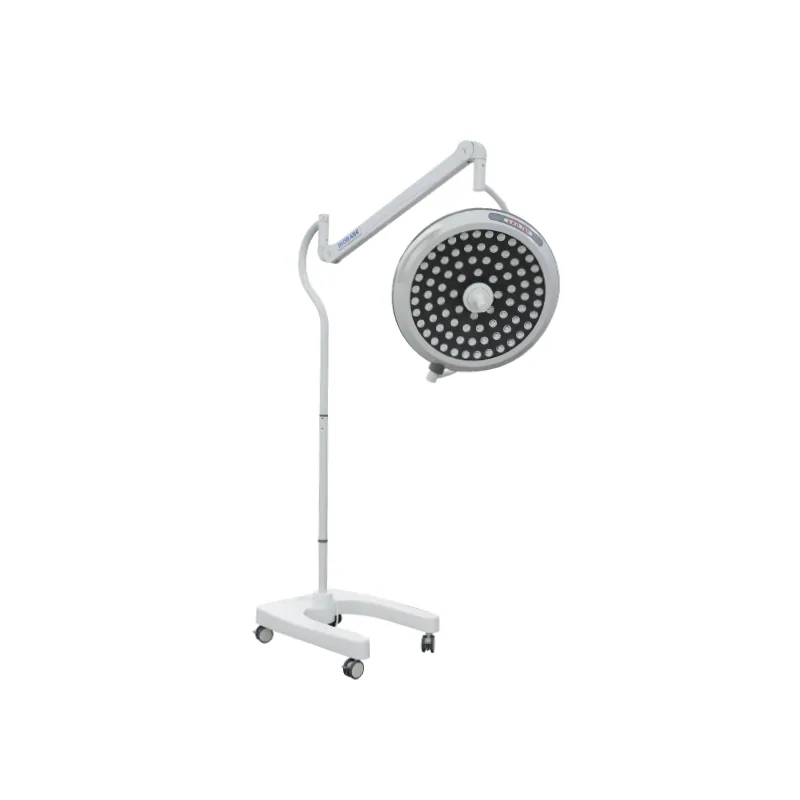

BIOBASE Surgical Shadowless Lamp BK-LED500L BK-LED700L
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Surgical Shadowless Lamp BK-LED500L BK-LED700L is listed in VVON's operating theatre & surgical lighting range for Bangladesh. Published models: BK-LED500L, BK-LED700L. Match procedure requirements, patient positioning and room utilities to the configuration. For a quotation, send the procedure type, positioning needs, room layout and required accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-LED500L | BK-LED700L |
|---|---|---|
| Number of LEDs | 48 | 80 |
| Center Illuminance(LUX at 1M) | 40000~160000 (Adjustable) | 40000~160000 (Adjustable) |
| Color Temperature(K) | 3000K ≤ Tc ≤ 6700K (Adjustable) | 3000K ≤ Tc ≤ 6700K (Adjustable) |
| Color Rendering Index(Ra) | 85 ≤ Ra ≤ 100 | 85 ≤ Ra ≤ 100 |
| Spot Diameter(mm) | ≥120 | ≥120 |
| Spot Distribution Diameter(mm) | ≥60 | ≥60 |
| Light Column Depth(mm) | ≥800 | ≥800 |
| Irradiance(W/m²) | ≤900 | ≤900 |
| Temp. Rise at Surgeon's Head(°C) | ≤1 | ≤1 |
| Temp. Rise in Surgical Field(°C) | ≤2 | ≤2 |
| Average Lamp Life(h) | ≥80000 | ≥80000 |
| Lamp Power | 1W | 1W |
| Power Supply | AC100~240V,50/60Hz | AC100~240V,50/60Hz |
| Consumption | 200VA | 200VA |
| Packing Size(W*D*H) | 765*590*215mm; 1060*220*200mm; 840*860*300mm | 765*590*215mm; 1060*220*200mm; 1035*965*305mm |
| Net Weight | 74kg | 77kg |
| Gross Weight | 48kg;19kg;14kg | 48kg;19kg;19kg |
Manufacturer catalogue checked 2026-09-28.
