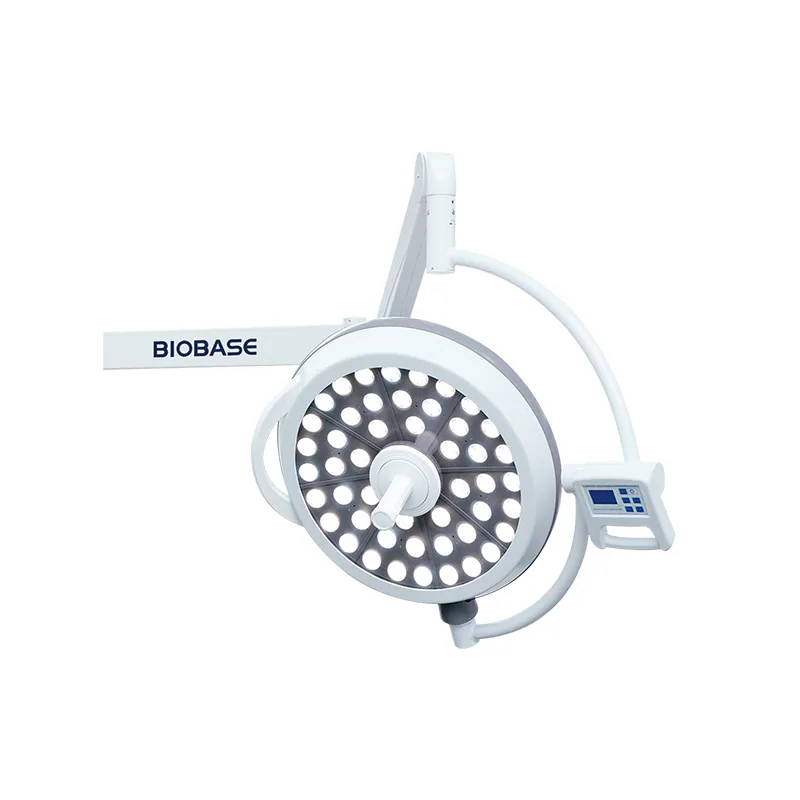

BIOBASE Surgical Shadowless Lamp
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Surgical Shadowless Lamp is listed in VVON's operating theatre & surgical lighting range for Bangladesh. Published models: BK-LED500, BK-LED700, BK-LED500/700. Match procedure requirements, patient positioning and room utilities to the configuration. For a quotation, send the procedure type, positioning needs, room layout and required accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-LED500 | BK-LED700 | BK-LED500/700 |
|---|---|---|---|
| Number of LEDs | 48 | 80 | 48&80 |
| Center Illuminance(LUX at 1M) | 40000~160000(Adjustable) | 40000~160000(Adjustable) | 40000~160000(Adjustable) |
| Color Temperature(K) | 3000K≤Tc≤6700K(Adjustable) | 3000K≤Tc≤6700K(Adjustable) | 3000K≤Tc≤6700K(Adjustable) |
| Color Rendering Index(Ra) | 85≤Ra≤100 | 85≤Ra≤100 | 85≤Ra≤100 |
| Spot Diameter(mm) | ≥120 | ≥120 | ≥120 |
| Spot Distribution Diameter(mm) | ≥60 | ≥60 | ≥60 |
| Light Column Depth(mm) | ≥800 | ≥800 | ≥800 |
| Irradiance(W/m²) | ≤900 | ≤900 | ≤900 |
| Temp. Rise at Surgeon's Head(°C) | ≤1 | ≤1 | ≤1 |
| Temp. Rise in Surgical Field(°C) | ≤2 | ≤2 | ≤2 |
| Operating Radius(mm) | ≥2200 | ≥2200 | ≥2200 |
| Working Radius(mm) | 600~1800 | 600~1800 | 600~1800 |
| Average Lamp Life(h) | ≥80000 | ≥80000 | ≥80000 |
| Lamp Power | 1W | 1W | 1W |
| Optimal Installation Height(mm) | 2800~3000 | 2800~3000 | 2800~3000 |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Consumption | 200VA | 200VA | 200VA |
| Packing Size(W*D*H)mm | Single arm: 1090*370*435 Lamp: 860*840*290 | Single arm: 1090*370*435 Lamp: 1040*970*320 | Double arm: 1090*370*520 Lamp: 860*840*290 1040*970*320 |
| Net Weight(kg) | Single arm: 28.2 Lamp: 8.6 | Single arm: 28.2 Lamp: 12.98 | Double arm: 44.3 Lamp: 8.6, 12.98 |
| Gross Weight(kg) | Single arm: 38.2 Lamp: 13.12 | Single arm: 38.2 Lamp: 18.42 | Double arm: 55.2 Lamp: 13.12, 18.42 |
Manufacturer catalogue checked 2026-09-28.
