Brand: BIOBASE | Category: Scientific & Laboratory Equipment

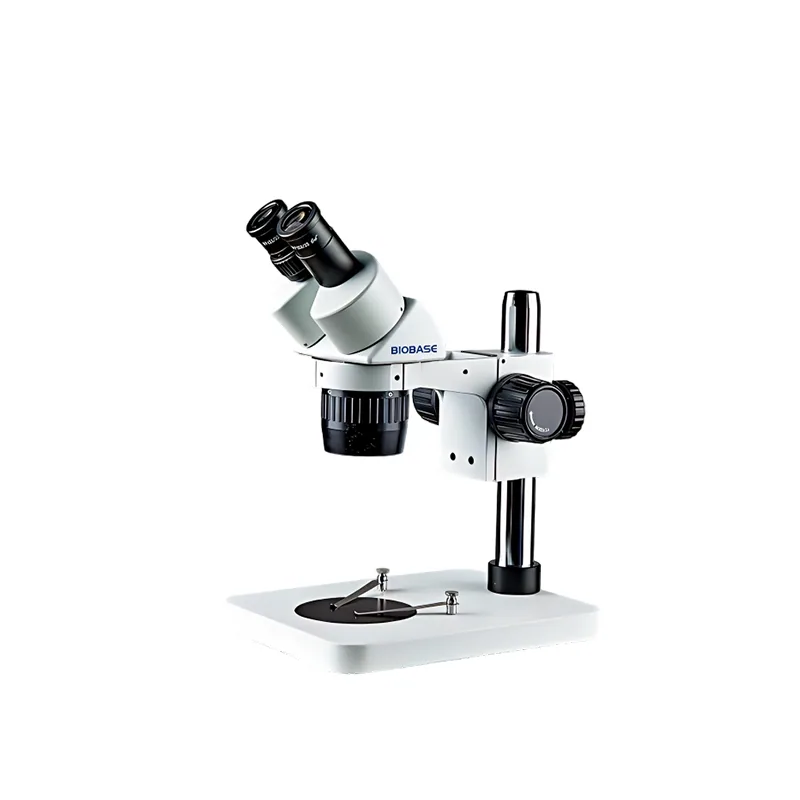

BIOBASE Stereo Zoom Microscope is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: SZM-EB2040C, SZM-E2040C, SZM-E40X, 2X Objectives, SZM-E0745C, SZM-E0745CS. Compare the remaining models in the specification tables. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SZM-EB2040C | SZM-E2040C | SZM-E40X |
|---|---|---|---|
| Objective / 2X Objectives | / | / | / |
| Objective / 4X Objectives | / | / | √ |
| Objective / 2X&4X Objectives Can Convertible | √ | √ | / |
| Eyepiece / Wide Field Eyepiece: WF10X(WF20X optional) | √ | √ | √ |
| Viewing Head ; / Binocular, tilted 45°, pupil distance 48~75mm | √ | √ | / |
| Viewing Head ; / Binocular, 90° straight cylinder, pupil distance 48~75mm | / | / | √ |
| Base / φ60 black and white tabletop, slicing and pressing | / | / | √ |
| Base / φ90 black and white tabletop, slicing and pressing, complimentary φ90 glass panels | 260*380*20mm Large flat base | √ | / |
| Light Source / No light source | / | / | √ |
| Light Source / Upper light source | / | / | / |
| Light Source / Up and down light sources | √ | √ | / |
| Lighting / 100~230V/12V, 5W LED | √ | √ | / |
| Package Size(W*D*H)mm | 515*268*380 | 370*180*300 | 160*220*310 |
| Gross Weight(kg) | 5 | 3.2 | 1.7 |
| Model | SZM-E0745C | SZM-E0745CS | SZM-E0745CLT | SZM-E0745CLTS |
|---|---|---|---|---|
| Objective / 0.7~4.5X zoom objective | √ | √ | √ | √ |
| Eyepiece / Wide Field Eyepiece: WF10X(20mm)(WF20X optional) | √ | √ | √ | √ |
| Viewing Head / Binocular, tilted 45°, pupil distance 48~75 | √ | / | √ | / |
| Viewing Head / Trinocular tilted 45°Pupil distance 48~75 | / | √ | / | √ |
| Viewing Head / 90°straight tube, C-interface | / | / | / | / |
| Base / 260*380*20mm | / | / | / | / |
| Base / 200*255*22mm | / | / | / | / |
| Base / 200*255*60mm | √ | √ | / | / |
| Base / 205*275*40mm | / | / | √ | √ |
| Light Source / No light source | / | / | / | / |
| Light Source / Upper light source | / | / | √ | / |
| Light Source / Up and down light sources | √ | √ | √ | √ |
| Light Source / Can optional LED circular light | √ | √ | √ | √ |
| Lighting / 100~230V/12V, 5W LED | √(Optional: 220V/6V 20W or 110V/6V 20W halogen lamp) | √(Optional: 220V/6V 20W or 110V/6V 20W halogen lamp) | √ | √ |
| Package Size(W*D*H)mm | 515*268*380 | 515*268*380 | 510*360*295 | 510*360*295 |
| Gross Weight(kg) | 6.2 | 6.5 | 7 | 7.5 |
Manufacturer catalogue checked 2026-09-28.
