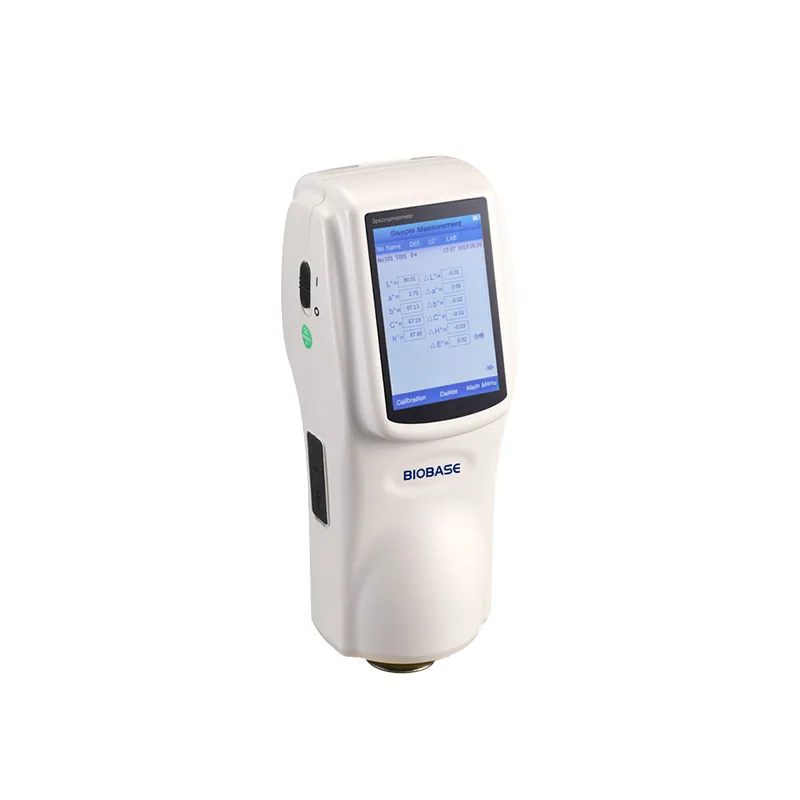

BIOBASE Spectrophotometric Colorimeter
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Spectrophotometric Colorimeter is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: BCM-810. Published details include Wavelength Range: 400~700nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BCM-810 |
|---|---|
| Illumination/Observation System | d/8(diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978 |
| Integrating Sphere Size | φ58mm |
| Light Source | Combined LED sources |
| Sensor | Silicon photodiode array |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | φ8mm |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE, LUV |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), metamerism index(Mt), color strength, color stain, color fastness, opacity |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), metamerism index(Mt), color strength, color stain, color fastness, opacity |
| Observer | 2°/10° |
| Illuminant | D65, D50, A, C, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) |
| Display Data | Spectral value/Graph, Colorimetric value, Color difference value/Graph, Pass/Fail result, Color offset, Color simulation |
| Display Data | Spectral value/Graph, Colorimetric value, Color difference value/Graph, Pass/Fail result, Color offset, Color simulation |
| Measurement Time | 1.5s |
| Repeatability | Spectral reflectance: Standard deviation within 0.1% Colorimetric value: Standard deviation within ΔE*ab 0.04(Measurement conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Repeatability | Spectral reflectance: Standard deviation within 0.1% Colorimetric value: Standard deviation within ΔE*ab 0.04(Measurement conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Repeatability | Spectral reflectance: Standard deviation within 0.1% Colorimetric value: Standard deviation within ΔE*ab 0.04(Measurement conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within ΔE*ab 0.2(Average for 12 BCRA Series II color tiles) |
| Battery | Li-ion battery, 2800 times within 8 hours |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display | 3.5 inch TFT LCD, Capacitive touch screen |
| Interface | USB/RS-232 |
| Data Memory | 1000 standards, 15000 samples |
| Ambient Temp. | 0~40°C(32~104°F) |
| Storage Temp. | -20~50°C(-4~122°F) |
| Standard Accessory | Power adapter, Li-ion battery, operating instruction, PC software(Download from office website), data line, white and black calibration cavity, protective cover, wrist strap |
| Optional Accessory | Universal test components, micro printer, powder test box |
| External Size(W*D*H) | 90*77*230mm |
| Package Size(W*D*H) | 370*170*310mm |
| Net Weight | 600g |
| Gross Weight | 3kg |
| Notes | The specifications are subject to change without notice |
Manufacturer catalogue checked 2026-09-28.
