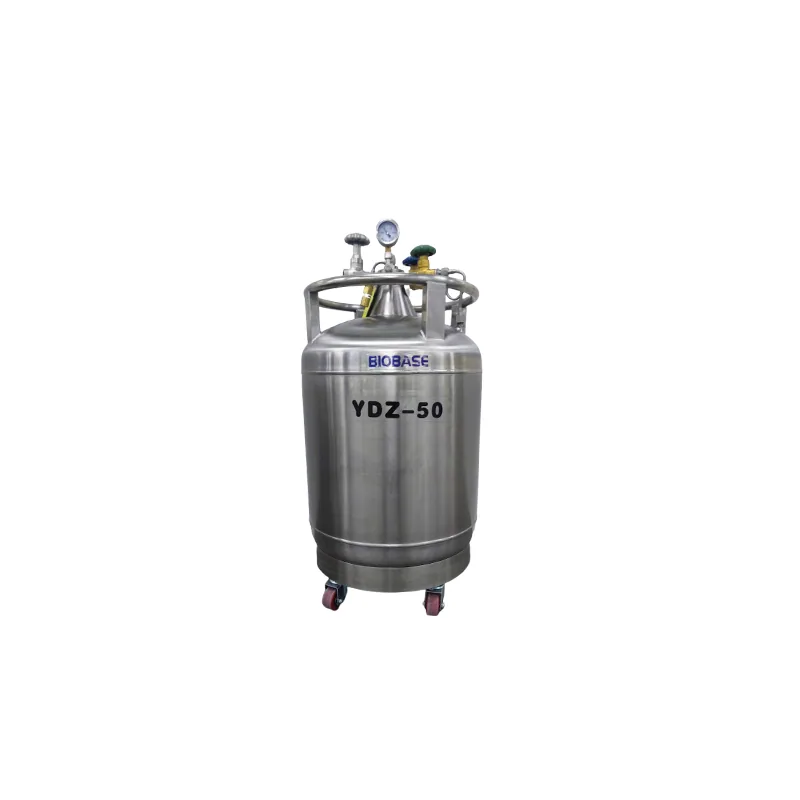

BIOBASE Self-pressurized Liquid Nitrogen Container YDZ Series
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Self-pressurized Liquid Nitrogen Container YDZ Series is listed in VVON's liquid nitrogen & cryogenic storage range for Bangladesh. Published models: YDZ-30, YDZ-50, YDZ-100, YDZ-200. Match vessel capacity, neck size, sample racks and storage or transport use. For a quotation, send the vessel capacity, sample type, rack format, holding time and intended use. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | Unit | YDZ-30 | YDZ-50 | YDZ-100 | YDZ-200 |
|---|---|---|---|---|---|
| Capacity | L | 30 | 50 | 100 | 200 |
| Caliber | mm | 50 | 50 | 50 | 50 |
| Empty Weight | kg | 56 | 62.5 | 85 | 136.8 |
| Outer Diameter | mm | 404 | 454 | 556 | 656 |
| Height | mm | 885 | 998 | 1120 | 1330 |
| Static Evaporation Rate | % | 2.5 | 2 | 1.3 | 1.2 |
| Standard Working Pressure | MPa | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum Working Pressure | MPa | 0.09 | 0.09 | 0.09 | 0.09 |
| Primary Safety Valve Opening Pressure | MPa | 0.099 | 0.099 | 0.099 | 0.099 |
| Second Safety Valve Opening Pressure | MPa | 0.15 | 0.15 | 0.15 | 0.15 |
| Pressure Gauge Range | MPa | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 |
| Standard Accessory | pc | 1pc of 1.5m liquid nitrogen output hose | 1pc of 1.5m liquid nitrogen output hose | 1pc of 1.5m liquid nitrogen output hose | 1pc of 1.5m liquid nitrogen output hose |
| Package Size | mm | 465*465*1035 | 505*505*1135 | 615*615*1290 | 700*700*1450 |
| Gross Weight | kg | 68 | 78.5 | 85 | 154.8 |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
