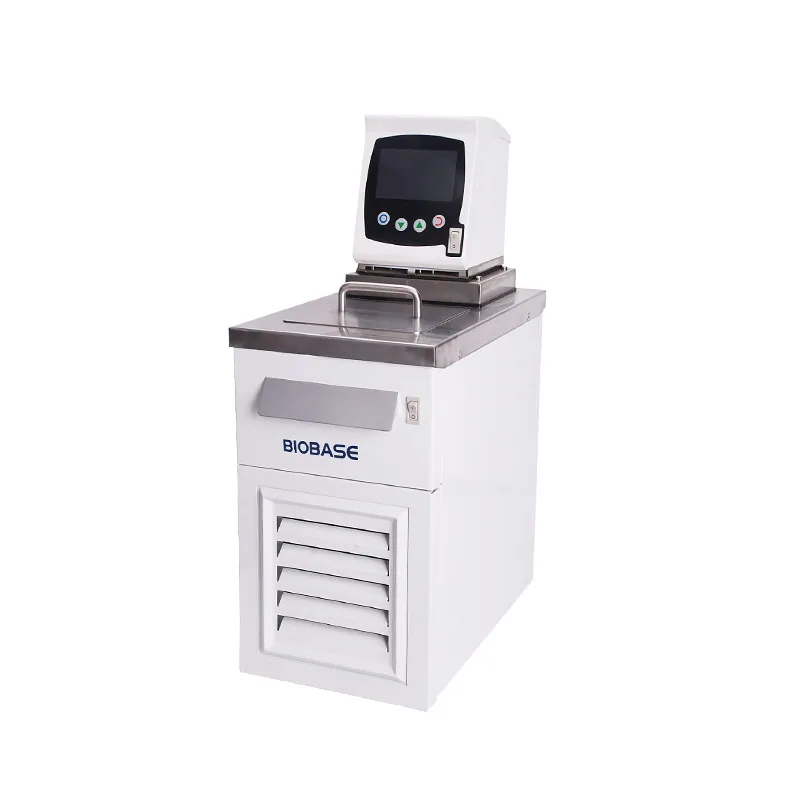

BIOBASE Refrigerated and Heating Circulator (Customized)
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Refrigerated and Heating Circulator (Customized) is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: BKL6-05, BKH6-05, BKL6-20, BKH6-20. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKL6-05 | BKH6-05 | BKL6-20 | BKH6-20 |
|---|---|---|---|---|
| Working Temp.Range | -5℃~100℃ | -5℃~200℃ | -20℃~100℃ | -20℃~200℃ |
| Temp.Control | PID | PID | PID | PID |
| Temp.Stability | ±0.03℃ | ±0.03℃ | ±0.03℃ | ±0.03℃ |
| Temp.Sensor | PT100 | PT100 | PT100 | PT100 |
| Display Resolution | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Heater Consumption | 2000 W | 2000 W | 2000 W | 2000 W |
| Cooling Consumption | 250W | 250W | 250W | 250W |
| Refrigerant | R134a | R134a | R134a | R134a |
| Pump Capacity Pressure | 0.35bar | 0.35bar | 0.35bar | 0.35bar |
| Pump Flow Rate | 10L/min | 10L/min | 10L/min | 10L/min |
| Ambient Temp. | -20～70℃ | -20～70℃ | -20～70℃ | -20～70℃ |
| Filling Volume | 6L | 6L | 6L | 6L |
| Power Supply | AC220V±10%,50Hz | AC220V±10%,50Hz | AC220V±10%,50Hz | AC220V±10%,50Hz |
| Bath Opening(W*D) | 160*160mm | 160*160mm | 160*160mm | 160*160mm |
| Bath Dimensions(W*D*H) | 320*180*150mm | 320*180*150mm | 320*180*150mm | 320*180*150mm |
| External Size(W*D*H) | 400*250*650mm | 400*250*650mm | 400*250*650mm | 400*250*650mm |
| Package Size(W*D*H) | 590*420*930mm | 590*420*930mm | 590*420*930mm | 590*420*930mm |
| Gross Weight | 43.5kg | 43.5kg | 43.5kg | 43.5kg |
Manufacturer catalogue checked 2026-09-28.
