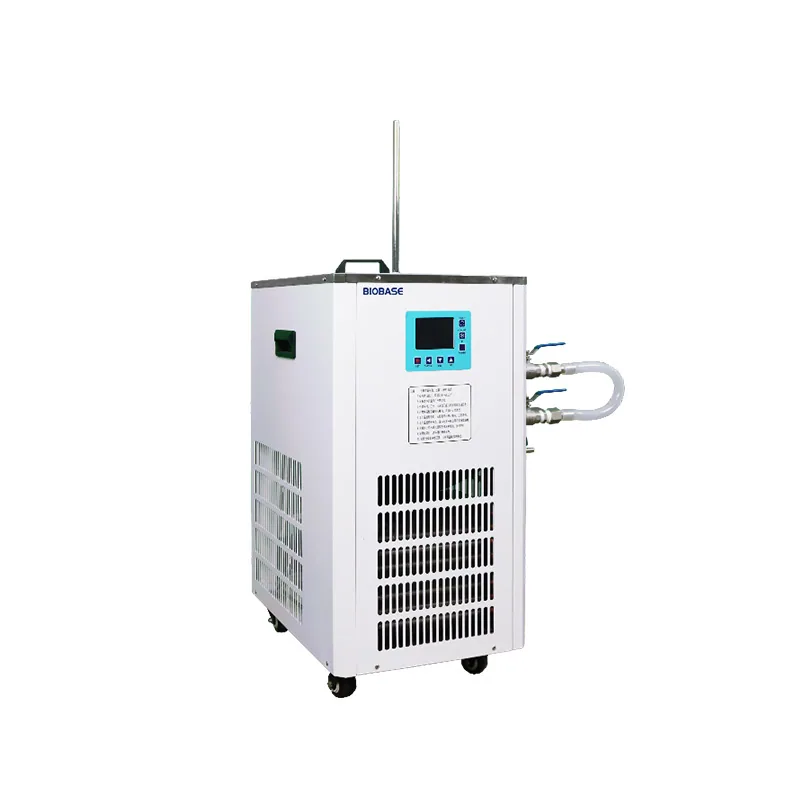

BIOBASE Refrigerated and Heating Circulator

Brand: BIOBASE | Category: Scientific & Laboratory Equipment

BIOBASE Refrigerated and Heating Circulator is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: BJPX-DL5/10, BJPX-DL5/20, BJPX-DL10/10, BJPX-DL10/10-L, BJPX-DL10/20. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications

Model	BJPX-DL5/10	BJPX-DL5/20	BJPX-DL10/10	BJPX-DL10/10-L	BJPX-DL10/20
Temperature Control Range	-10~100℃	-20~100℃	-10~100℃	-10~100℃	-20~100℃
Display Mode	LCD	LCD	LCD	LCD	LCD
Temperature Control Accuracy	±0.1℃	±0.1℃	±0.1℃	±0.1℃	±0.1℃
Liquid Storage Capacity	5L	5L	10L	10L	10L
Cooling Capacity	319~1328W	263~1328W	884~1894W	280~1100W	813~2733W
Refrigerant	R134a	R134a	R134a	R134a	R134a
Control Method	Intelligent digital display PID temperature control	Intelligent digital display PID temperature control	Intelligent digital display PID temperature control	Intelligent digital display PID temperature control	Intelligent digital display PID temperature control
Refrigerant Cooling Method	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Insulation Material	Rubber and plastic insulation pipe	Rubber and plastic insulation pipe	Rubber and plastic insulation pipe	Rubber and plastic insulation pipe	Rubber and plastic insulation pipe
Safety Protection	Leakage, overload, delay, overcurrent	Leakage, overload, delay, overcurrent	Leakage, overload, delay, overcurrent	Leakage, overload, delay, overcurrent	Leakage, overload, delay, overcurrent
Opening Size	φ190mm	φ190mm	φ200mm	160*120mm	φ200mm
Liquid Storage Tank	φ220*180mm	φ220*180mm	φ250*250mm	280*200*180mm	φ250*250mm
Circulation Power	40W	40W	40W	40W	40W
Flow Rate	20L/min	20L/min	20L/min	8L/min	20L/min
Maximum Lift	4~6m	4~6m	4~6m	2.4m	4~6m
Power Supply	AC220V, 50/60Hz	AC220V, 50/60Hz	AC220V, 50/60Hz	AC220V, 50/60Hz	AC220V, 50/60Hz
Product Size(W*D*H)	360*520*760mm	360*520*760mm	360*520*720mm	360*400*850mm	360*520*720mm
Net Weight	38kg	38kg	45kg	45kg	45kg
Packing Size(W*D*H)	660*860*1150mm	660*860*1150mm	660*860*1150mm	420*530*870mm	660*860*1150mm
Gross Weight	48kg	48kg	50kg	50kg	50kg

Manufacturer catalogue checked 2026-09-28.

View on manufacturer website

Get a Quote

Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.

Useful details to share

• Intended application, process or teaching activity
• Required capability and equipment it must work with

Share what you know. You can start with your name and a phone number or email; final specifications can follow.

Request a Quote

Not sure which configuration you need? Help me choose

Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.

Phone: +8801805987890 | Email: info@vvon.com.bd
