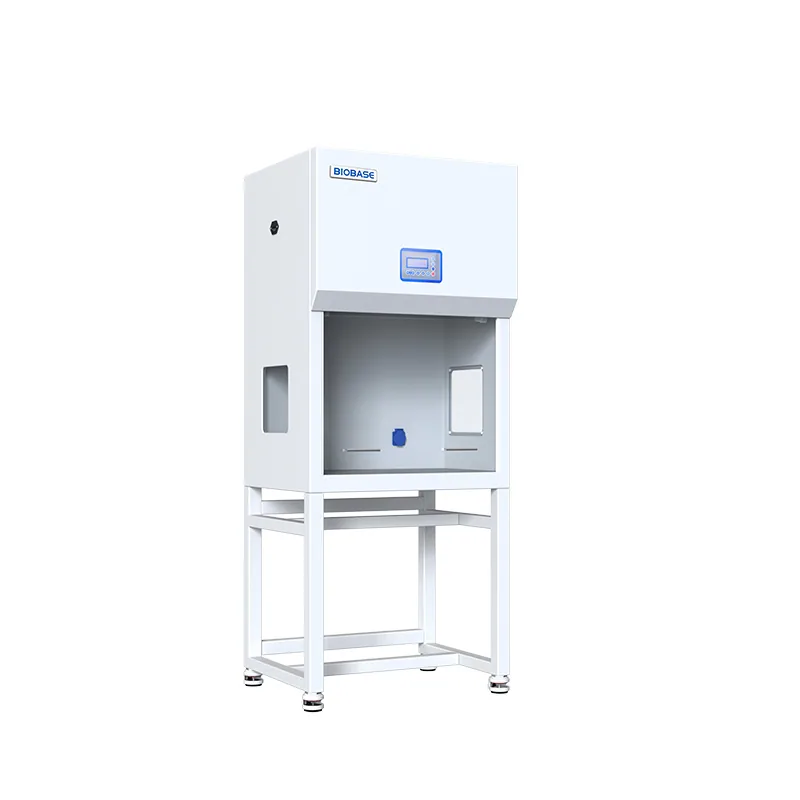

BIOBASE PP Vertical Laminar Flow Cabinet BKCB-800P
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE PP Vertical Laminar Flow Cabinet BKCB-800P is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: BKCB-800P, BKCB-1000P, BKCB-1200P, BKCB-1500P. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKCB-800P | BKCB-1000P | BKCB-1200P | BKCB-1500P |
|---|---|---|---|---|
| External Size(W*D*H) | 800*710*1800mm | 1000*710*1800mm | 1200*710*1800mm | 1500*710*1800mm |
| Internal Size(W*D*H) | 780*540*550mm | 980*540*550mm | 1180*540*550mm | 1480*540*550mm |
| Work Surface Height | 750mm | 750mm | 750mm | 750mm |
| Material | Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion | Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion | Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion | Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion |
| Side Window | 5mm toughened glass, anti-UV | 5mm toughened glass, anti-UV | 5mm toughened glass, anti-UV | 5mm toughened glass, anti-UV |
| Front Window | Manual | Manual | Manual | Manual |
| Pre-filter | Polyester fiber | Polyester fiber | Polyester fiber | Polyester fiber |
| HEPA Filter | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm |
| Airflow Velocity | 0.3~0.5m/s | 0.3~0.5m/s | 0.3~0.5m/s | 0.3~0.5m/s |
| Noise | ≤65dB | ≤65dB | ≤65dB | ≤65dB |
| Max Opening | 400mm | 400mm | 400mm | 400mm |
| UV Lamp | 20W*1 | 20W*1 | 20W*1 | 20W*1 |
| LED Lamp | 8W*1 | 8W*1 | 8W*1 | 8W*1 |
| Illumination | ≥350lx | ≥350lx | ≥350lx | ≥350lx |
| Caster | Footmaster caster | Footmaster caster | Footmaster caster | Footmaster caster |
| Waterproof Socket | One, total load≤500W | One, total load≤500W | One, total load≤500W | One, total load≤500W |
| Consumption | 650W | 650W | 700W | 850W |
| Standard Accessory | UV lamp*1, LED lamp*1, Waterproof socket*1, Base stand | UV lamp*1, LED lamp*1, Waterproof socket*1, Base stand | UV lamp*1, LED lamp*1, Waterproof socket*1, Base stand | UV lamp*1, LED lamp*1, Waterproof socket*1, Base stand |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) |
| Package Size(W*D*H) | 950*950*1300mm | 1150*950*1300mm | 1350*950*1300mm | 1650*950*1300mm |
| Gross Weight | 90kg | 110kg | 130kg | 150kg |
Manufacturer catalogue checked 2026-09-28.
