Brand: BIOBASE | Category: Scientific & Laboratory Equipment

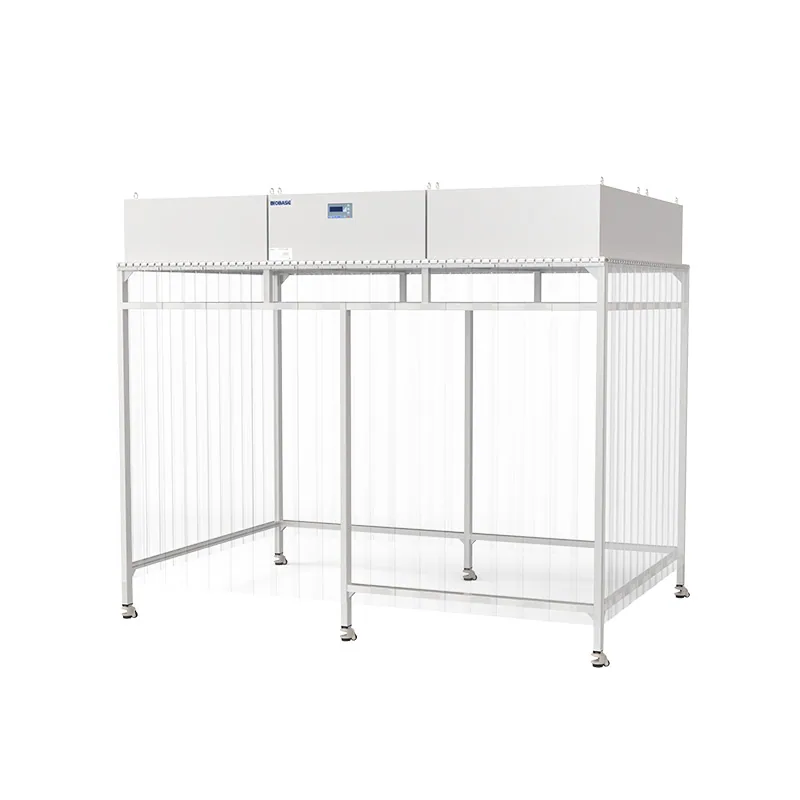

BIOBASE Clean Booth(Down Flow Booth) is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: BKCB-1500, BKCB-2000, BKCB-3000, BKCB-5000. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKCB-1500 | BKCB-2000 | BKCB-3000 | BKCB-5000 |
|---|---|---|---|---|
| External Size(W*D*H) | 2000*1500*2530mm | 3000*2000*2530mm | 4000*3000*2530mm | 5000*5000*2530mm |
| Internal Size(W*D*H) | 1920*1380*2140mm | 2920*1880*2115mm | 3880*2880*2095mm | 4880*4880*2095mm |
| HEPA Filters | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm |
| Consumption | 800W | 1500W | 2800W | 5500W |
| FFU Nos. | 4pcs | 6pcs | 12pcs | 25pcs |
| Clean Level | ISO 5(Class 100), Class A | ISO 5(Class 100), Class A | ISO 5(Class 100), Class A | ISO 5(Class 100), Class A |
| Control System | Microprocessor control system | Microprocessor control system | Microprocessor control system | Microprocessor control system |
| Rectangular Tube Material | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Wall Material | Anti-static dustproof curtain | Anti-static dustproof curtain | Anti-static dustproof curtain | Anti-static dustproof curtain |
| Blower | Built-in centrifugal blower, Speed adjustable | Built-in centrifugal blower, Speed adjustable | Built-in centrifugal blower, Speed adjustable | Built-in centrifugal blower, Speed adjustable |
| UV Lamp | 40W*2 | 40W*2 | 40W*3 | 40W*5 |
| UV Lamp | Emission of 253.7nanometers with UV timer | Emission of 253.7nanometers with UV timer | Emission of 253.7nanometers with UV timer | Emission of 253.7nanometers with UV timer |
| Illuminating Lamp | 16W*1 | 16W*2 | 16W*3 | 16W*5 |
| Illuminating Lamp | LED lamp, Illumination: ≥300lux | LED lamp, Illumination: ≥300lux | LED lamp, Illumination: ≥300lux | LED lamp, Illumination: ≥300lux |
| Air Velocity | 0.1~0.6m/s, average 0.45m/s | 0.1~0.6m/s, average 0.45m/s | 0.1~0.6m/s, average 0.45m/s | 0.1~0.6m/s, average 0.45m/s |
| Noise | ≤75db | ≤75db | ≤75db | ≤75db |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Gross Weight | 390kg | 670kg | 1100kg | 2900kg |
| Net Weight | 355kg | 625kg | 1020kg | 2800kg |
| Package Size(W*D*H) | 2110*930*920mm 2280*660*500mm | 3080*980*1280mm 3080*660*550mm | 3200*880*980mm*1 3200*1820*1350mm*1 | 4080*980*1280mm*3 1260*660*1280mm 5080*460*500mm |
| Customized design for clean level, size or material is available. | Customized design for clean level, size or material is available. | Customized design for clean level, size or material is available. | Customized design for clean level, size or material is available. | Customized design for clean level, size or material is available. |
Manufacturer catalogue checked 2026-09-28.
