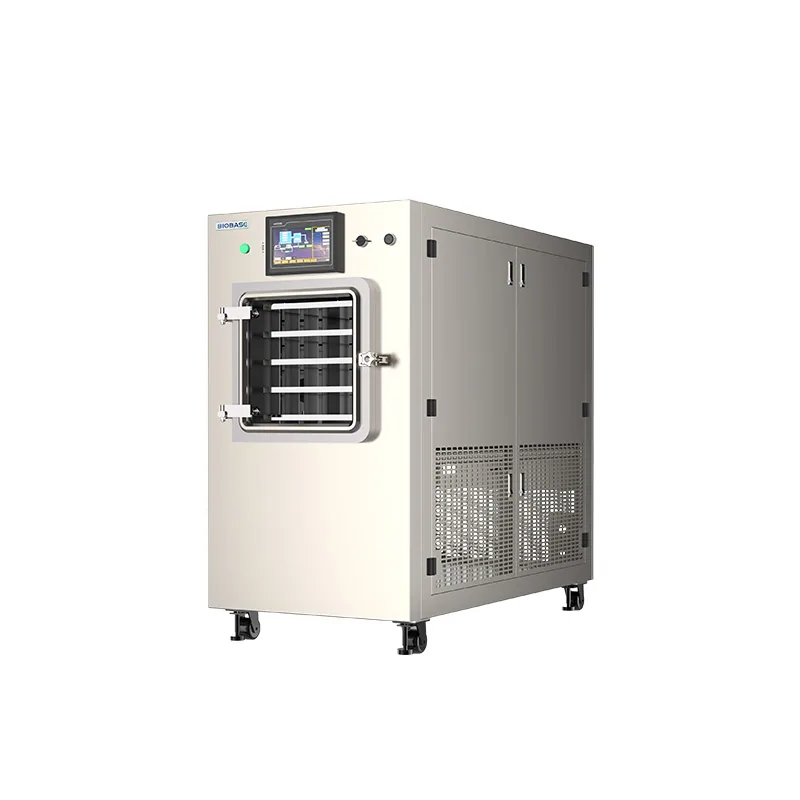

BIOBASE Pilot Freeze Dryer BK-PFD20S BK-PFD20T BK-PFD30S BK-PFD30T
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Pilot Freeze Dryer BK-PFD20S BK-PFD20T BK-PFD30S BK-PFD30T is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-PFD20S, BK-PFD20T, BK-PFD30S, BK-PFD30T. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-PFD20S | BK-PFD20S | BK-PFD20T | BK-PFD30S | BK-PFD30T |
|---|---|---|---|---|---|
| Type | Standard | Standard | Stoppering | Standard | Stoppering |
| Freeze Drying Area | 0.3m^(2) | 0.3m^(2) | 0.2m^(2) | 0.4m^(2) | 0.3m^(2) |
| Shelf Temperature | -55℃～+70℃(no-loading) | -55℃～+70℃(no-loading) | -55℃～+70℃(no-loading) | -55℃～+70℃(no-loading) | -55℃～+70℃(no-loading) |
| Cold Trap Temperature | <-80℃(no-loading) | <-80℃(no-loading) | <-80℃(no-loading) | <-80℃(no-loading) | <-80℃(no-loading) |
| Vacuum Degree | ≤1Pa(no-loading) | ≤1Pa(no-loading) | ≤1Pa(no-loading) | ≤1Pa(no-loading) | ≤1Pa(no-loading) |
| Water Capture Capacity | ≥6kg/24h | ≥6kg/24h | ≥6kg/24h | ≥8kg/24h | ≥8kg/24h |
| Cold Trap Volume | 15L | 15L | 15L | 20L | 20L |
| Cold Trap Size(Diameter*H) | Φ200*450 mm | Φ200*450 mm | Φ200*450 mm | Φ220*520 mm | Φ220*520 mm |
| Drying Chamber Size(W*D*H) | 330*320*470mm | 330*320*470mm | 420*320*490mm | 400*350*430mm | 380*380*540mm |
| Shelf Size(W*D*H) | Shelf: 400*270*20mm | Shelf: 400*270*20mm | Shelf: 400*270*20mm | Shelf: 340*300*20mm | Shelf: 340*300*20mm |
| Qty. of Shelf&Tray | Shelf: 3+1,Tray: 3 | Shelf: 3+1,Tray: 3 | Shelf: 2+1,Tray: 2 | Shelf: 4+1,Tray: 4 | Shelf: 3+1,Tray: 3 |
| Sample Loading Capacity(Liquid) | 3L | 3L | 2L | 4L | 3L |
| Height Between Trays | 70mm | 70mm | 100mm | 50mm | 70mm |
| Tray Temperature Difference | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Refrigerant | R404A+R23 | R404A+R23 | R404A+R23 | R404A+R23 | R404A+R23 |
| Condenser Cooling Mode | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
| Defrost Mode | Electric defrosting | Electric defrosting | Electric defrosting | Natural defrosting | Electric defrosting |
| Total Qty. of Vial | Ф12mm Ф16mm Ф22mm | / | 1554 868 440 | / | 2187 1200 654 |
| Vacuum Pump | 4L/S(14.4m3/h) | 4L/S(14.4m3/h) | 4L/S(14.4m3/h) | 6L/S(22m3/h) | 6L/S(22m3/h) |
| Optional Accessory: | Import vacuum pump Vacuum pump anti-return valve Oil mist filtration system Vacuum adjustment device | Import vacuum pump Vacuum pump anti-return valve Oil mist filtration system Vacuum adjustment device | Import vacuum pump Vacuum pump anti-return valve Oil mist filtration system Vacuum adjustment device | Import vacuum pump Vacuum pump anti-return valve Oil mist filtration system Vacuum adjustment device | Import vacuum pump Vacuum pump anti-return valve Oil mist filtration system Vacuum adjustment device |
| Silicone Oil Heating Rods Consumption | 600W | 600W | 600W | 600W | 600W |
| Total Consumption | 3KW | 3KW | 4KW | 4.5KW | 5.5KW |
| Power Supply | AC220V, 50Hz/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V, 50Hz/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V, 50Hz/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V, 50Hz/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V, 50Hz/60Hz(Standard); AC110V, 60Hz(Optional) |
| Main Body Weight | 300kg | 300kg | 400kg | 300kg | 400kg |
| External Size(W*D*H) | 1033*781*1580mm | 1033*781*1580mm | 1033*781*1704mm | 825*928*1366mm | 853*1277*1679mm |
| Packing Size(W*D*H) And Gross Weight | Main Body | 1433*1081*1880mm/330kg | 1433*1081*2004mm/330kg | 1225*1228*1666mm/430kg | 1225*1577*1979mm/430kg |
| Packing Size(W*D*H) And Gross Weight | Vacuum Pump | 770*350*450mm/65kg | 770*350*450mm/65kg | 770*350*450mm/65kg | 770*350*450mm/65kg |
Manufacturer catalogue checked 2026-09-28.
