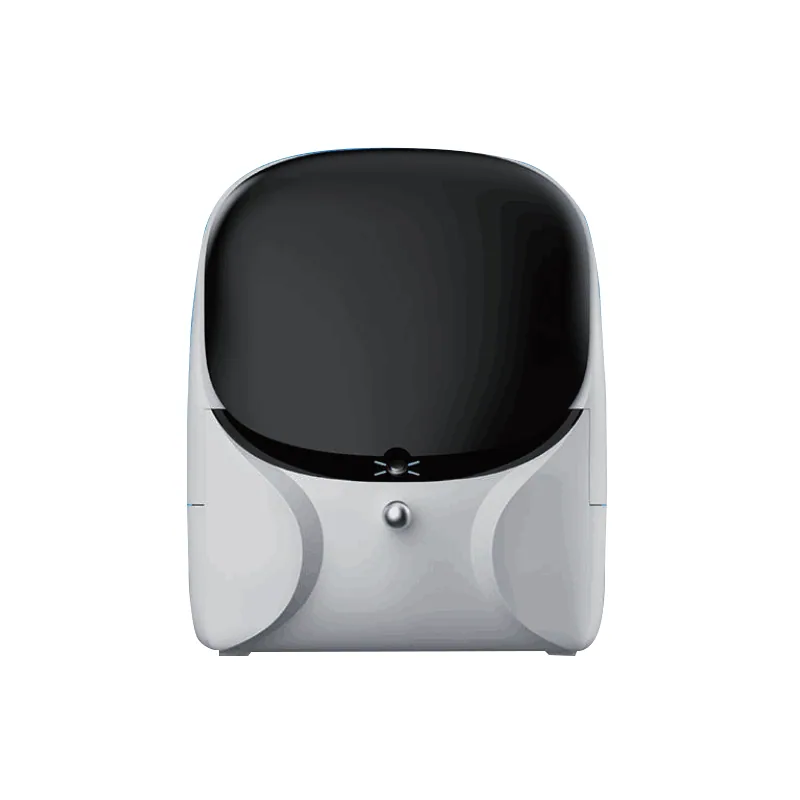

BIOBASE Nucleic Acid Fragment Analyzer
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Nucleic Acid Fragment Analyzer is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Reagent Type | Adaptable Sizing Range | Sensitivity | Quanitification Range | Sample Loading | Integrity | Sample Scalability | Chips |
|---|---|---|---|---|---|---|---|
| DNA 1K | 35-1,000 bp dsDNA fragment | 0.1 ng/μL | 0.1 -50 ng/μL | 1μL | - | 1-16 | 6 |
| High Sensitivity DNA 1K | 35-1,000 bp dsDNA fragment | 5 pg/μL | 10-1,000 pg/μL | 2μL | - | 1-16 | 6 |
| DNA 5K | 100-5,000 bp dsDNA fragment | 0.1 ng/μL | 0.1-50 ng/μL | 1μL | - | 1-16 | 6 |
| High Sensitivity DNA 5K | 100-5,000 bp dsDNA fragment | 5 pg/μL | 10-1,000 pg/μL | 2μL | - | 1-16 | 6 |
| Genomic DNA | 200-60,000+ bp dsDNA fragment | 0.5 ng/μL | 10-100 ng/μL | 1μL | √ | 1-16 | 6 |
| High Sensitivity Genomic DNA | 200-60,000+ bp dsDNA fragment | 20 pg/μL | 0.5-10 ng/μL | 2μL | √ | 1-16 | 6 |
| cfDNA | 50-800 bp ds DNA fragment | 20 pg/μL | 100-4,000 pg/μL | 2μL | - | 1-16 | 6 |
| RNA | Eukaryotic/ProkaryoticTotal RNA | 5 ng/μL | 25-500 ng/μL | 1μL | √ | 1-16 | 6 |
| High Sensitivity RNA | Eukaryotic/ProkaryoticTotal RNA | 100 pg/μL | 500-10,000 pg/μL | 2μL | √ | 1-16 | 6 |
| PN | Product |
|---|---|
| M000047 | Fragment Analyzer-BK-NAF96 |
| M000058 | DNA 1K Fragment Analysis Reagent Kit |
| M000059 | DNA 5K Fragment Analysis Reagent Kit |
| M000060 | High Sensitivity DNA 1K Fragment Analysis Reagent Kit |
| M000061 | High Sensitivity DNA 5K Fragment Analysis Reagent Kit |
| M000062 | Genomic DNA Fragment Analysis Reagent Kit |
| M000063 | High Sensitivity Genomic DNA Fragment Analysis Reagent Kit |
| M000064 | cfDNA Fragment Analysis Reagent Kit |
| M000065 | RNA Fragment Analysis Reagent Kit |
| M000066 | High Sensitivity RNA Fragment Analysis Reagent Kit |
| Dimensions (W XD X H) | 590 mmx420 mmx500 mm |
|---|---|
| Net Weight | 25 kg |
| Power | 500 VA |
| Power Requirements | AC 100~240 V,50/60 Hz |
| Operating Environment | Temperature:-10°C~50°C Relative humidity: 15%-85%(non-condensing) Altitude: below 3000 meter |
| Computer Configuration | CPU: 15-13500H 2.6GHz Memory:16 GB Hard disk: 500 GB Operating system: Microsoft Windows 11 |
Manufacturer catalogue checked 2026-09-28.
