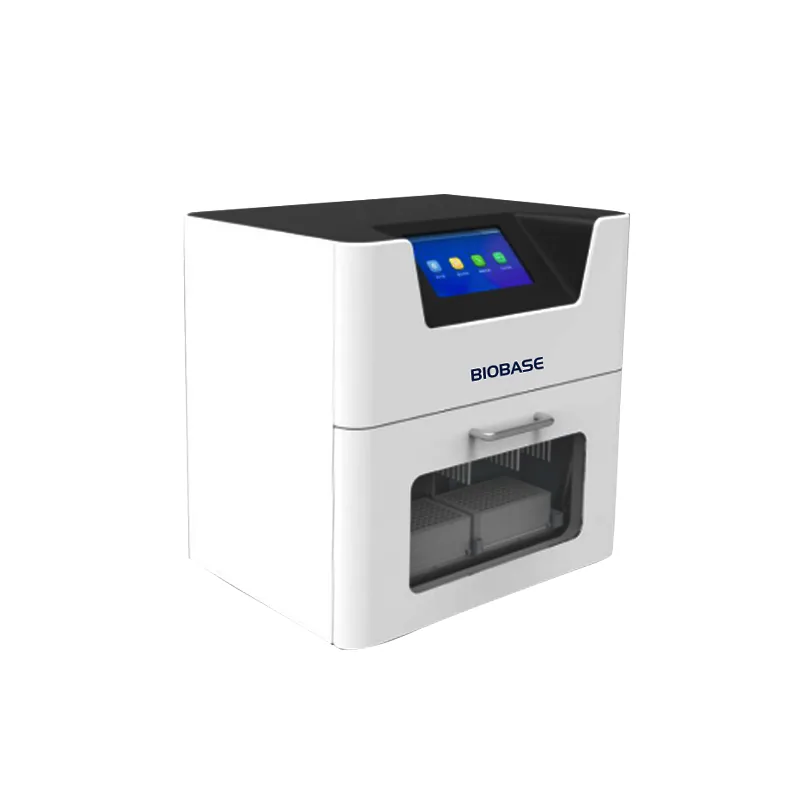

BIOBASE Nucleic Acid Extractor System BNP32 BNP48
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Nucleic Acid Extractor System BNP32 BNP48 is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: BNP32, BNP48. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BNP32 | BNP48 |
|---|---|---|
| Sample Quantity | 32 | 48 |
| Processing Volume | 60µl~1000µl | 60µl~1000µl |
| Sample Volume | 20~500µl | 20~500µl |
| Sample Throughput | 1~32 | 1~48 |
| Magnetic Bead Recovery | >98% | >98% |
| Extracting the Difference Between Holes | CV≤3% | CV≤3% |
| Heating Temperature | 8 independent heating modules, customize lysis and elution temperature(temperature range) according to your needs | 8 independent heating modules, customize lysis and elution temperature(temperature range) according to your needs |
| Oscillating Mixing | Low, medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume | Low, medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume |
| Reagent Type | Magnetic bead open platform | Magnetic bead open platform |
| Extraction Time | 8~60min/round(depending on the reagent used) | 8~60min/round(depending on the reagent used) |
| Internal Program | 48 groups | 50000 groups |
| Program Management | Powerful program editing capabilities to meet different reagent needs U disk program import and export can be achieved | Powerful program editing capabilities to meet different reagent needs U disk program import and export can be achieved |
| Safety Door Design | After the safety door is opened, the program operation will be automatically suspended, and the program can continue t run after the safety door closed | After the safety door is opened, the program operation will be automatically suspended, and the program can continue t run after the safety door closed |
| Built-in Air Duct | Yes | Yes |
| Ultraviolet Irradiation | Yes | Yes |
| Packing Size(W*D*H) | 580*510*700mm | 700*520*750mm |
| Gross Weight | 51kg | 80kg |
Manufacturer catalogue checked 2026-09-28.
