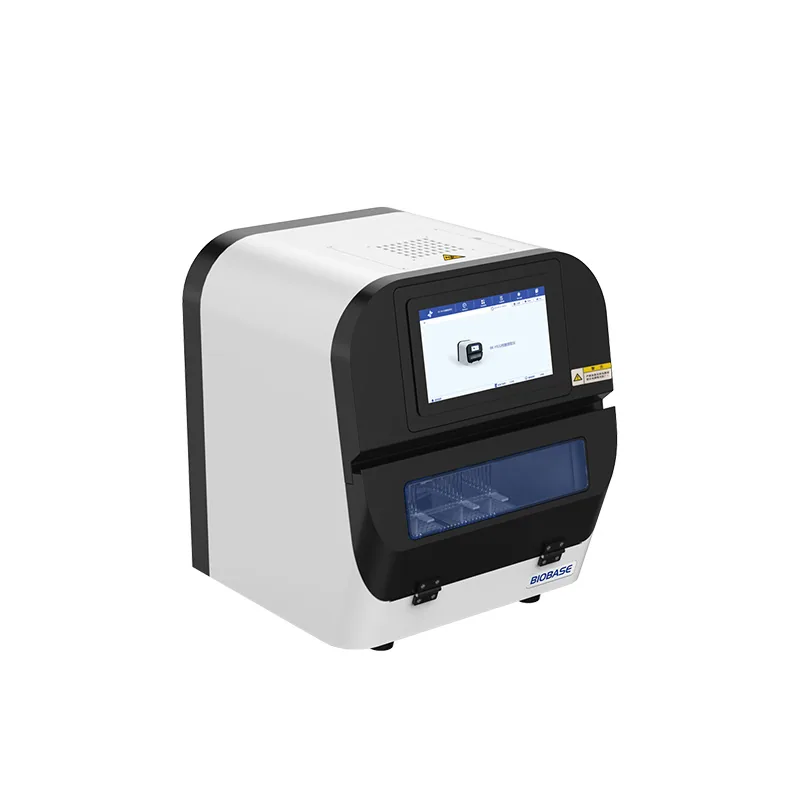

BIOBASE Nucleic Acid Extractor BK-HS32
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Nucleic Acid Extractor BK-HS32 is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: BK-HS32. Published details include Sample Capacity: 32; Processing Volume: 20~1000μl. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-HS32 |
|---|---|
| Extraction Method | Magnetic beads |
| Sample Capacity | 32 |
| Processing Volume | 20~1000μl |
| Extraction Time | 15~60min |
| Magnetic Bead Recovery | ≥98% |
| Extraction Difference Between Wells | ＜3% |
| Magnetic Rod Flux | 4500Gs |
| Temperature Range | Adjustable heating function, RT~100 ℃ |
| Oscillating Mixing | Vertical mixing, low, medium, high three gears adjustable |
| Module Station | 2 |
| Protection Function | Star up self-checking, power off protection, high temperature alarm, over temperature protection, motor protection |
| Disinfection Method | 8W UV lamp |
| Illuminating Lamp | 3.4W LED lamp |
| Operation Interface | 10.1 inch capacitive touch screen/Windows system |
| Barcode Scanning Function | Optional external barcode scanner |
| Project Storage | >1000 |
| Interface | 2 USB port, optional LAN port |
| Contamination Control | Class II HEPA filter can effectively filter the internal aerosol and prevent cross contamination |
| IAP Function | Firmware can be updated online at any time |
| Power Supply | AC100~240V, 50Hz/60Hz |
| External Size(W*D*H) | 460*470*480mm |
| Package Size(W*D*H) | 538*538*750mm |
| Gross Weight | 37kg |
Manufacturer catalogue checked 2026-09-28.
