Brand: BIOBASE | Category: Scientific & Laboratory Equipment

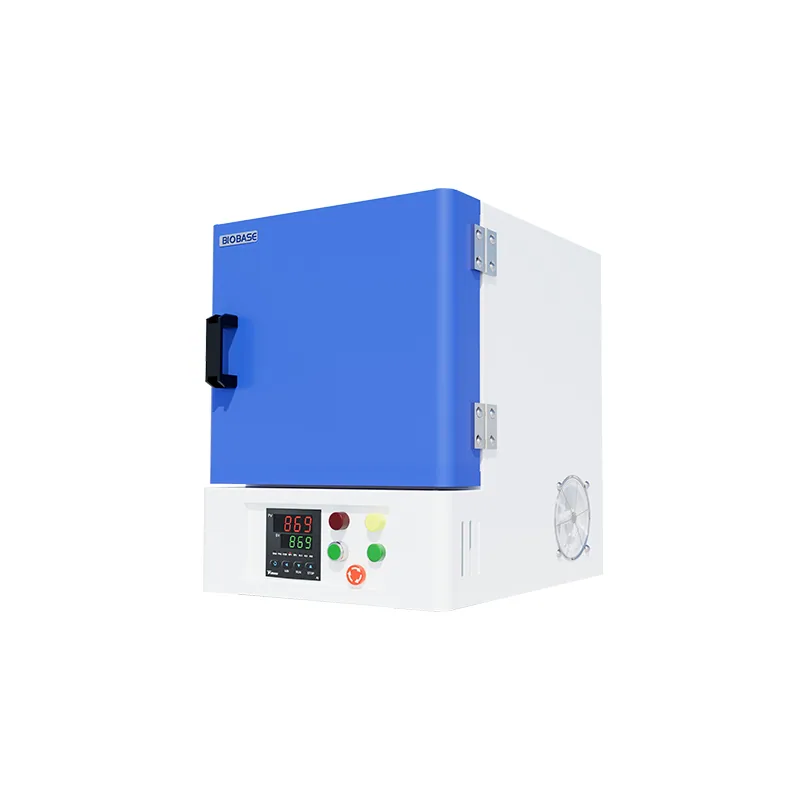

BIOBASE Muffle Furnace 2L 7.2L 16L 30L is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: MX2-10T/TP, MX7-10T/TP, MX16.5-10T/TP, MX30.5-10T/TP. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MX2-10T/TP | MX7-10T/TP | MX16.5-10T/TP | MX16.5-10T/TP | MX30.5-10T/TP |
|---|---|---|---|---|---|
| Max. Temp.(℃) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Capacity(L) | 2 | 8 | 16 | 30 | 30 |
| Temp. Accuracy(℃) | 1 | 1 | 1 | 1 | 1 |
| Temp. Uniformity(℃) | ±15 | ±15 | ±15 | ±15 | ±15 |
| Rising Time(Empty) | 40 minutes | 40 minutes | 40 minutes | 40 minutes | 40 minutes |
| Material | External material: cold rolled steel carbon steel spraying Internal material: ceramic inner chamber | External material: cold rolled steel carbon steel spraying Internal material: ceramic inner chamber | External material: cold rolled steel carbon steel spraying Internal material: ceramic inner chamber | External material: cold rolled steel carbon steel spraying Internal material: ceramic inner chamber | External material: cold rolled steel carbon steel spraying Internal material: ceramic inner chamber |
| Heating Element | Iron-chromium-aluminum | Iron-chromium-aluminum | Iron-chromium-aluminum | Iron-chromium-aluminum | Iron-chromium-aluminum |
| Function | TP series has 50-segment programmable temperature control, T series only has a single temperature segment | TP series has 50-segment programmable temperature control, T series only has a single temperature segment | TP series has 50-segment programmable temperature control, T series only has a single temperature segment | TP series has 50-segment programmable temperature control, T series only has a single temperature segment | TP series has 50-segment programmable temperature control, T series only has a single temperature segment |
| Standard Accessory | Two crucibles, one pair of crucible pliers | Two crucibles, one pair of crucible pliers | Two crucibles, one pair of crucible pliers | Two crucibles, one pair of crucible pliers | Two crucibles, one pair of crucible pliers |
| Optional Accessory | Power off upon door opening, timing function | Power off upon door opening, timing function | Power off upon door opening, timing function | Power off upon door opening, timing function | Power off upon door opening, timing function |
| Consumption(KW) | 1.5 | 3.5 | 6 | 12 | 12 |
| Power Supply | Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz | Standard: AC380V, 50Hz | Standard: AC380V, 50Hz |
| Internal Size(W*D*H)mm | 200*120*80 | 300*200*120 | 400*250*160 | 500*300*200 | 500*300*200 |
| External Size(W*D*H)mm | 460*535*560 | 550*655*690 | 630*873*760 | 690*915*790 | 690*915*790 |
| Net Weight(kg) | 40 | 65 | 95 | 125 | 125 |
| Package Size(W*D*H)mm | 645*540*725 | 705*792*900 | 785*1025*1010 | 865*1025*1010 | 865*1025*1010 |
| Gross Weight(kg) | 60 | 93 | 128 | 169 | 169 |
Manufacturer catalogue checked 2026-09-28.
