Brand: BIOBASE | Category: Scientific & Laboratory Equipment

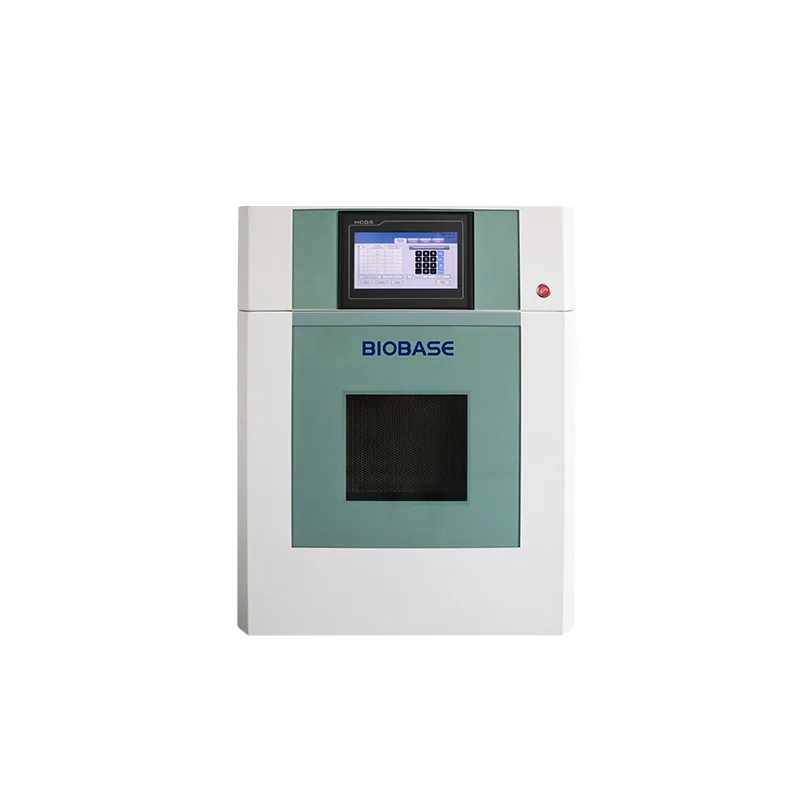

BIOBASE Microwave Digester BMD-10H BMD-12H BMD-Z40 is listed in VVON's sample digestion & laboratory reactors range for Bangladesh. Published models: BMD-10H, BMD-12H, BMD-Z40. Match sample chemistry, vessels, working volume and operating conditions. For a quotation, send the sample chemistry, vessel type, volume, temperature and pressure requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BMD-10H | BMD-12H | BMD-Z40 |
|---|---|---|---|
| Chamber | 52L, SS316 | 58L, SS316 | 72L, SS316 |
| Microwave Source | Professional microwave source, industrial microwave power supply | Professional microwave source, industrial microwave power supply | Professional microwave source, industrial microwave power supply |
| Microwave Frequency | 2450MHz | 2450MHz | 2450MHz |
| Microwave Output Power | 0~2000W | 1400~2800W | 1400~2800W |
| Display | 8"TFT-LED touch screen | 8"TFT-LED touch screen | 8"TFT-LED touch screen |
| Design Temp. | 300℃ | 300℃ | 300℃ |
| Temp. Accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Max. Pressure | 10MPa | 10MPa | 15MPa |
| Pressure Accuracy | ±0.01Mpa | ±0.01Mpa | ±0.01Mpa |
| Temperature Sensor | Non-contact infrared temperature sensor | Non-contact infrared temperature sensor | Non-contact infrared temperature sensor |
| Vessel Quantity Capacity | 10 vessels | 12 vessels | 40 vessels |
| Vessel Volume | 70ml(Standard), 100ml(Optional) | 70ml(Standard), 100ml(Optional) | 70ml(Standard), 100ml(Optional) |
| Vessel Material | Vessel made of TFM, explosion-proof outer vessel made of PEEK aerospace composite material | Vessel made of TFM, explosion-proof outer vessel made of PEEK aerospace composite material | Vessel made of TFM, explosion-proof outer vessel made of PEEK aerospace composite material |
| Cooling Method | Forced air cooling | Forced air cooling | Forced air cooling |
| Standard | Turntable bracket, PEEK explosion-proof outer*10, TFM inner vessel*10, infrared temperature sensor, graphite acid evaporator | Turntable bracket, PEEK explosion-proof outer*12, TFM inner vessel*12, infrared temperature sensor, graphite acid evaporator | Turntable bracket, PEEK explosion-proof outer*40, TFM inner vessel*40, infrared temperature sensor*2, graphite acid evaporator*2, transfer inner vessel bracket*2, spanner |
| Consumption | 2600W | 2600W | 2800W |
| Power Supply | AC220±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) | AC220±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) | AC220±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
| External Size(W*D*H) | 590*620*830mm | 590*620*830mm | 720*720*800mm |
| Package Size(W*D*H) | Main Body: 590*620*830mm Accessory: 820*300*130mm | Main Body: 590*620*830mm Accessory: 820*300*130mm | Main Body: 800*800*950mm Accessory: 200*250*250mm; 200*250*250mm |
| Gross Weight | Main Body: 75kg Accessory: 25kg | Main Body: 75kg Accessory: 27kg | Main Body: 100kg Accessory: 20kg; 20kg |
Manufacturer catalogue checked 2026-09-28.
