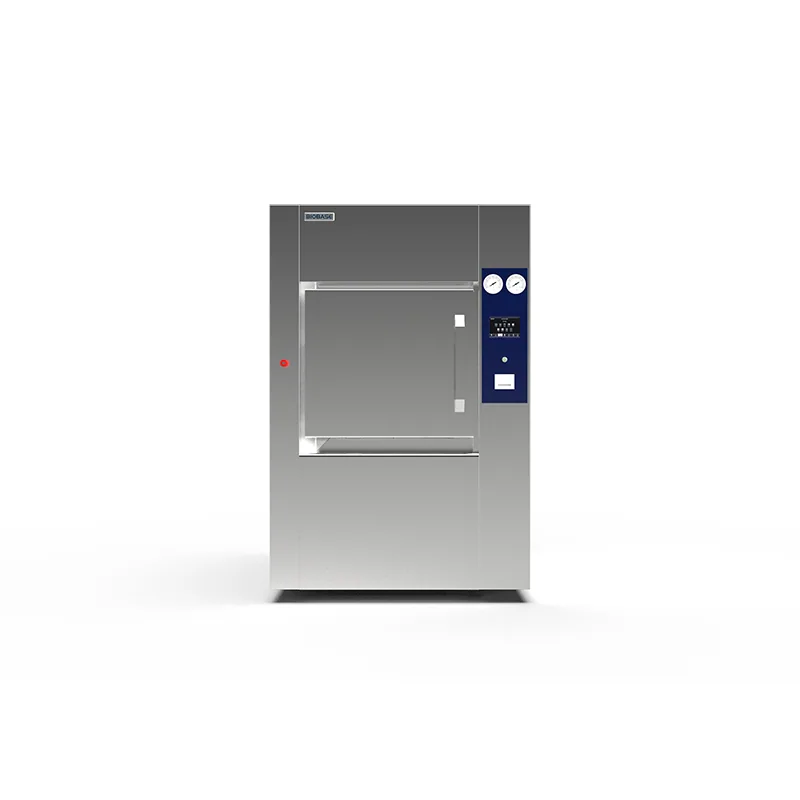

BIOBASE Large Horizontal Autoclave BKQ-Z450H BKQ-Z650H
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Large Horizontal Autoclave BKQ-Z450H BKQ-Z650H is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BKQ-Z450H, BKQ-Z650H. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKQ-Z450H | BKQ-Z650H |
|---|---|---|
| Capacity | 450L | 650L |
| Door | Automatic | Automatic |
| Display | 7-inch LCD touch screen | 7-inch LCD touch screen |
| Designed Pressure | Inner chamber: -0.1/0.3MPa; Jacket: 0.3MPa | Inner chamber: -0.1/0.3MPa; Jacket: 0.3MPa |
| Working Pressure | 0.21MPa | 0.21MPa |
| Designed Temp. | 150℃ | 150℃ |
| Max Working Temp. | 134℃ | 134℃ |
| Temp. Precision | 0.1℃ | 0.1℃ |
| Built-In Steam Generator | 0.8MPa | 0.8MPa |
| Sterilization Time | 1~99min | 1~99min |
| Drying Time | 1~99min | 1~99min |
| Vacuum system | Water circulating vacuum pump | Water circulating vacuum pump |
| Chamber Material | S30408 | S30408 |
| Chamber Size(W*D*H) | 672*1000*672mm | 672*1500*672mm |
| Altitude | ≤2000m | ≤2000m |
| Trolley | 2 external sterilization trolleys, 1 internal sterilization trolley | 2 external sterilization trolleys, 1 internal sterilization trolley |
| Standard Accessories | Trolleys, printer | Trolleys, printer |
| Optional Accessories | Sheet metal side cover, air compressor, liquid program | Sheet metal side cover, air compressor, liquid program |
| Consumption | 35kVA | 56kVA |
| Power Supply | AC380V, 50Hz(Standard); AC380V, 60Hz(Optional); AC220V, 50/60Hz(Three phase, Optional); Wiring Method: Air switch | AC380V, 50Hz(Standard); AC380V, 60Hz(Optional); AC220V, 50/60Hz(Three phase, Optional); Wiring Method: Air switch |
| External Size(L*W*H) | 1260*1314*2050mm | 1760*1314*1970mm |
| Net Weight | 1035kg | 1200kg |
| Package Size(L*W*H) | Main instrument: 1500*1424*2360mm; Trolleys: 1550*630*1900mm | Main instrument: 2000*1424*2295mm; Trolleys: 2050*630*1900mm |
| Gross Weight | Main instrument: 1220kg Trolleys: 150kg | Main instrument: 1440kg Trolleys: 170kg |
Manufacturer catalogue checked 2026-09-28.
