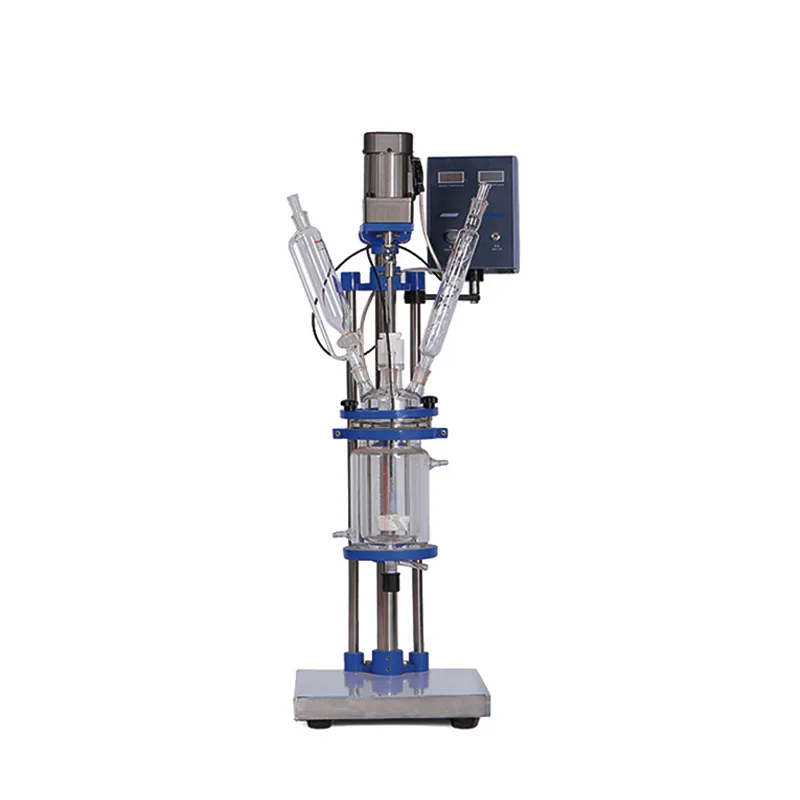

BIOBASE Jacketed Glass Reactor
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Jacketed Glass Reactor is listed in VVON's sample digestion & laboratory reactors range for Bangladesh. Published models: JGR-1L, JGR-2L, JGR-3L, JGR-5L, JGR-10L, JGR-20L. Compare the remaining models in the specification tables. Match sample chemistry, vessels, working volume and operating conditions. For a quotation, send the sample chemistry, vessel type, volume, temperature and pressure requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | JGR-1L | JGR-2L | JGR-3L | JGR-5L | JGR-10L | JGR-20L | JGR-30L | JGR-50L |
|---|---|---|---|---|---|---|---|---|
| Reaction Flask Capacity | 1L | 2L | 3L | 5L | 10L | 20L | 30L | 50L |
| Stirring Power | 60W, fan with 1:3 reduction gearbox | 60W, fan with 1:3 reduction gearbox | 60W, fan with 1:3 reduction gearbox | 60W, fan with 1:3 reduction gearbox | 120W, fan with 1:3 reduction gearbox | 120W, fan with 1:3 reduction gearbox | 120W, fan with 1:3 reduction gearbox | 120W, fan with 1:3 reduction gearbox |
| Stirring Speed | 0~450rpm | 0~450rpm | 0~450rpm | 0~450rpm | 0~450rpm | 0~450rpm | 0~450rpm | 0~450rpm |
| Stirring Shaft Diameter | 17mm | 17mm | 17mm | 17mm | 17mm | 17mm | 17mm | 17mm |
| Motor Torque | 1.27N.m | 1.27N.m | 1.27N.m | 1.27N.m | 2.42N.m | 2.42N.m | 2.42N.m | 2.42N.m |
| Power Supply | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz | Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz |
| Package Size (W*D*H) | 1260*430*480mm | 1270*430*480mm | 1310*590*540mm | 1310*600*540mm | 1230*610*750mm | 1340*650*780mm | 1690*660*780mm | 1690*660*780mm |
| Gross Weight | 40kg | 41kg | 51kg | 56kg | 74kg | 85kg | 101kg | 108kg |
Manufacturer catalogue checked 2026-09-28.
