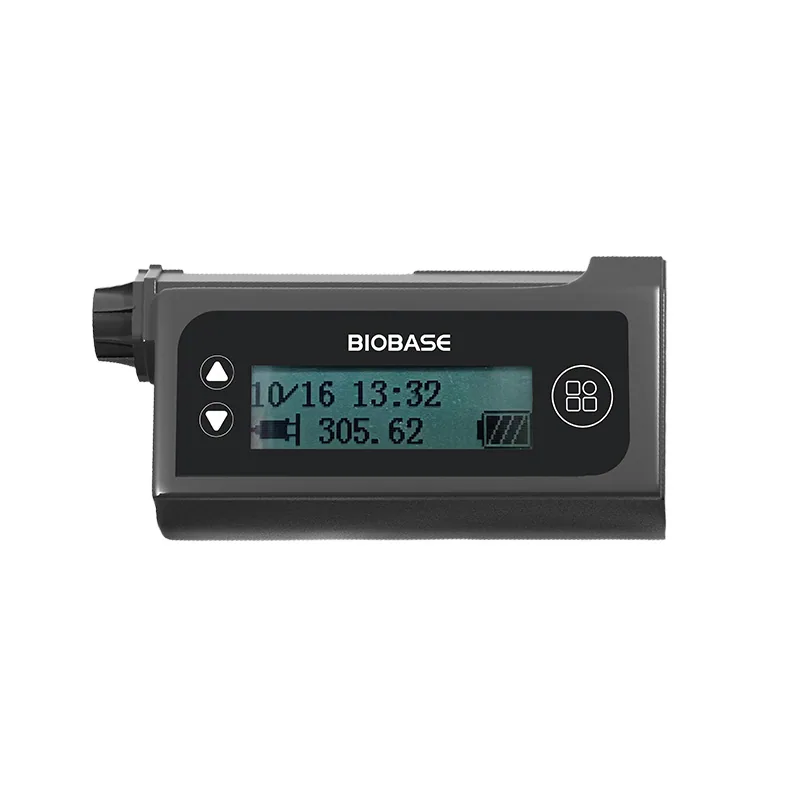

Brand: BIOBASE | Category: Medical Equipment
BIOBASE Insulin Pump is listed in VVON's patient monitoring & critical care range for Bangladesh. Published models: BK-IP01. Published details include Minimum Single Infusion Volume: 0.05U. Confirm the intended care setting, functions, accessories and operator training needs. For a quotation, send the care setting, patient group, required functions and accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-IP01 |
|---|---|
| Number of Basal Rate Segments | 24 programmable segments within a 24-hour cycle |
| Basal Dose Adjustment Increment | 0.1 U/0.05 U |
| Minimum Single Infusion Volume | 0.05U |
| Available Infusion Modes | Basal Infusion, Temporary Basal Rate, Standard Bolus, Extended Bolus |
| Basal Rate Programming | Full 24-hour programmable basal profile with total daily basal dose display |
| Max. Basal Infusion Rate | 0U/h~24U/h |
| Max. Standard Bolus Dose | 0.1U~24U |
| Compatible Insulin Concentration | 40U/mL, 100U/mL |
| Standard Bolus Setting Range | 0.1U up to user-set maximum bolus limit |
| Extended Bolus Options | 3 preset delivery profiles: Rectangular, Triangular, Square-wave; Max duration: 0–3 hours, adjustable in 15-minute increments |
| Daily Total Infusion Log | Stores and displays daily total insulin consumption for the most recent 128 days |
| Bolus History Log | Stores and retrieves the latest 128 entries of standard & extended bolus records |
| Infusion Stop Log | Records timestamp and numerically coded cause for up to 128 infusion suspension events |
| Reservoir Loading Function | Automatic plunger reset plus auto-calculation of loaded insulin volume |
| Alarm Notification | Audible buzzer + vibration alert |
| Electronic Configuration | Dual-CPU architecture |
| Infusion Tubing Connector | Standard Luer-lock connector |
| Waterproof Rating | IPX7 |
| Battery | CR10210, disposable, 30-day battery life |
| External Size(W*D*H) | 98*48*22 mm |
| Net Weight | 75 g |
| Packing Size(W*D*H) | 270*190*120mm |
| Gross Weight | 900g |
Manufacturer catalogue checked 2026-09-28.
