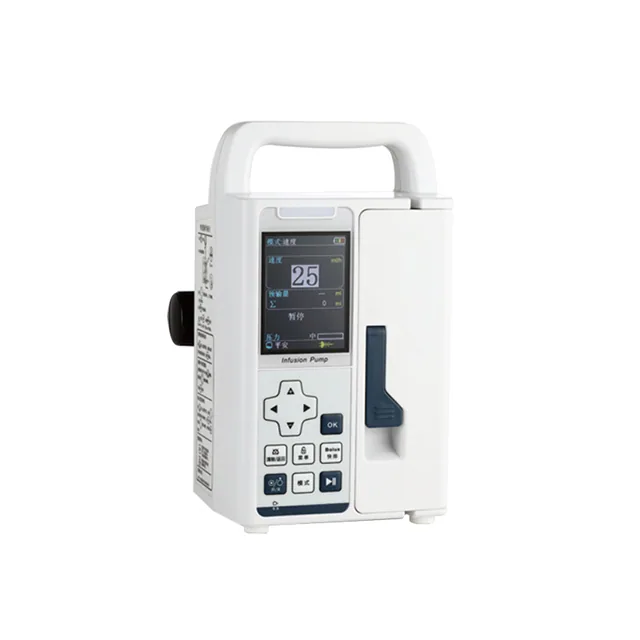

Brand: BIOBASE | Category: Medical Equipment
BIOBASE Infusion Pump is listed in VVON's patient monitoring & critical care range for Bangladesh. Published models: DPfusion VP1, DPfusion VP3. Confirm the intended care setting, functions, accessories and operator training needs. For a quotation, send the care setting, patient group, required functions and accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DPfusion VP1 | DPfusion VP3 |
|---|---|---|
| Fit IV Tubes | Can be used with any brand IV set after exactly calibration | Can be used with any brand IV set after exactly calibration |
| Pump Type | Peristaltic finger pump | Peristaltic finger pump |
| Accuracy | ±2% | ±2% |
| Delivery Rate Range | 0.1ml/h～1200ml/h (0.1ml/h～99.9ml/h, 0.1ml/h step; >99.9ml/h, 1ml/h step) | 0.1ml/h～1200ml/h (0.1ml/h～99.9ml/h, 0.1ml/h step; >99.9ml/h, 1ml/h step) |
| Delivery Time Range | 00h01min～99h59min (1 min step) | 00h01min～99h59min (1 min step) |
| Volume Limit Range | 0.0-9999ml (1 ml step) | 0.0-9999ml (1 ml step) |
| Total Volume Range | 0.0-9999ml (1 ml step) | 0.0-9999ml (1 ml step) |
| Purge Rate | 600.0ml/h (Adjustable) | 600.0ml/h (Adjustable) |
| KVO Rate | 0.1~5.0ml/h. Programmable and adjustable | 0.1~5.0ml/h. Programmable and adjustable |
| Occlusion Pressure | LOW：60（±15）kPa, MEDIUM: 90（±15）kPa or HIGH: 120（±15）kPa (Programmable and adjustable) | LOW：60（±15）kPa, MEDIUM: 90（±15）kPa or HIGH: 120（±15）kPa (Programmable and adjustable) |
| Alarms | Rate Abnormal，Door Open，Air-in-Line，Occlusion，Bottle Empty，Battery Empty，No Battery，Key Holding During Infusion/ Pause，Infusion Complete，No Action，Battery Low Three levels of alarm volume LOW, MEDIUM or HIGH | Rate Abnormal，Door Open，Air-in-Line，Occlusion，Bottle Empty，Battery Empty，No Battery，Key Holding During Infusion/ Pause，Infusion Complete，No Action，Battery Low Three levels of alarm volume LOW, MEDIUM or HIGH |
| Dose Mode | Volume：0.1-999.9ml(0.1ml step); DRUG MASS：0.1-999.9mg 0.1mg step); DOSE：0.001-9999ug/kg/min(0.001ug/kg/min step); WEIGHT：0.1-300kg(0.1kg the least step) Dose unit: ng/kg/min, ug/kg/min, mg/kg/min, g/kg/min, ug/kg/h,mg/kg/h, g/kg/h,ug/min,mg/min,g/min,ug/h,mg/h,g/h,U/min,U/h,IU/h,U/kg/h,ml/h | Volume：0.1-999.9ml(0.1ml step); DRUG MASS：0.1-999.9mg 0.1mg step); DOSE：0.001-9999ug/kg/min(0.001ug/kg/min step); WEIGHT：0.1-300kg(0.1kg the least step) Dose unit: ng/kg/min, ug/kg/min, mg/kg/min, g/kg/min, ug/kg/h,mg/kg/h, g/kg/h,ug/min,mg/min,g/min,ug/h,mg/h,g/h,U/min,U/h,IU/h,U/kg/h,ml/h |
| Bolus Function | Bolus rate:1.0~1200ml/h,Bolus volume:1.0~100ml Programmable and adjustable, Automatic/Manual bolus available | Bolus rate:1.0~1200ml/h,Bolus volume:1.0~100ml Programmable and adjustable, Automatic/Manual bolus available |
| Drug Library Mode | 10 categories of drugs, amounts to 1030 kinds of drug names, 17kinds of dose units, such as ug/kg/min, mg/kg/min,etc. Makes drug dispensing more convenient and safer. (Optional) (Only for VP3) | 10 categories of drugs, amounts to 1030 kinds of drug names, 17kinds of dose units, such as ug/kg/min, mg/kg/min,etc. Makes drug dispensing more convenient and safer. (Optional) (Only for VP3) |
| Sequential Mode | / | / |
| Interface | RS-232 | RS-232 |
| Brightness | 1~10 levels can be selected | 1~10 levels can be selected |
| History Records | 2000 events stored can be checked and downloaded | 2000 events stored can be checked and downloaded |
| Power Supply | AC power supply: AC 100 to 240V( +/-10%)，50/60Hz; DC Power supply: 12~15V, power>15W; Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh. 8 hours of continuous operation | AC power supply: AC 100 to 240V( +/-10%)，50/60Hz; DC Power supply: 12~15V, power>15W; Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh. 8 hours of continuous operation |
| Accessories: | AC power line, Operational manual | AC power line, Operational manual |
| Protection Class | Class I, Type CF,IPX4 | Class I, Type CF,IPX4 |
| Dimension | 215*100*120mm | 215*100*120mm |
| N.W | 1.7kg | 1.7kg |
| Packing Size | 250*190*155mm | 250*190*155mm |
| G.W | 2.5KG | 2.5KG |
Manufacturer catalogue checked 2026-09-28.
