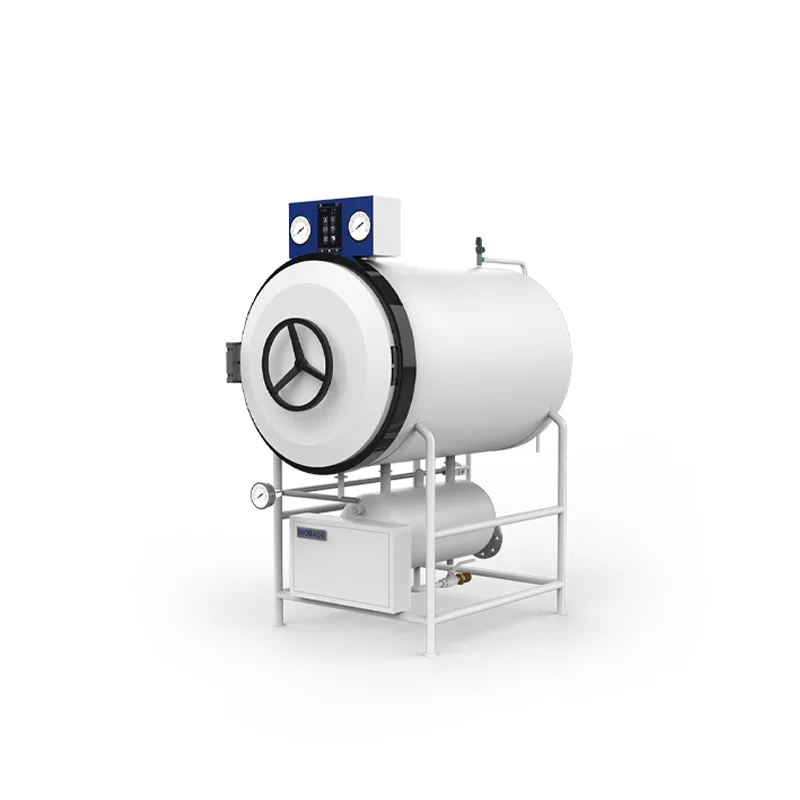

BIOBASE Horizontal Cylindrical Pressure Autoclave BKQ-H150 BKQ-H200 BKQ-H300 BKQ-H400
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Horizontal Cylindrical Pressure Autoclave BKQ-H150 BKQ-H200 BKQ-H300 BKQ-H400 is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BKQ-H150, BKQ-H200, BKQ-H300, BKQ-H400. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKQ-H150 | BKQ-H200 | BKQ-H200 | BKQ-H300 | BKQ-H400 |
|---|---|---|---|---|---|
| Capacity | 150L | 200L | 200L | 300L | 400L |
| Designed Pressure | 0.28MPa | 0.28MPa | 0.28MPa | 0.28MPa | 0.28MPa |
| Built-in Steam Generator | Yes | Yes | Yes | Yes | Yes |
| Rated Working Pressure | 0.12MPa/0.23MPa | 0.12MPa/0.23MPa | 0.12MPa/0.23MPa | 0.12MPa/0.23MPa | 0.12MPa/0.23MPa |
| Rated Operating Temperature | 121℃/134℃ | 121℃/134℃ | 121℃/134℃ | 121℃/134℃ | 121℃/134℃ |
| Ambient Temp. | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ |
| Adjustable Drying Temperature Range | 115~134℃ | 115~134℃ | 115~134℃ | 115~134℃ | 115~134℃ |
| Temp. Precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Sterilization Timing Adjustable Range | 1~99min | 1~99min | 1~99min | 1~99min | 1~99min |
| Adjustable Drying Timing Range | 1~99min | 1~99min | 1~99min | 1~99min | 1~99min |
| Vacuum System | No | No | No | No | No |
| Chamber Material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Chamber Size | Ф500*820mm | Ф500*1050mm | Ф500*1050mm | Φ650*935mm | Ф650*1235mm |
| Altitude | ≤2500m | ≤2500m | ≤2500m | ≤2500m | ≤2500m |
| Standard Accessories | Net rack*1, Net lid*1 | Net rack*1, Net lid*1 | Net rack*1, Net lid*1 | Net rack*1, Net lid*1 | Net rack*1, Net lid*1 |
| Consumption | 10KW | 10KW | 15KW | 15KW | 15KW |
| Power Supply | AC380V, 50/60Hz; AC220V, 50/60Hz(Three phase); AC220V, 50/60Hz(Note: Be careful when ordering this voltage,the current is close to 75A) Wiring method：Air switch | AC380V, 50/60Hz; AC220V, 50/60Hz(Three phase); AC220V, 50/60Hz(Note: Be careful when ordering this voltage,the current is close to 75A) Wiring method：Air switch | AC380V, 50/60Hz; AC220V, 50/60Hz(Three phase); AC220V, 50/60Hz(Note: Be careful when ordering this voltage,the current is close to 75A) Wiring method：Air switch | AC380V, 50/60Hz; AC220V, 50/60Hz(Three phase); AC220V, 50/60Hz(Note: Be careful when ordering this voltage,the current is close to 75A) Wiring method：Air switch | AC380V, 50/60Hz; AC220V, 50/60Hz(Three phase); AC220V, 50/60Hz(Note: Be careful when ordering this voltage,the current is close to 75A) Wiring method：Air switch |
| External Size(W*D*H) | 680*1270*1550mm | 680*1500*1550mm | 680*1500*1550mm | 815*1550*1750mm | 815*1850*1750mm |
| Net Weight | 230kg | 250kg | 250kg | 340kg | 385kg |
| Package Size(W*D*H) | 820*1500*1910mm | 820*1730*1910mm | 820*1730*1910mm | 950*1750*2030mm | 950*2000*2030mm |
| Gross Weight | 320kg | 355kg | 355kg | 475kg | 535kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
